Assembly drawings/dimension sheets
9.5 1FN3600
1FN3 linear motors
550 Configuration Manual, 10/2018, 6SN1197-0AB86-0BP2

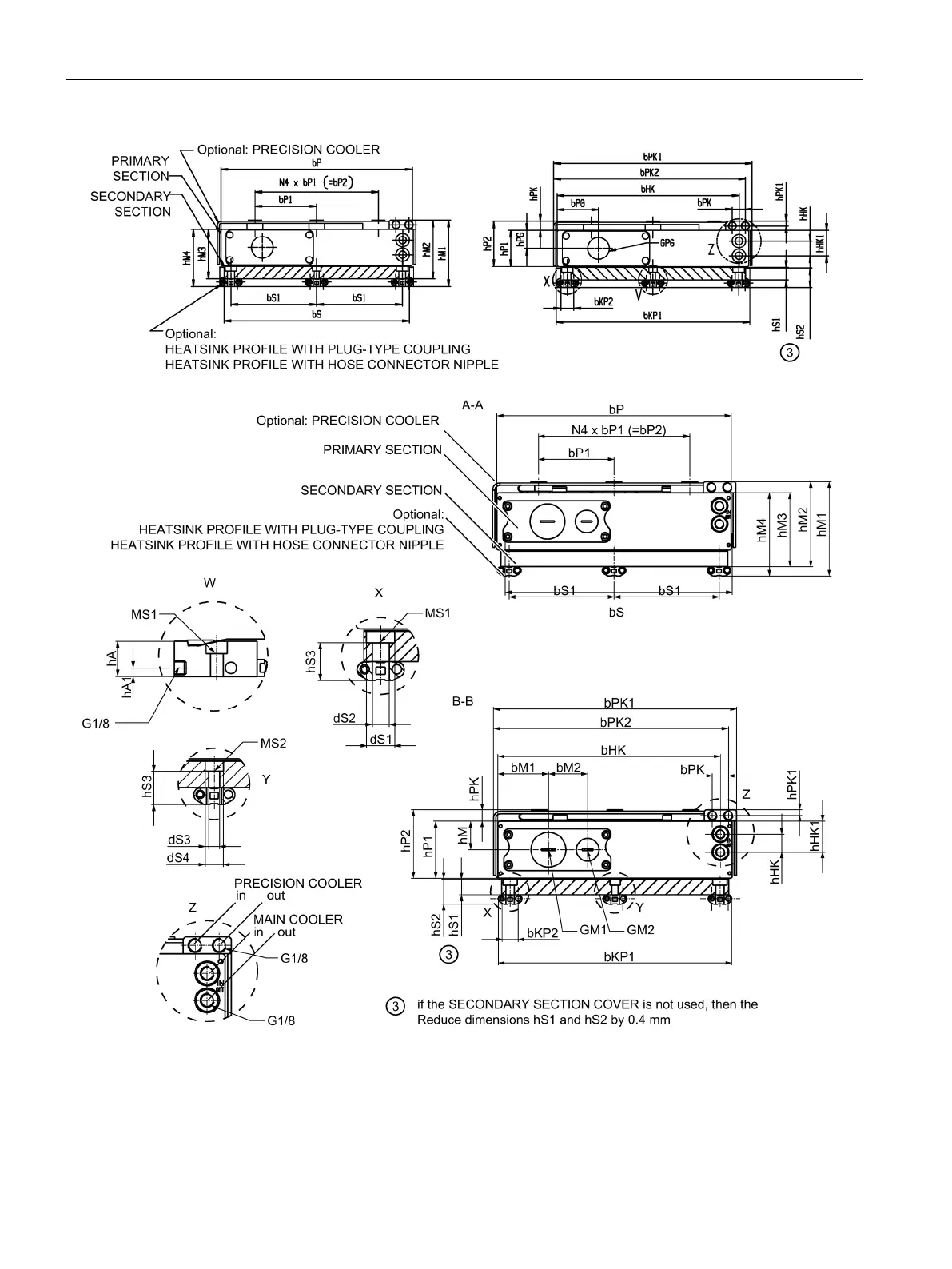

Figure 9-25 Installation diagram of the motor 1FN3600 (cross sections and details)
