Assembly drawings/dimension sheets
9.6 1FN3900
1FN3 linear motors
560 Configuration Manual, 10/2018, 6SN1197-0AB86-0BP2

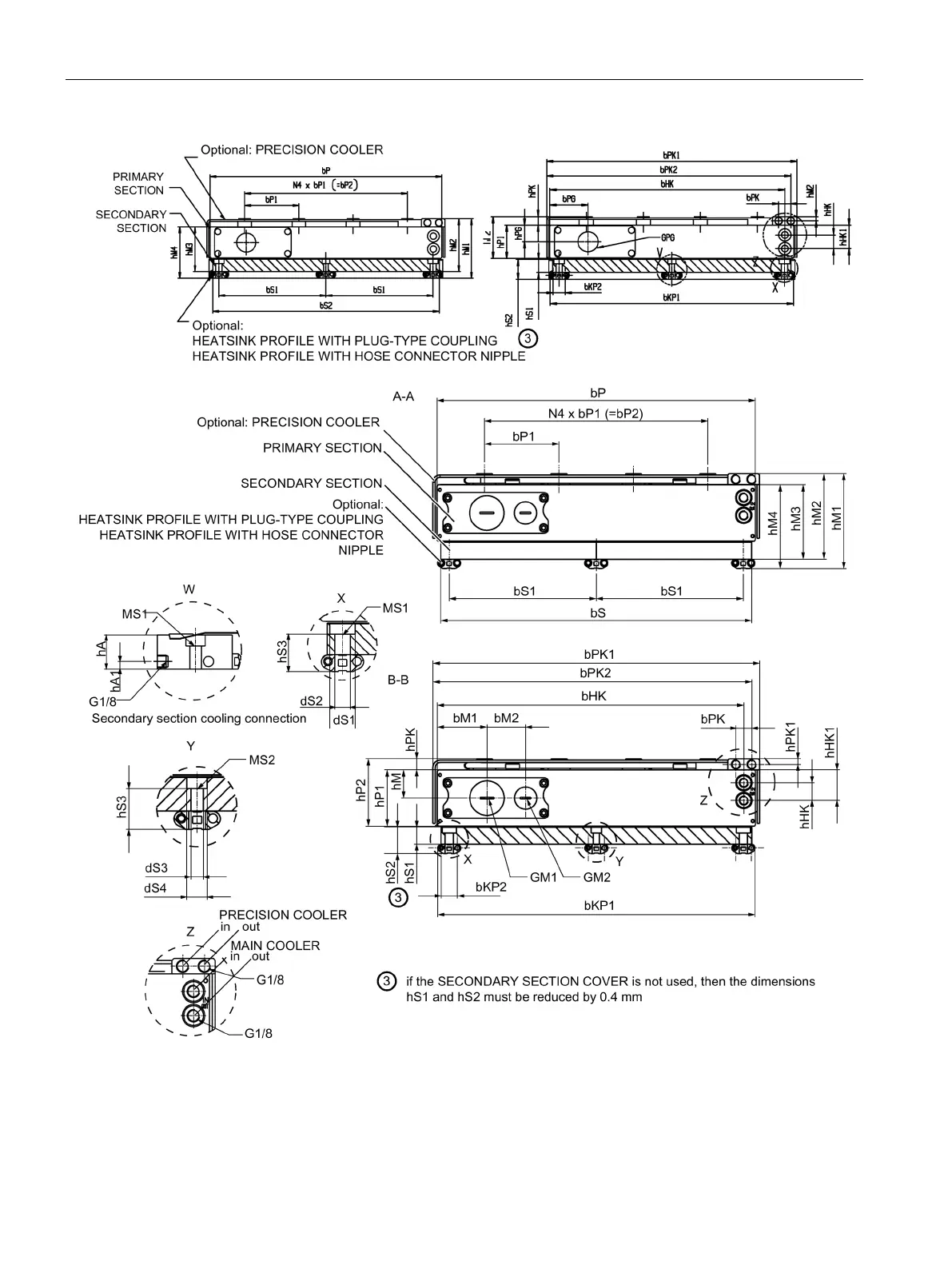

Figure 9-33 Installation diagram of the motor 1FN3900 (cross sections and details)
