Assembly drawings/dimension sheets
9.6 1FN3900
1FN3 linear motors
Configuration Manual, 10/2018, 6SN1197-0AB86-0BP2
567

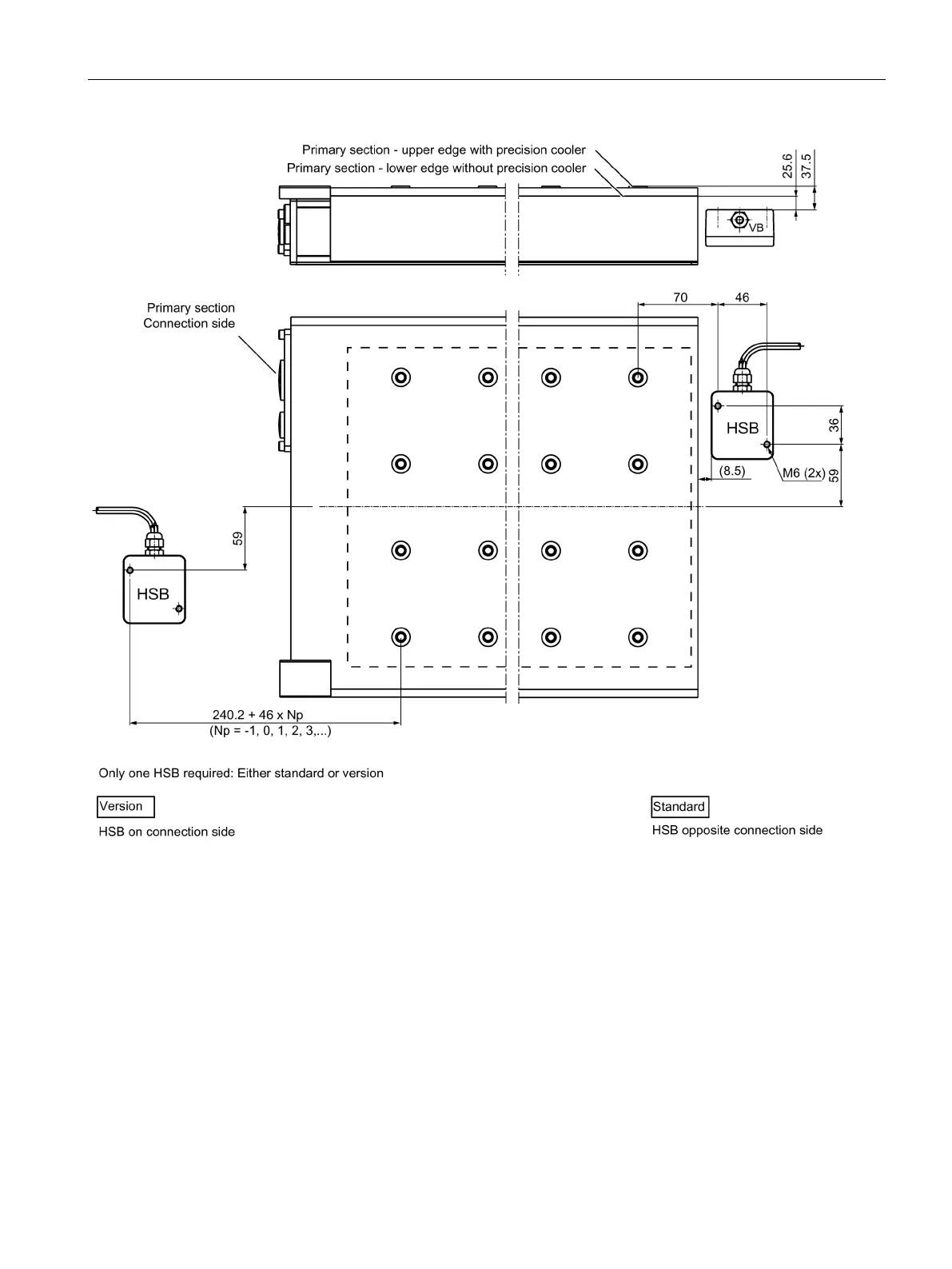

Figure 9-37 Mounting the Hall sensor box (HSB) with lateral cable outlet for 1FN3900-xN motors
