Coupled motors
10.3 Connection examples for parallel operation
1FN3 linear motors
584 Configuration Manual, 10/2018, 6SN1197-0AB86-0BP2

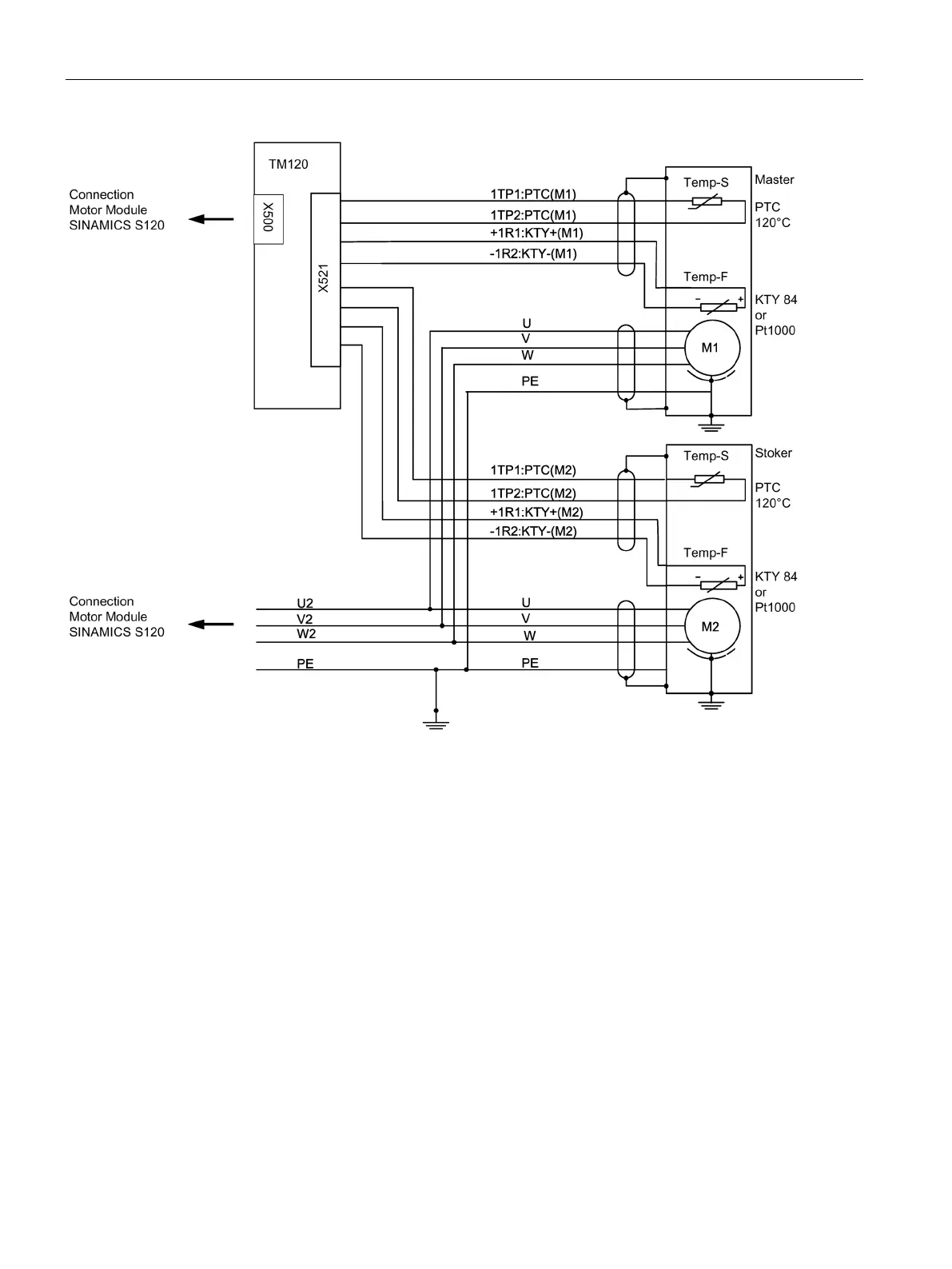

Figure 10-2 Connecting the PTC 120 °C via TM120
