Mechanical properties
3.1 Cooling
1FN3 linear motors
64 Configuration Manual, 10/2018, 6SN1197-0AB86-0BP2

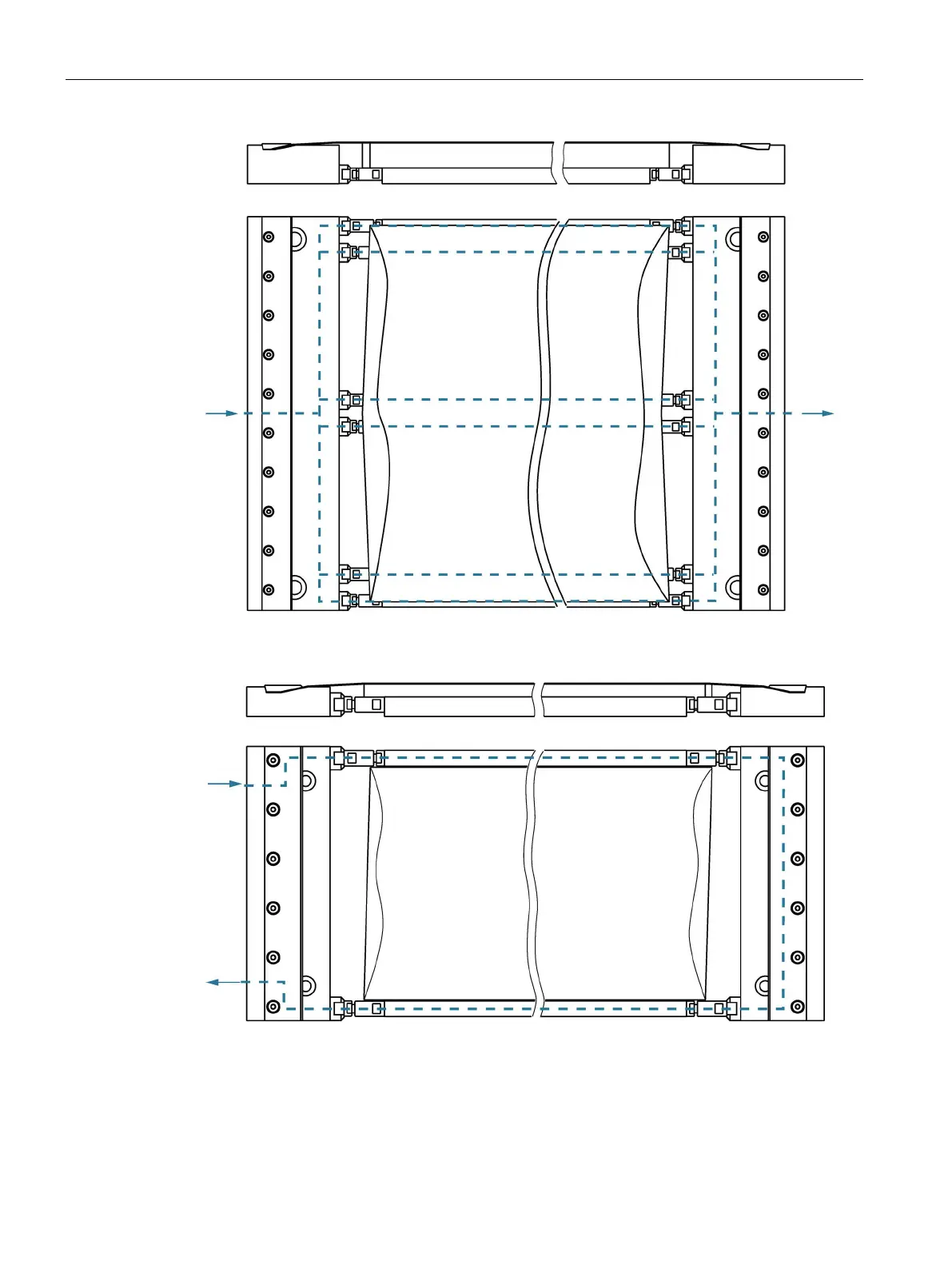

Figure 3-5 Secondary section cooling for motors of sizes 1FN3600 and 1FN3900 with combi
distributors (side and top view)
Figure 3-6 Secondary section cooling for motors of sizes 1FN3050 ... 1FN3450 with combi adapter
and combi end piece (side and top view)
