Detailed Description
2.9 Mode group, channel, program operation, reset response (K1)
NC/PLC Interface Signals (Z1)
2-98 Function Manual, 08/2005 Edition, 6FC5397-0BP10-0BA0
DB21, ...

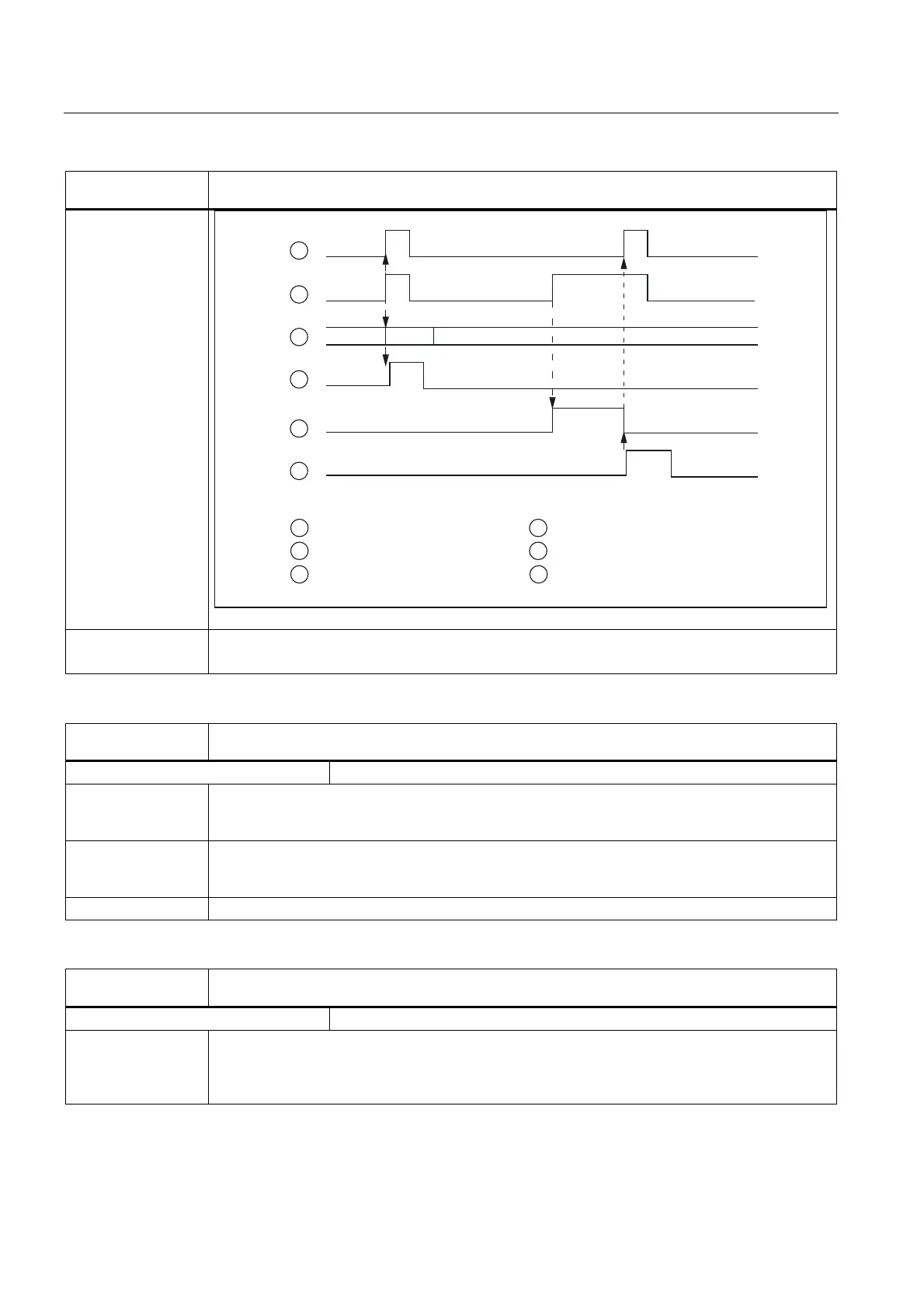

DBX32.5 M00/M01 active
Fig.












0
,6&KDQQHOVWDWHDFWLYHHYHQZKHQ
D[HVDUHPRYHGLQ-2*PRGH
0FKDQJHVLJQDO3/&F\FOHWLPH
,600DFWLYH
1&EORFNZLWK0
%ORFNSURFHVVHG
'DWDWUDQVIHUWRZRUNLQJPHPRU\
Corresponds to .... DB21, ... DBX0.5 (activate M01)
DB21, ... DBX24.5 (M01 selected)
DB21, ...
DBX32.6 Last action block active
Edge evaluation: no Signal(s) updated: cyclic
Signal state 1 or
edge change
0 → 1
The last action block is being executed.
Signal state 0 or
edge change
1 → 0
The last action block is not being executed.
Further references /BA/ Operator's Guide
DB21, ...
DBX33.4 Block search active
Edge evaluation: no Signal(s) updated: cyclic
Signal state 1 or
edge change
0 → 1
The block search function is active.
It was selected from the operator interface screen and started using the interface signal:
DB21, ... DBX7.1 (NC start)
