4.4 Knee-shaped acceleration characteristic curve
Acceleration (B2)
Function Manual, 08/2005 Edition, 6FC5397-0BP10-0BA0
4-5
$[LVYHORFLW\
0'0$;B$&&(/B29/B)$&725>;@
0'3$7+B75$16B-(5.B/,0>;@
0$;B$;B$&&(/>;@62)7B$&&(/B)$&725>;@
$[LVDFFHOHUDWLRQ
0'0$;B$;B-(5.>;@
1111

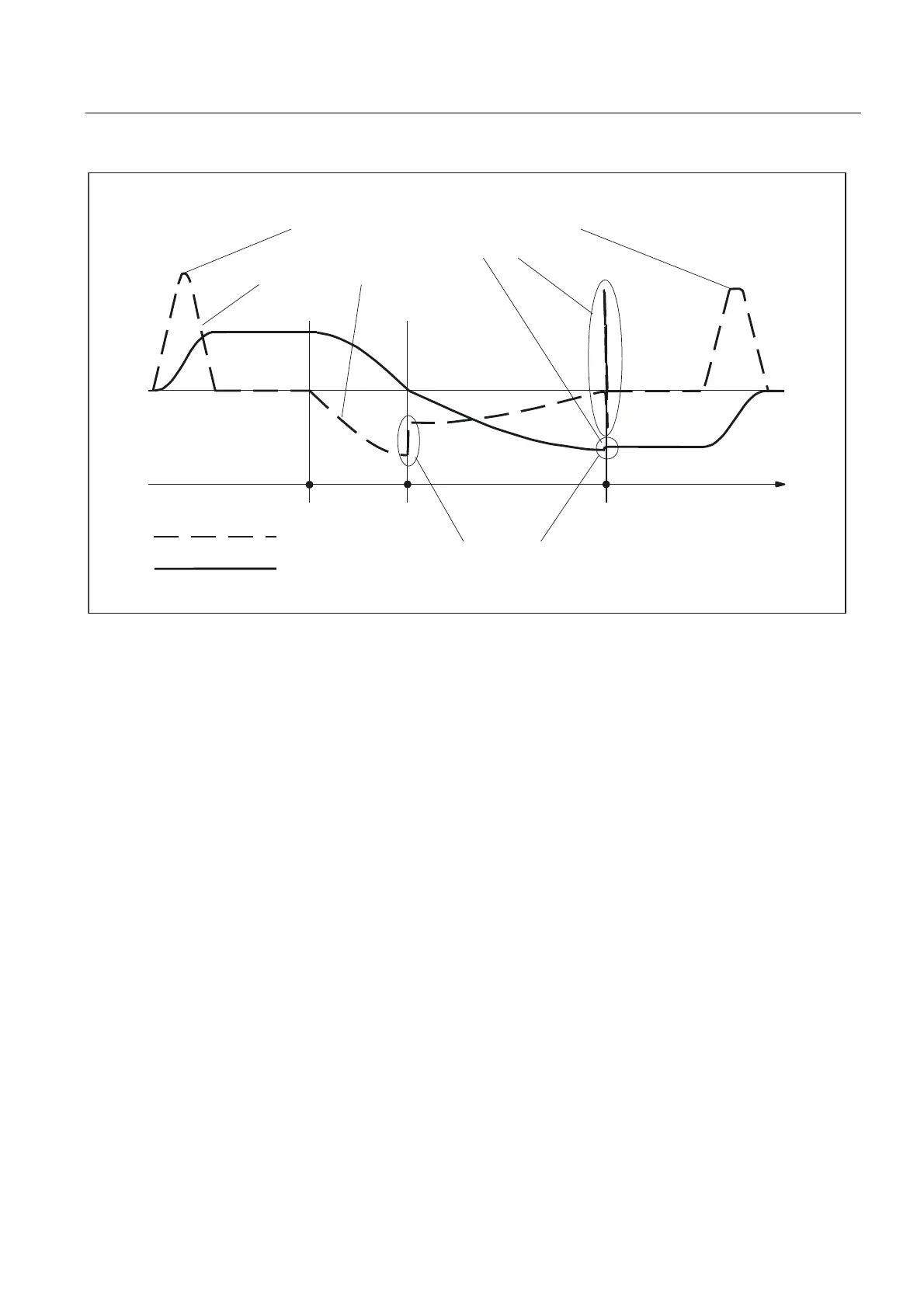

Fig. 4-4 X axis: Velocity and acceleration characteristic
4.4 4.4 Knee-shaped acceleration characteristic curve
4.4.1 Activation
Key statement
The example given illustrates how the knee-shaped acceleration characteristic curve is
activated on the basis of:
• Machine data
• Part program instruction
