Siemens SINUMERIK 840DE SL Function Manual

Transverse Axes (P1)
Function Manual, 08/2005 Edition, 6FC5397-0BP10-0BA0
2-1
Detailed Description
2
2.1 2.1 Defining a geometry axis as transverse axis
Transverse axis
Within the framework of "milling" technology, the transverse axis refers to the machine axis
that travels perpendicular to the axis of symmetry of the spindle, in other words, to
longitudinal axis Z.
;
:
0
=
7UDQVYHUVHD[LV
/RQJLWXGLQDOD[LV

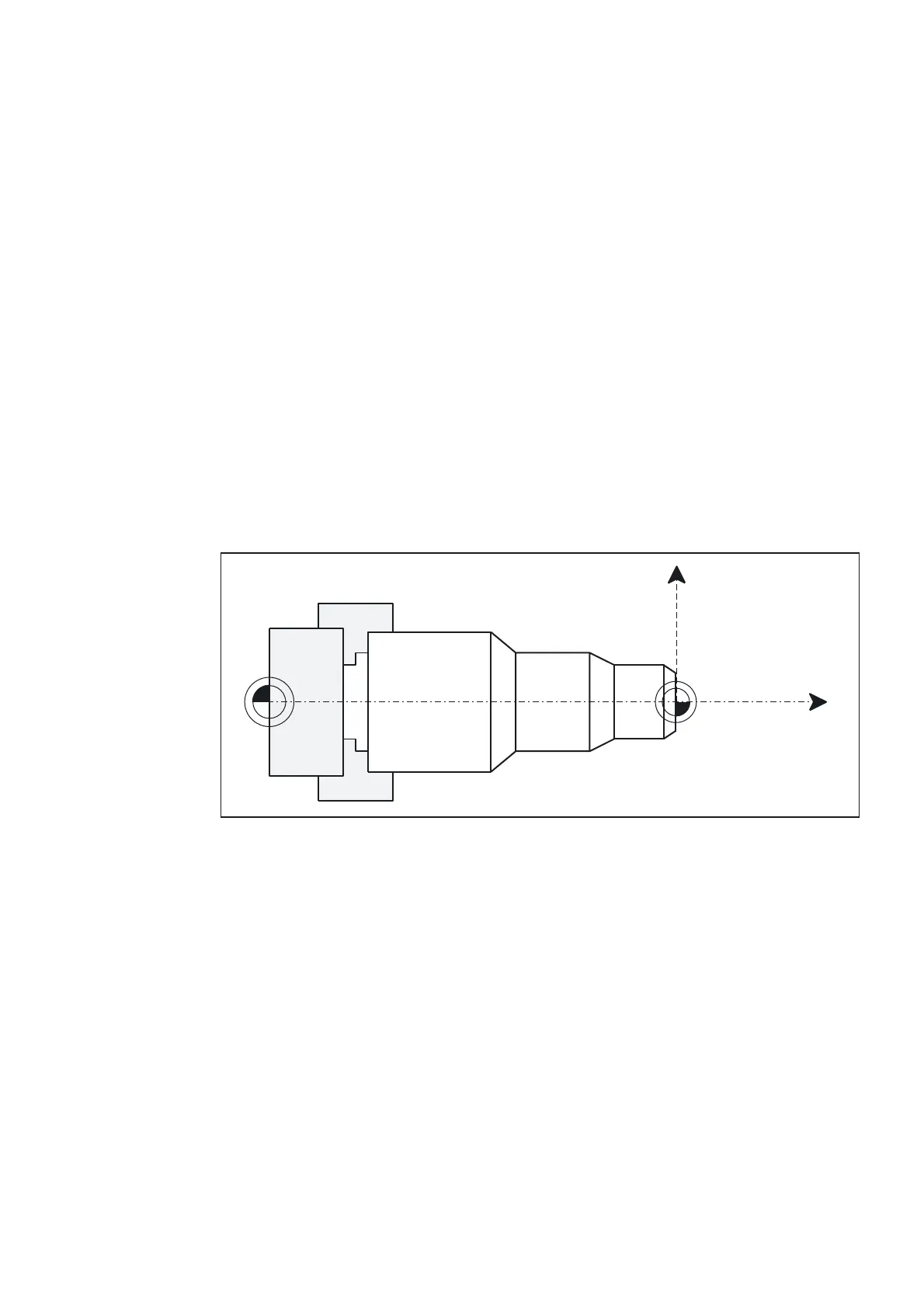

Fig. 2-1 Position of the transverse axis in the machine coordinate system
Definition
A geometry axis is defined as a transverse axis with:
MD20100 $MC_DIAMETER_AX_DEF (geometry axis as transverse axis function)
Restrictions
However, only exactly one geometry axis can be defined as transverse axis per channel.
