Siemens SINUMERIK 840DE SL - 2.3.8 Workpiece coordinate system (WCS)

Detailed Description
2.3 Coordinate systems
Axis Types, Coordinate Systems, Frames (K2)
Function Manual, 08/2005 Edition, 6FC5397-0BP10-0BA0
2-37
2.3.8 Workpiece coordinate system (WCS)
WCS
The workpiece coordinate system (WCS) is the programming basis.
;
=
<
;
<
=
6HWWDEOH]HURV\VWHP6=6
:RUNSLHFHFRRUGLQDWHV\VWHP:&6
3URJUDPPDEOH)5$0(
ZLWKB3B3)5$0(

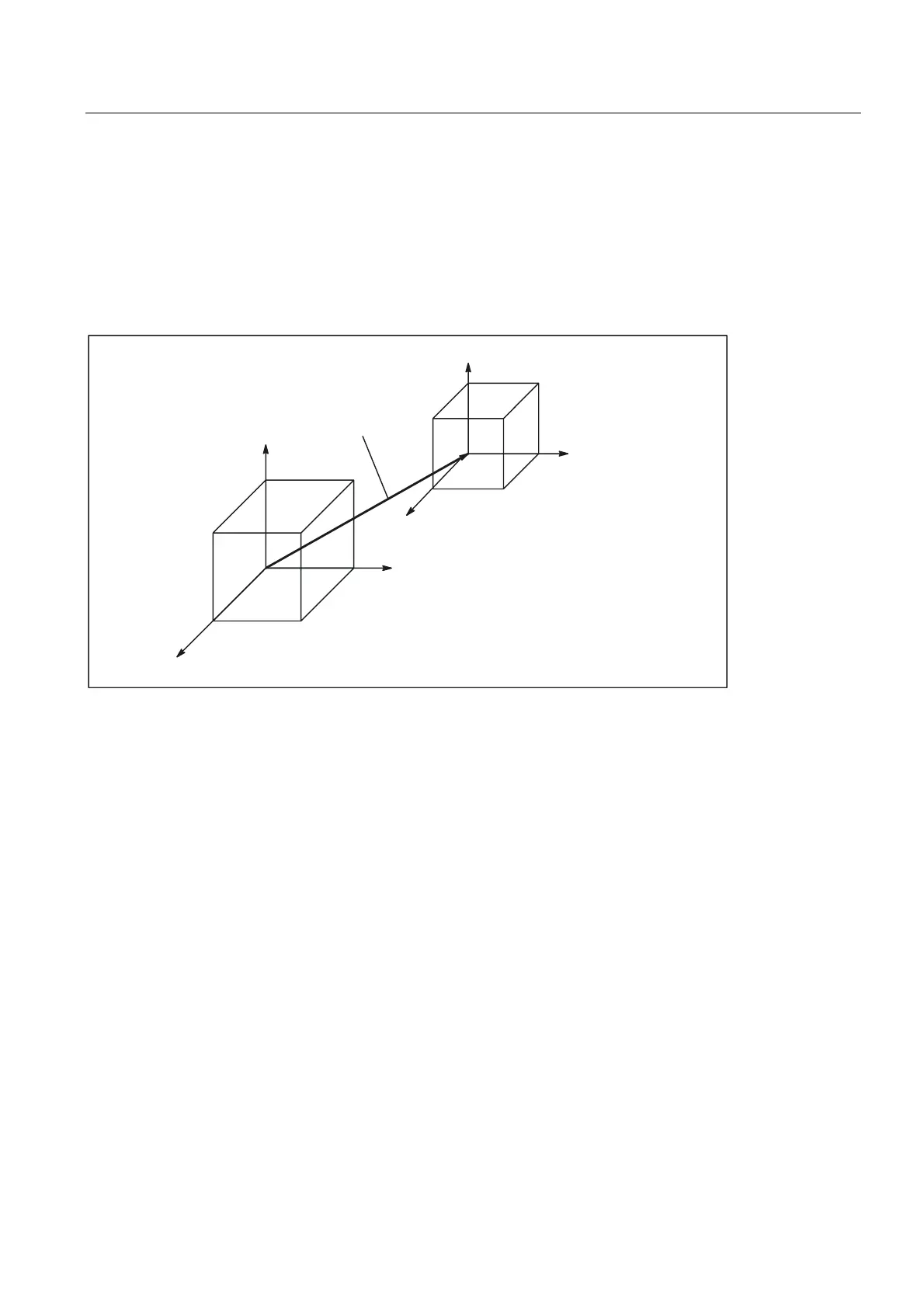

Fig. 2-24 Programmable FRAME between SZS and WCS
