The following is the main program:
N10 T1 D1 G0 G95 S500 M3 Z125 X81
; Approach position before cycle call
N20 CYCLE95("CONTOUR_1", 5, 1.2, 0.6, , 0.2, 0.1, 0.2, 9, ,
, 0.5)
; Cycle call
N30 G0 G90 X81
;Reapproach starting position
N40 Z125
; Traverse axis by axis
N50 M2
; End of program
The following is the subprogram:

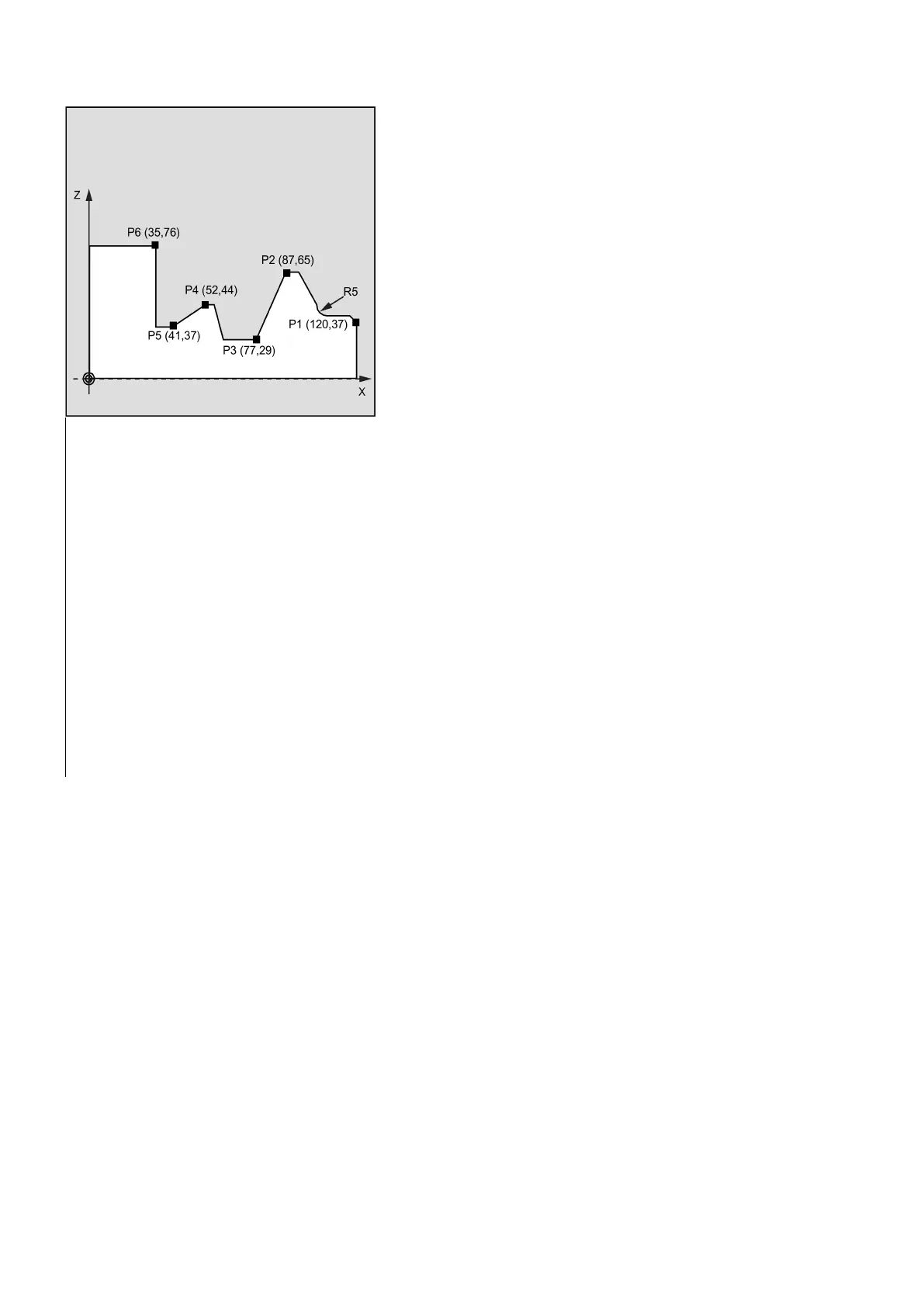

CONTOUR_1.SPF ;Subroutine for contour turning (for
example)
N100 Z120 X37
N110 Z117 X40
; Traverse axis by axis
N120 Z112 RND=5
;Rounding with radius 5
N130 Z95 X65
N140 Z87
N150 Z77 X29
N160 Z62
N170 Z58 X44
N180 Z52
N190 Z41 X37
N200 Z35
N210 X76
; Traverse axis by axis
N220 M02
; End of subroutine
Programming example 2: Stock removal cycle
The stock removal contour is defined in the calling program and is traversed directly after the cycle for finishing has been
called.
