Siemens SINUMERIK

Programming and Operating Manual (Turning)
01/2017
197
N110 G18 DIAMOF G90 G96 F0.8
N120 S500 M3
N130 T1 D1
N140 G0 X70
N150 Z160
N160 CYCLE95("START:END",2.5,0.8, 0.8,0,0.8,0.75,0.6,1, , ,
)
; Cycle call
N170 G0 X70 Z160
N175 M02

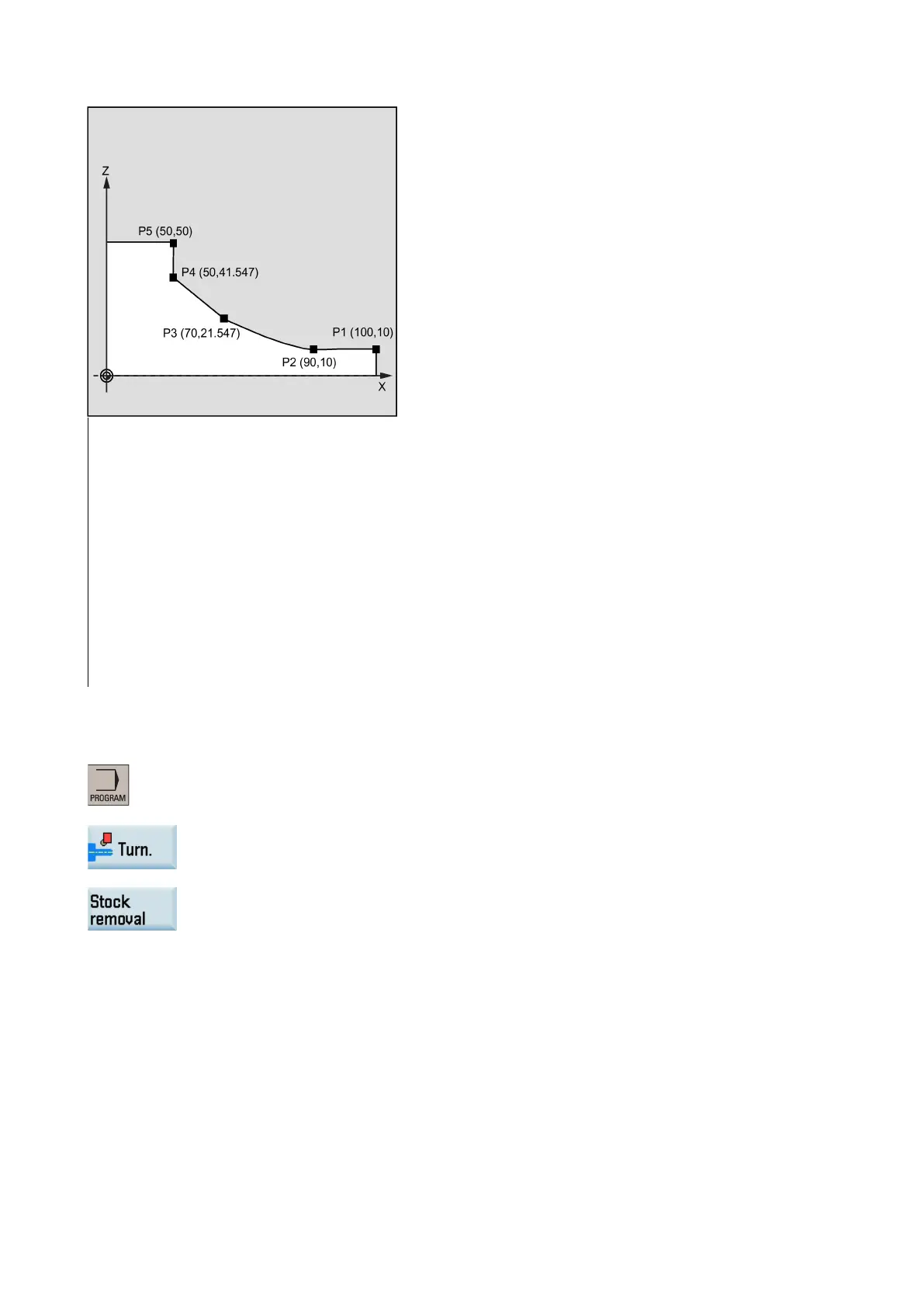

START:
N180 G1 X10 Z100 F0.6
N190 Z90
N200 Z70 ANG=150
N210 Z50 ANG=135
N220 Z50 X50
END:
N230 M02
Programming example 3
Proceed through the following steps:
1.
Select the program editing operating area.
2.
Open the vertical softkey bar for available turning cycles.
3.
Press this softkey to open the window for CYCLE95. Enter a name in the first input field.
