Siemens SINUMERIK User Manual

Programming and Operating Manual (Turning)
220 01/2017
5.

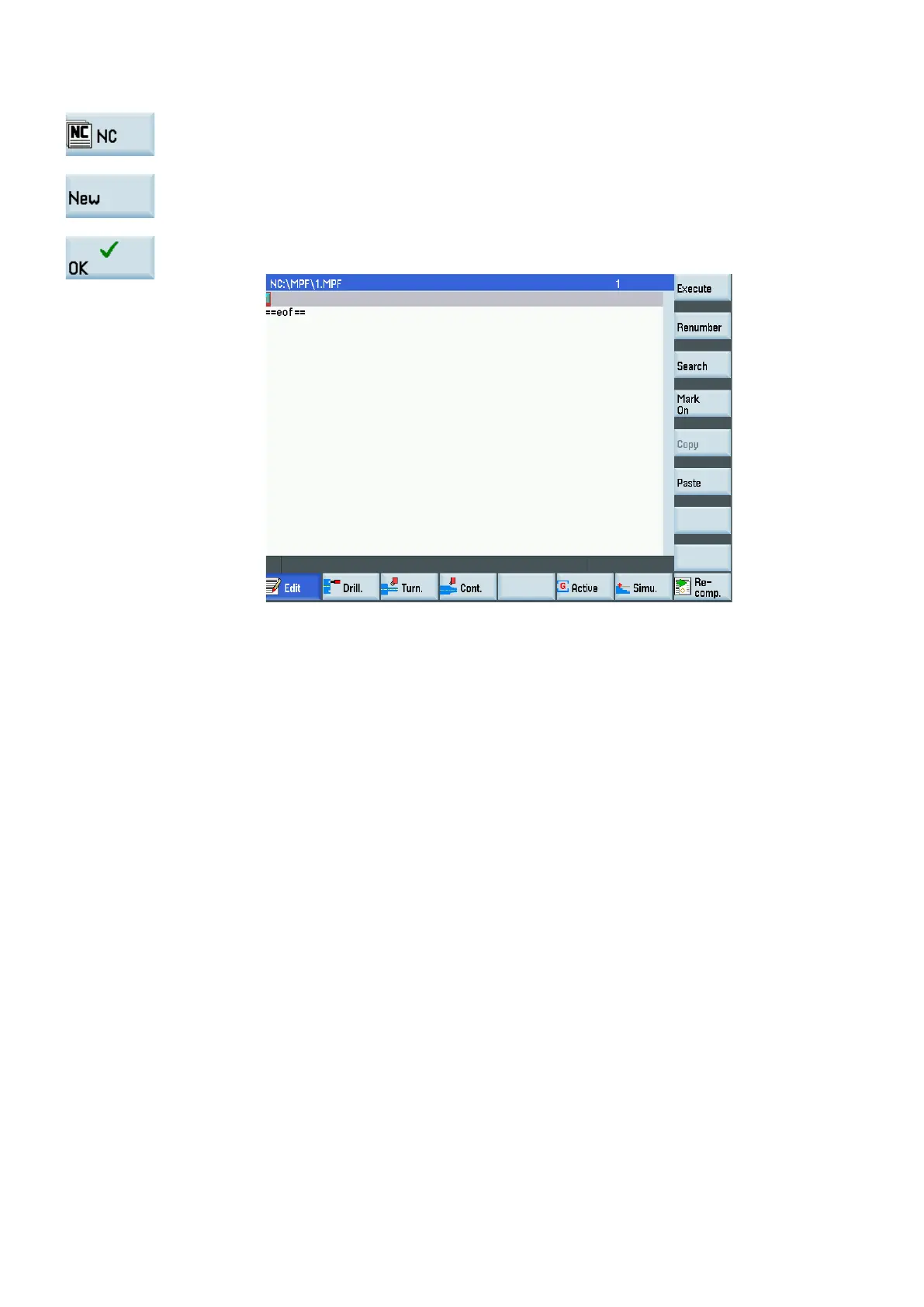

Press this softkey to enter the system directory for storing part programs.
6.
Press this softkey and enter the name of the new program.
7.
Press this softkey to confirm your entry. The part program editor window opens automatica
l-
ly.
8.
Enter the following program:
G291
T0202
G0 X100
Z100
M3 S1000
X46 Z3
G71 U1 R1
G71 P10 Q20 U0.2 W0.1 F0.2
N10 G0 X0 Z3
G1Z0
G3 X33.762 Z
-30.725 R20
G2 X40.704 Z
-56.29 R20
G3 X44 Z
-60 R5
G1 Z
-66
N20 X45
M3 S2000
G70 P10 Q20 F0.1
G0 X100 Z100
M30
Then you can proceed with the operations for "
program simulation and execution
(Page 242)".

Siemens SINUMERIK Specifications

General

Interface	Ethernet, PROFIBUS, PROFINET, USB
Programming Languages	DIN/ISO
Display	TFT color display
Compatibility	Siemens drives and motors
Software	SINUMERIK Operate
Control Unit Type	CNC (Computer Numerical Control)
Safety Functions	Integrated safety functions up to SIL 3/PLe
