8.
Press this softkey to open the program editor window again and enter the program blocks
for the external contour:
G0 Z0 X0
G1 X10 RND=1
Z
-2
Z
-12 X5
Z
-16 X20
Z
-31 X10
Z
-33 X19
Z
-35
X25 RND=3
Z
-40
Z
-48 X15
X19 RND=1
Z
-50
Z
-54 X15
Z
-60
Z
-70 X24
Z
-74
X40 RND=8
Z
-84
Z
-90 X36
Z
-95
X45
Note:
Make sure you enter the blank diameter in the last line of the program for the external co
n-
tour (for example, "X45" in the above program). Besides, the program fo
r the external con-
tour has to be positioned after "M30". For detailed information, see the screenshots of the
complete program at the end of this example.
9.

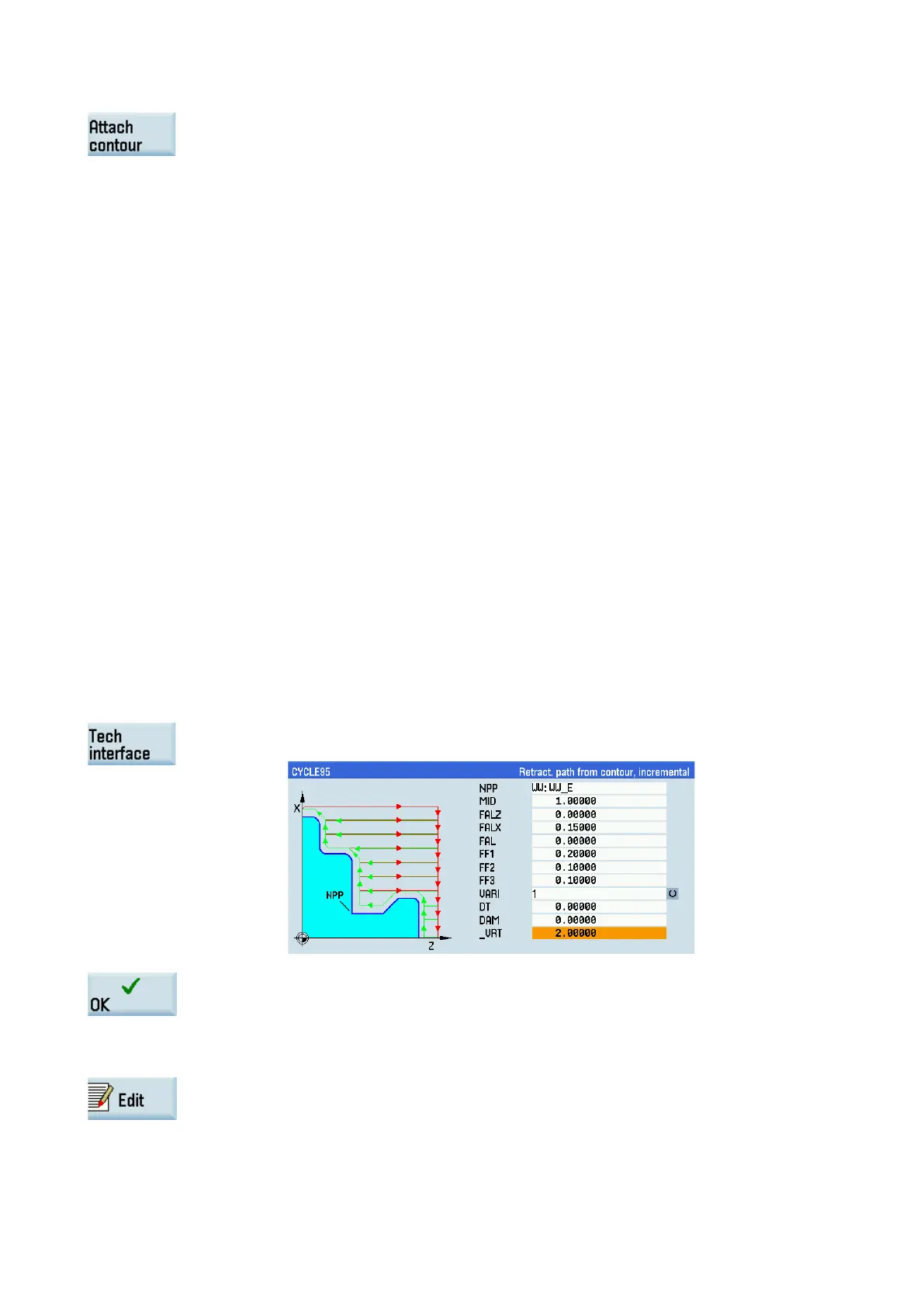

Press this softkey to return to the window for CYCLE95 and enter the desired parameters
as follows:
10.
Press this softkey to confirm your input and open the cycle programming window.
11.
Enter the following program block:
M3 S2000
12.
Press this softkey to return to the program editor wi
ndow.
