Siemens SINUMERIK User Manual

Programming and Operating Manual (Turning)
282 01/2017
5.

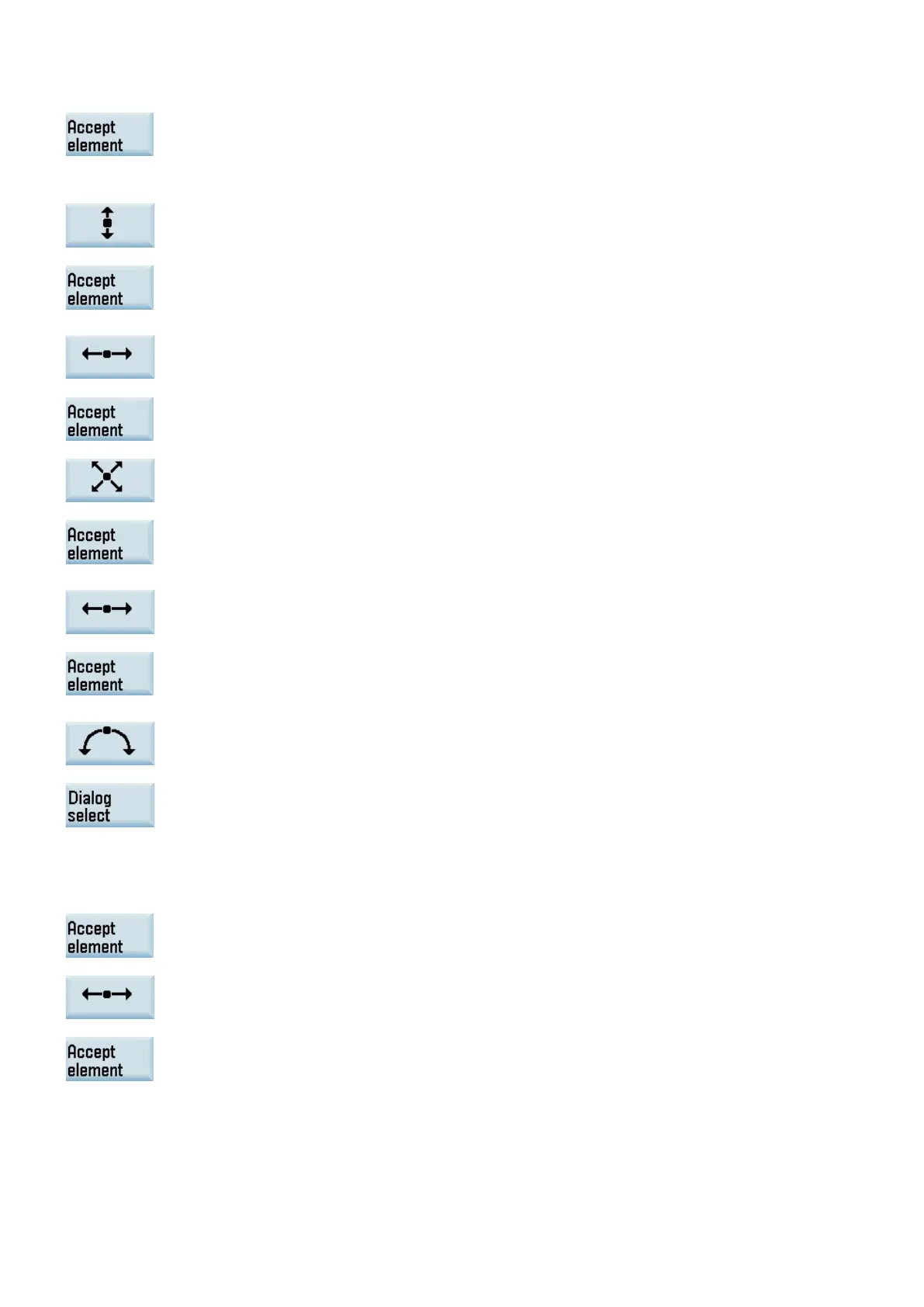

Define a start point with the following parameters and press this softkey to confirm.
•
Programming mode: DIAMOF
•
Z: 0
•
X: 0
6.
Press this softkey to select a contour element of s
traight vertical line.
7.
Enter the parameters f
or this element and press this softkey to confirm.
•
X: 20 inc.
•
CHR: 5*1.1223 = 5.6115
8.
Press this softkey to select a contour element of straight horizontal line.
9.
Enter the parameters for this element and press this softkey to confirm.
•
Z: -25 inc.
10.
Press this softkey to select a contour element of straight line in any direction.
11.
Enter the parameters for this element and press this softkey to confirm.
•
X: 10 inc.
•
Z: -30 inc.
12.
Press this softkey to select a contour element of stra
ight horizontal line.
13.
Enter the parameters f
or this element and press this softkey to confirm.
•
Z: -8 inc.
•
RND: 2
14.
Press this softkey to select a contour element of circular arc.
15.
Enter the parameters for this element and press this softkey to select the desired contour
characteristics.
•
Direction of rotation: counter-clockwise
•
R: 20
•
X: 20 inc
•
Z: -20 inc
16.
Press this softkey to confirm.
17.
Press this softkey to select a contour element of straight horizontal line.
18.
Enter the parameters for this element and press this softkey
to confirm.
•
Z: -20 inc.
•
RND: 2
