Siemens SINUMERIK User Manual

Programming and Operating Manual (Turning)
284 01/2017
4.

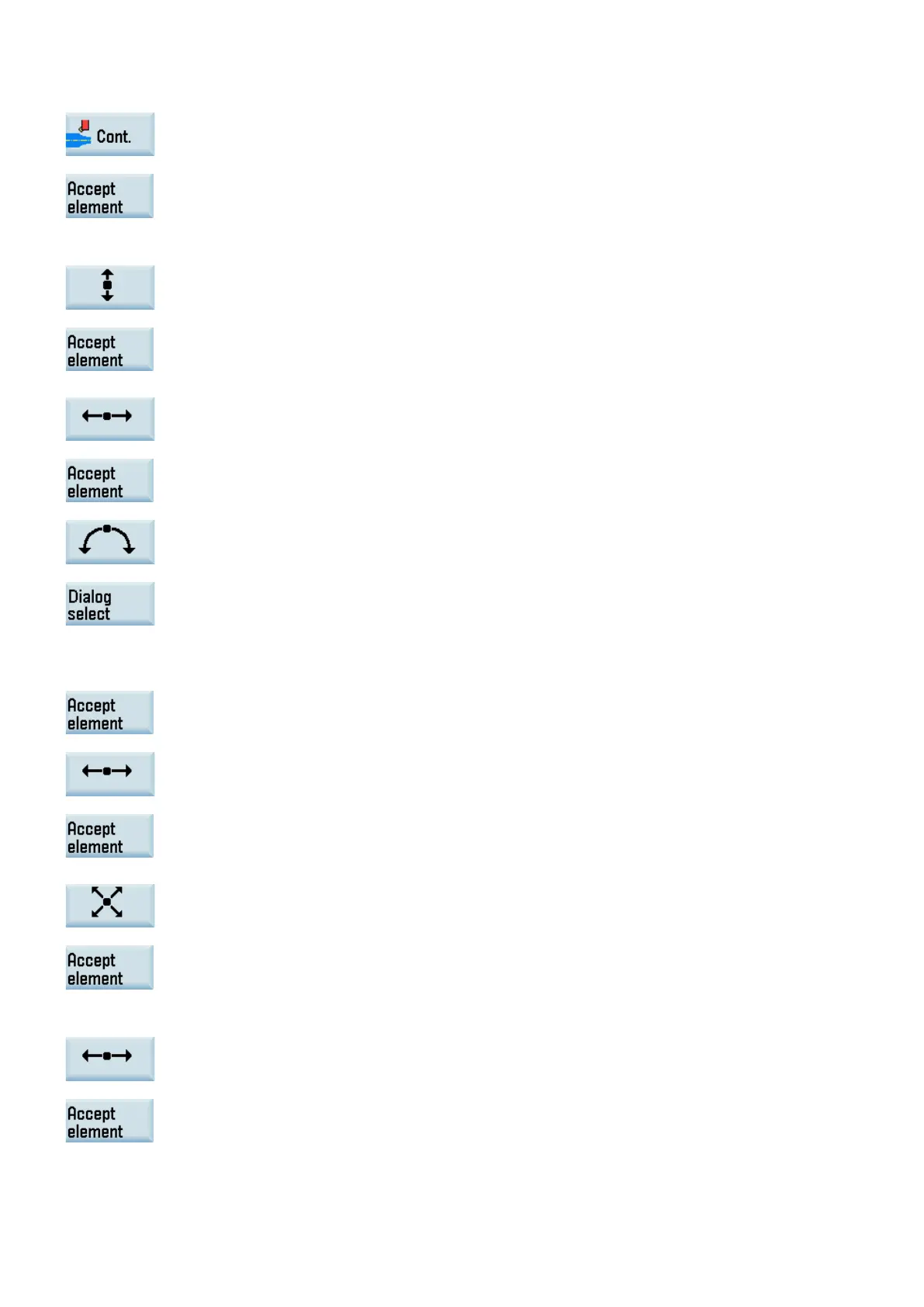

Press this softkey to open the contour edito
r.
5.
Define a start point with the following pa
rameters and press this softkey to confirm.
•
Programming mode: DIAMON
•
Z: 0
•
X: 0
6.
Press this softkey to select a contour element of straight vertical line.
7.
Enter the parameters for this element and press this softkey to confirm.
•
X: 48 abs.
•
CHR: 3
8.
Press this softkey to select a contour element of straight horizontal line.
9.
Enter the parameters for this element and press this softkey to confirm.
•
RND: 4
10.
Press this softkey to select a contour element of circular arc.
11.
Enter the parameters for this element and press this softkey
to select the desired contour
characteristics.
•
R: 23
•
X: 60 abs.
•
Z: -20 abs.
12.
Press this softkey to confirm.
13.
Press this softkey to select a contour element of straight horizontal line.
14.
Enter the parameters for this element and press this softkey to confirm.
•
Z: -75 abs.
•
RND: 6
15.
Press this softkey to select a contour element of straight line in any direction.
16.
Enter the parameters for this element and press this softkey to confirm.
•
X: 90 abs.
•
Z: -80 abs.
•
RND: 4
17.
Press this softkey to select a contour element of straight
horizontal line.
18.
Enter the parameters for th
is element and press this softkey to confirm.
•
Z: -100 abs.
