Siemens SINUMERIK User Manual

Programming and Operating Manual (Turning)
01/2017
57
6.
Press this key to activate or deactivate the entered minimum/maximum values.

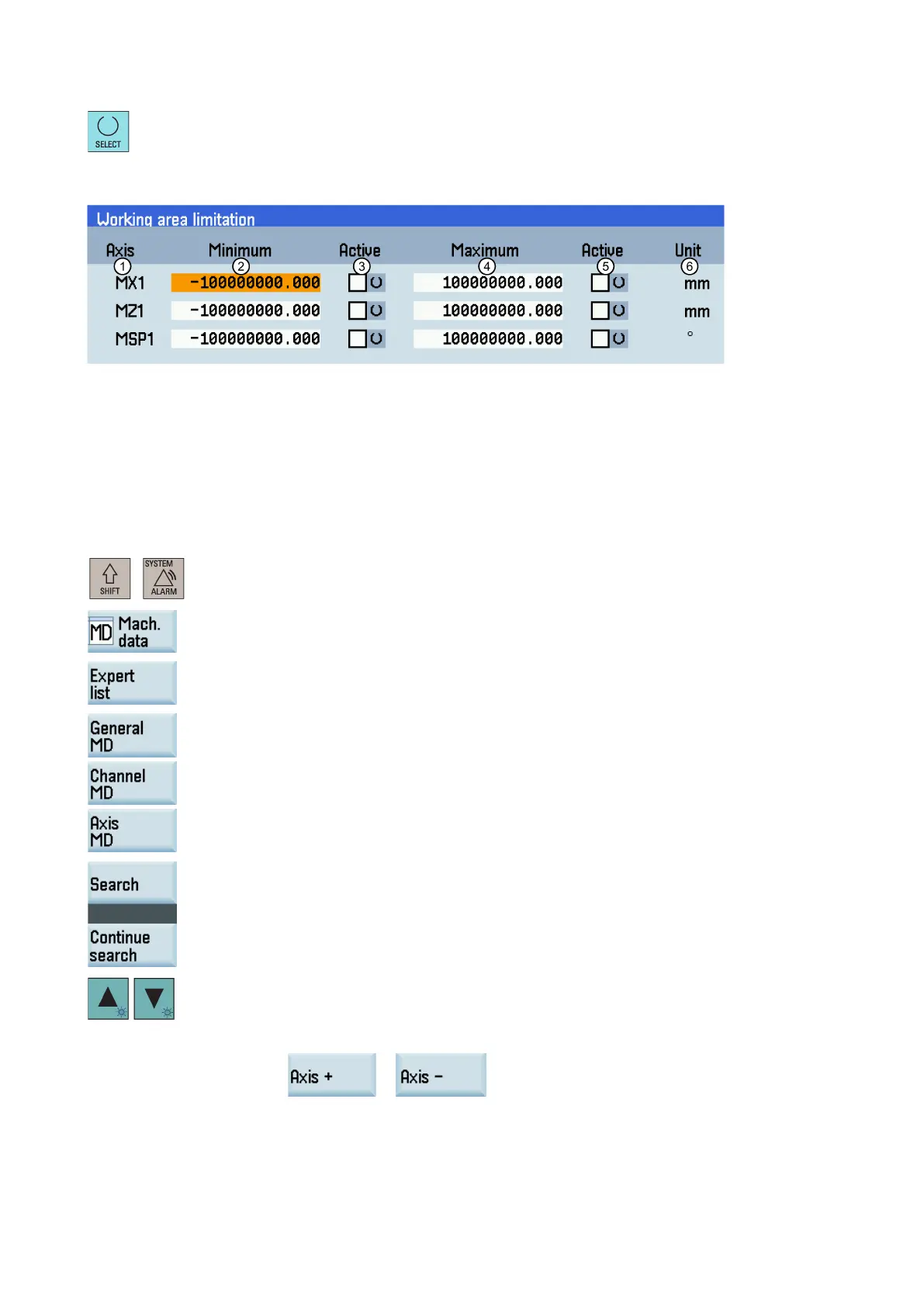

Parameters in the window for working area limitation
①
Displays the axes that exist in the machine coordinate system
(MCS), workpiece coordinate system (WCS), or
relative coordinate system
(REL).
②
/
④
The minimum/maximum traversing distance specified for the axes.
③
/
⑤
Activates or deactivates the entered minimum/maximum values.
⑥
Unit for the traversing distance.
Modifying miscellaneous setting data
Operating sequence
+
1.
Select the system data operating area.
2.
Open the window for machine data.
3.
Open the window for the expert list.
4.
Select a group of setting data you desire to modify.
5.
Use these softkeys to search for your desired setting data with the data nu
mber/name.
Alternatively, you can position the cursor bar in the input fields to be modified and enter the
values.
You can use th
e following softkeys to switch to the desired axis when modifying the axis-
specific setting data.

Siemens SINUMERIK Specifications

General

Interface	Ethernet, PROFIBUS, PROFINET, USB
Programming Languages	DIN/ISO
Display	TFT color display
Compatibility	Siemens drives and motors
Software	SINUMERIK Operate
Control Unit Type	CNC (Computer Numerical Control)
Safety Functions	Integrated safety functions up to SIL 3/PLe
