Siemens SIREMOBIL Iso-C 3D - Cabling, Basic Unit

SIREMOBIL Iso-C 3D SPR2-230.814.01 Page 4 of 14 Siemens AG
Rev. 05 08.04 CS PS 24 Medical Solutions
2 - 4 Actions up to serial number 1408
Cabling, basic unit 2
• Remove the cable cover (Fig. 6).
• Remove the base plate as well (Fig. 7).
• Mark the cables with a pen (Fig. 8) so that you are able to set the exact cable length later
on.
• Take off the cable support at the beam entry (Fig. 8).
• Take off the tape (Fig. 8).
• Remove the upper cable support (Fig. 9).
• Move the lifting column into the top position.

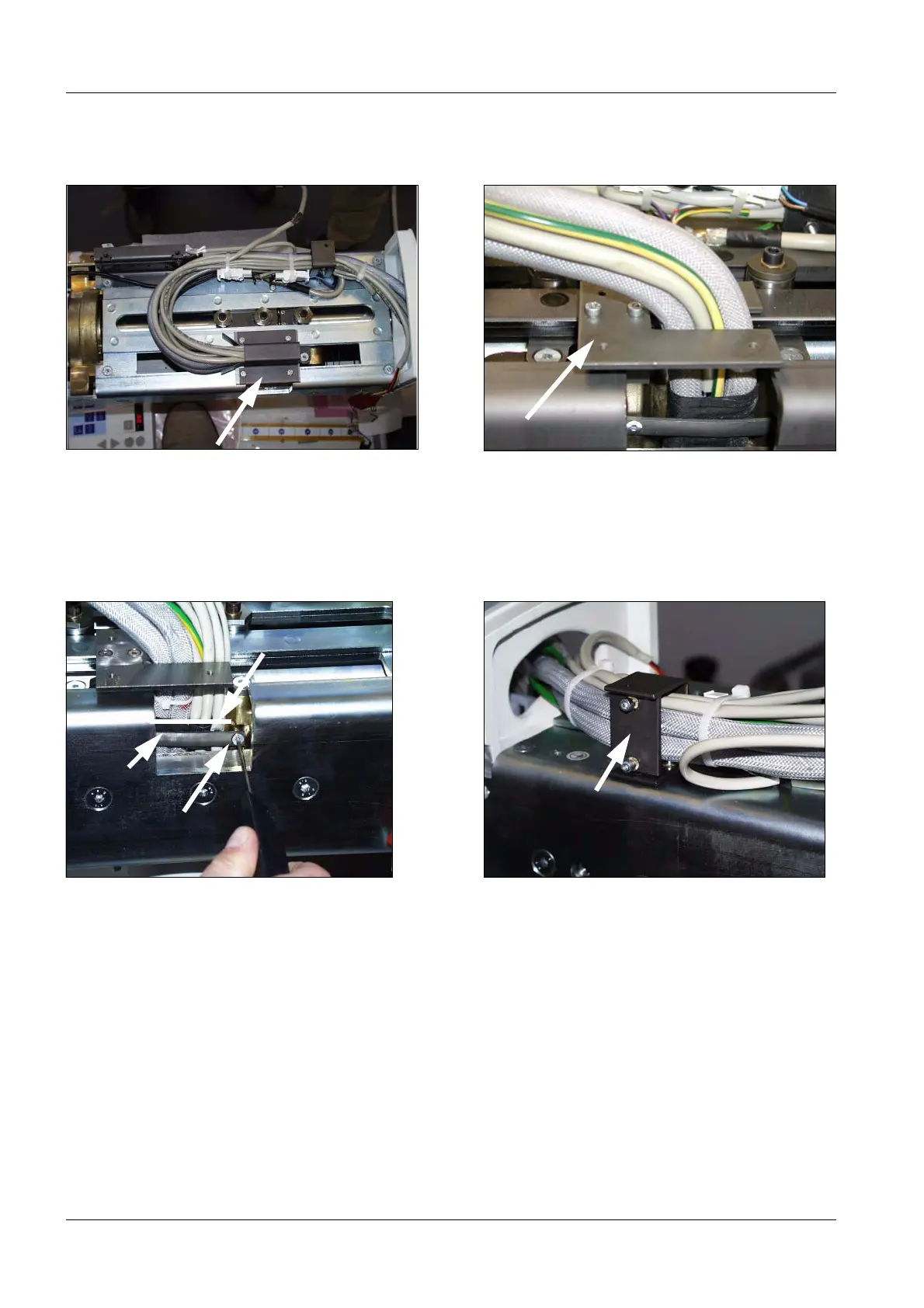

Fig. 6 Remove cable cover Fig. 7 Existing base plate
Fig. 8 Cable support, beam entry Fig. 9 Upper cable support
remove
mark
remove
unscrew
