SIREMOBIL Iso-C 3D SPR2-230.814.01 Page 8 of 14 Siemens AG
Rev. 05 08.04 CS PS 24 Medical Solutions
4 - 8 Kapitelüberschrift hier eintragen
Cable no. 7, item number n.a. (Fig. 18) 4
is contained in cable set, item no. 71 39 855
With existing LITHOSTAR MODULARIS option:
• Check whether the interface cable for LITHOSTAR MODULARIS is installed into the
mounting location of the CAN connector (see Fig. 20 and Fig. 21). If this is the case,
remove the interface cable.
To do so, proceed as follows:
- Unplug connector D30.X11 of the LITHOSTAR MODULARIS interface cable.
- Cut off connector D30.X11.
- Remove the socket of the LITHOSTAR MODULARIS interface cable.
- Install cable no. 7 of cable set 71 39 855 as described in the following.
• Remove the plug at the front of the system (Fig. 19).
• Remove the nut and the toothed washer at the CAN connector on cable no. 7.
• Pull the two cables through the nut and the toothed washer.
• Pull the cable through the opening (Fig. 20).

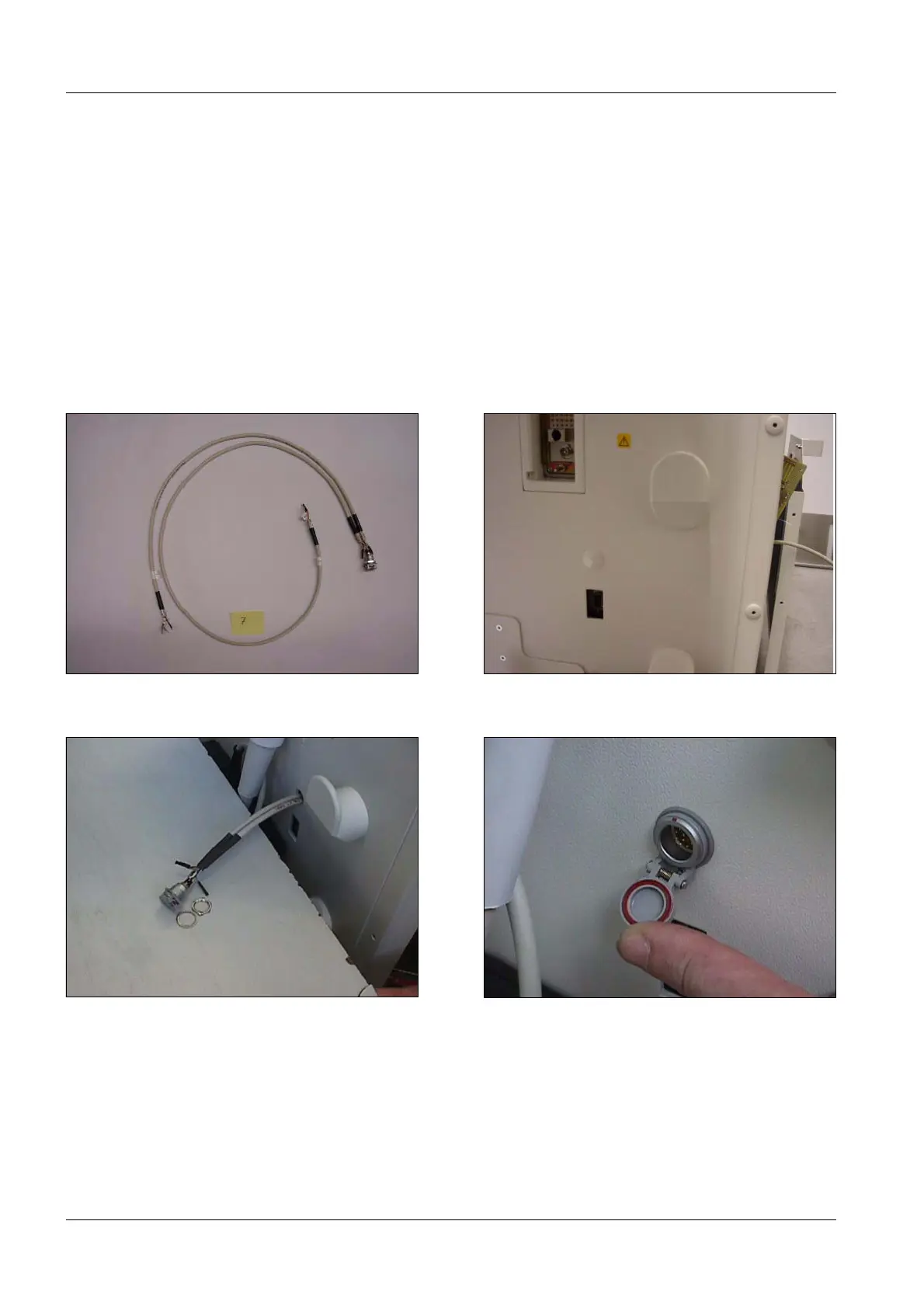

Fig. 18 Cable no.7 Fig. 19 Front of system
Fig. 20 Routing cable no. 7 Fig. 21 CAN connector is installed
