SIREMOBIL Iso-C 3D SPR2-230.814.01 Page 10 of 14 Siemens AG
Rev. 05 08.04 CS PS 24 Medical Solutions
2 - 10 Actions up to serial number 1408
"Emergency stop circuit 71 39 988" package 2
Cable no. 1 2
• Lift the flaps and pull off the lower part of the emergency stop switch from cable 1
(Fig. 23).
• Install the upper part of the emergency stop in the housing of the orbital carriage.
• Reinsert the lower part.
• Connect the connector.
Cable no. 2 2
• Unplug the connector D30.X1 on PC board D30.
• Connect it with connector D30.X1A of cable 2 (Fig. 24).
• Plug connector D30.X1B of cable 2 into plug-in location D30.X1 on PC board D30.
• Connect plug M16.X20 to plug M16.X20 of the cable harness just installed.
• At the main cable harness
Plug M3.X30.1 into plug contact 1.
Plug M3.X30.3 into plug contact 3.

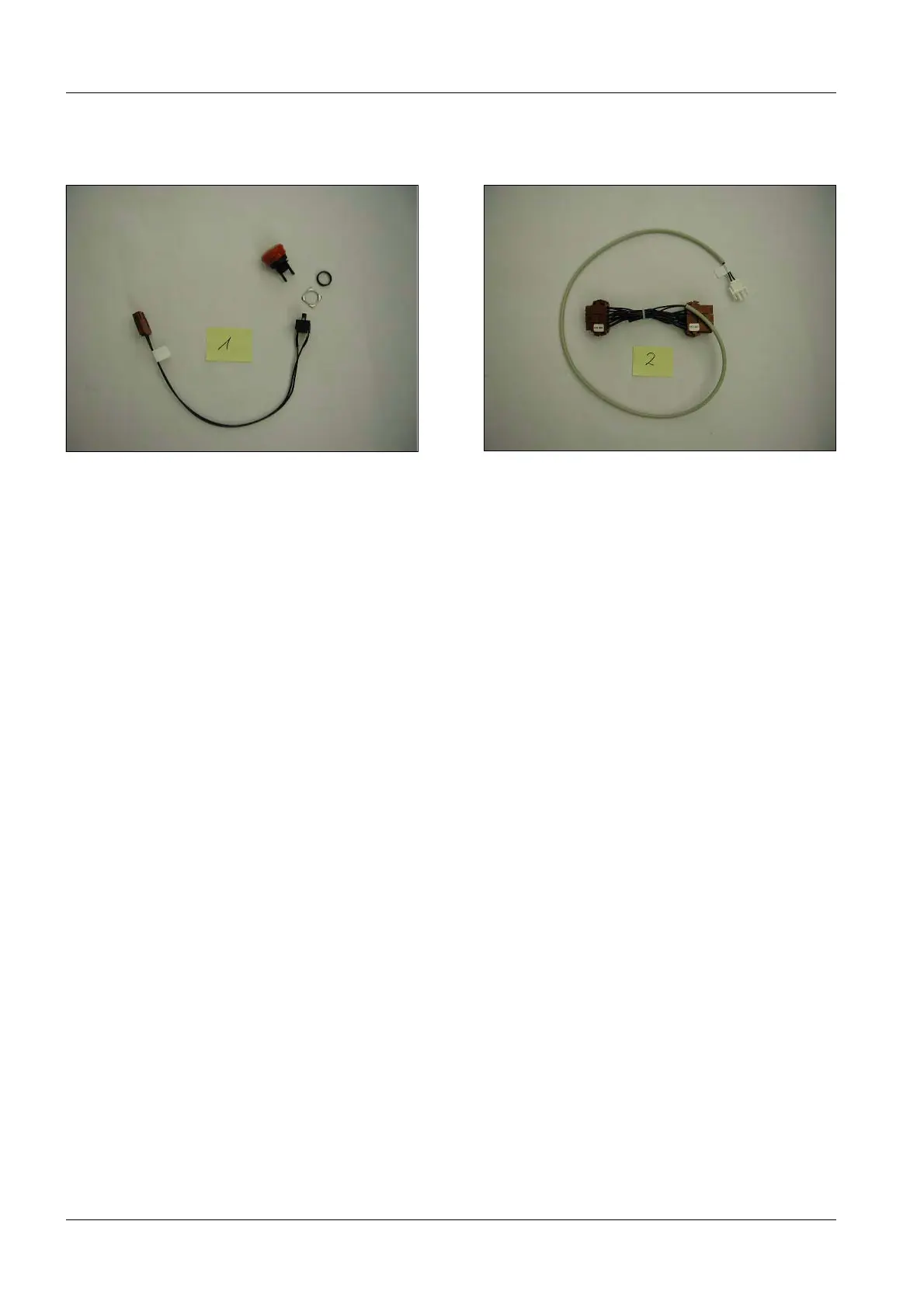

Fig. 23 Cable number 1 Fig. 24 Cable number 2
