• Use a pair of pliers to break off the plate (Fig. 85).
• Secure the cables No. 8 with cable clamps as shown in Fig. 86.
Attaching the video switcher 6
• Attach the video switchers with 4 tapping screws 3.5 x 16 (see Fig. 87 and Fig. 88).
System manual drawer 6
• Reattach the front cover to the drawer.

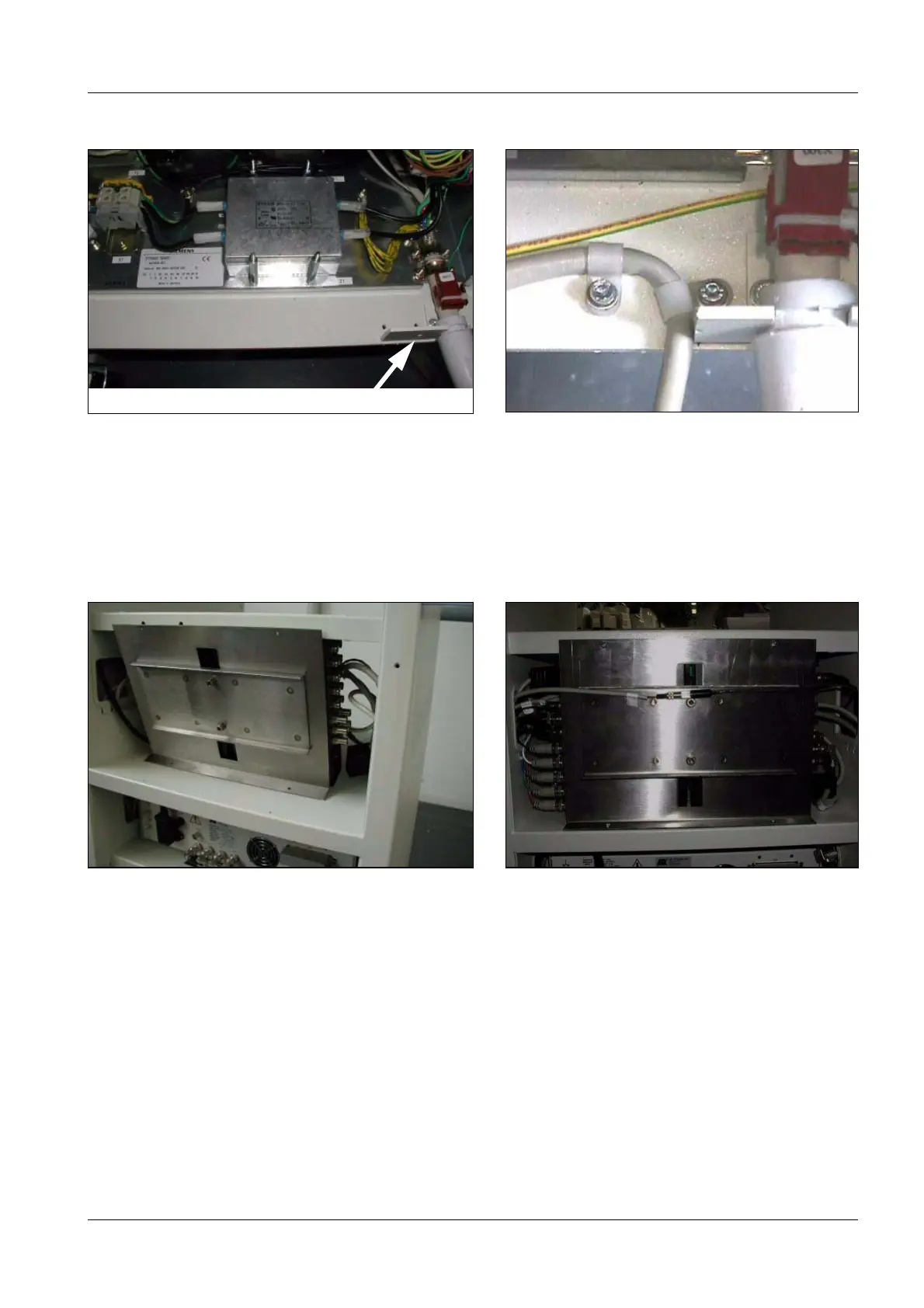

Fig. 86 Cable support Fig. 87 Cable no. 8 attached
Fig. 88 Moving in the video switcher Fig. 89 Installed video switcher
Nominal break
