Siemens SIREMOBIL Iso-C 3D - Covers; Cover of the X-Ray Unit; Cover of the Horizontal Carriage; Cover of the Cable Module

3 - 1
Siemens AG SPR2-230.814.01 Page 1 of 2 SIREMOBIL Iso-C 3D
Medical Solutions Rev. 05 08.04 CS PS 24
Actions beginning with serial number 1409 3
Covers 3
• Proceed as follows after the SIREMOBIL Iso-C has been moved to the respective room
and the brake has been enabled.
Cover of the X-ray unit 3
• Remove the cover and reatttach them after installing the 3D option.
Cover of the horizontal carriage 3
• Remove the cover and connector M3.X1.
• Reattach the cover after installing the 3D option.
Cover of the cable module 3
• Remove the cover and dispose of it properly, because this cover will no longer be
required.
• Attach the new cover after installing the 3D option.
Centering disk, item no. 71 40 580 3
• Attach the centering disk at the cable module (see Fig. 1).

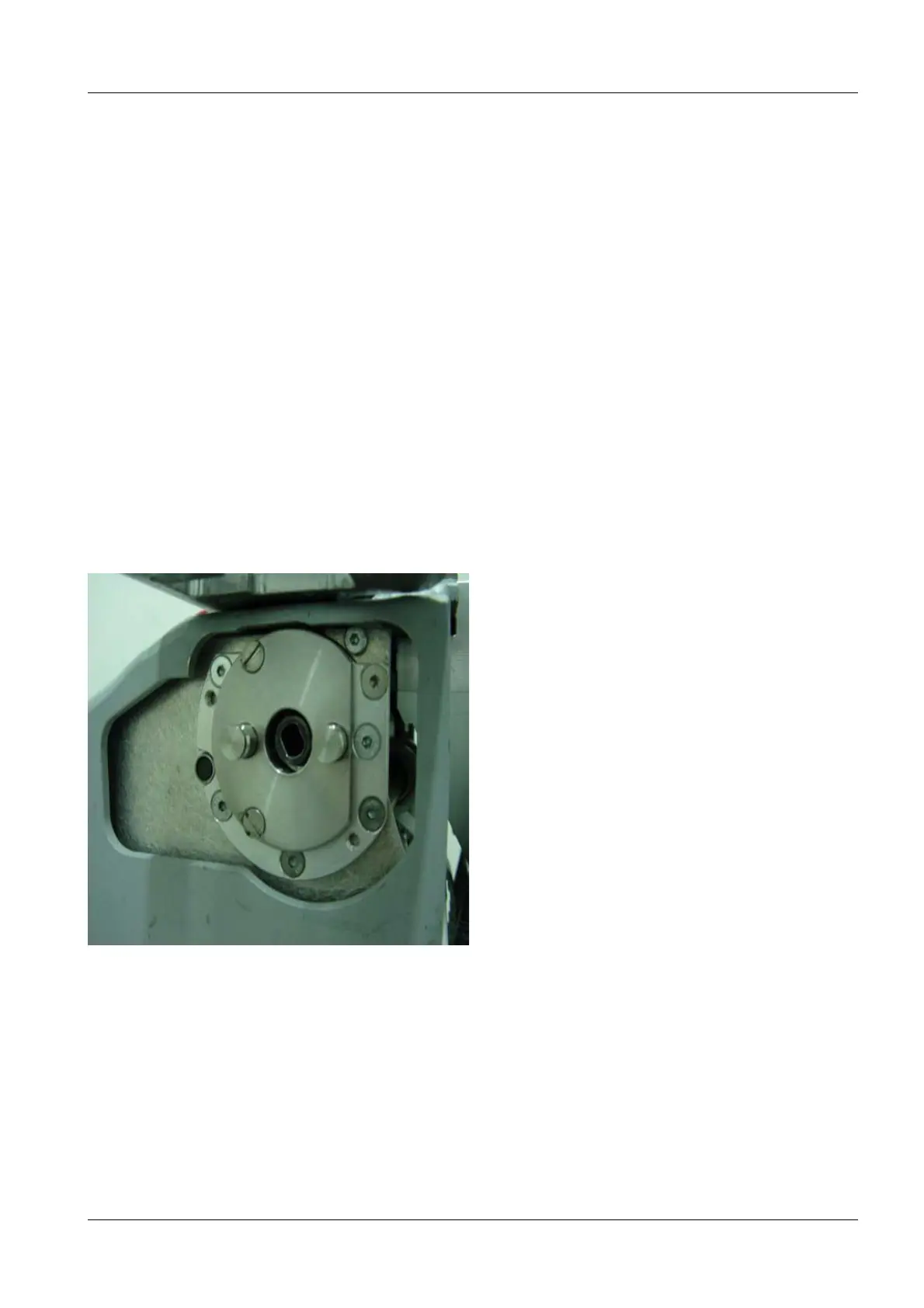

Fig. 1 Fully installed centering disk, beginning with serial number 1409
