6 - 2 3. Part of activities independent of serial number
Replacing the monitor 6
SIMOMED HM 6
• Remove the monitor on the right as follows.
• Remove the monitor cover (Fig. 3).
• Remove the shielding plate (Fig. 4).
• Remove the connection housing, if in place (Fig. 5).
• Remove all cables from the monitor to be replaced.
• Reattach all previously removed parts to the monitor.
• Remove the 2 screws at the monitor mounting (Fig. 6).
• Lift down the monitor.
If the TFT displays were ordered and delivered, disregard this
section. Continue with the section "Replacing the monitor, TFT
displays".

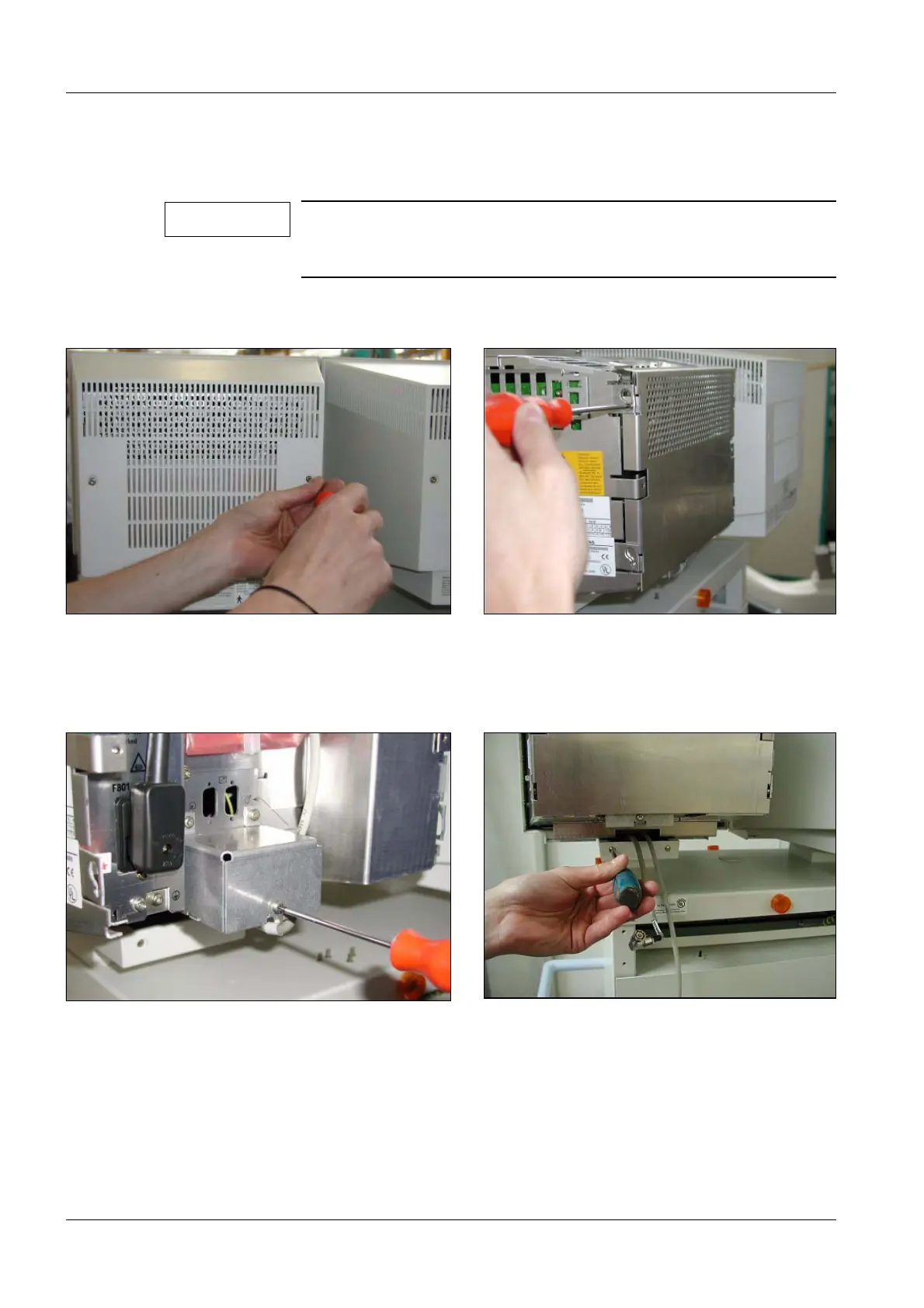

Fig. 3 Monitor cover Fig. 4 Shielding plate
Fig. 5 Connection housing Fig. 6 Monitor attachment
NOTE
Markierung für Tastaturschublade
Markierung für Tastaturschublade
