SIREMOBIL Iso-C 3D SPR2-230.814.01 Page 4 of 8 Siemens AG
Rev. 05 08.04 CS PS 24 Medical Solutions
5 - 4 2. Part of activities independent of serial number
Drive belt 5
To tighten the drive belt, proceed as follows:
• Remove the counterbalancing weight of the C-arm.
• Remove the belt tightener (Fig. 12).
• Remove the support for the drive belt (Fig. 13).
• Increase the tension of the belt drive by one tooth.
• Attach the support for the drive belt .
• Tighten the drive belt .
• Attach the counterbalancing weight for the C-arm.
• Repeat the procedure on the other side of the C-arm.

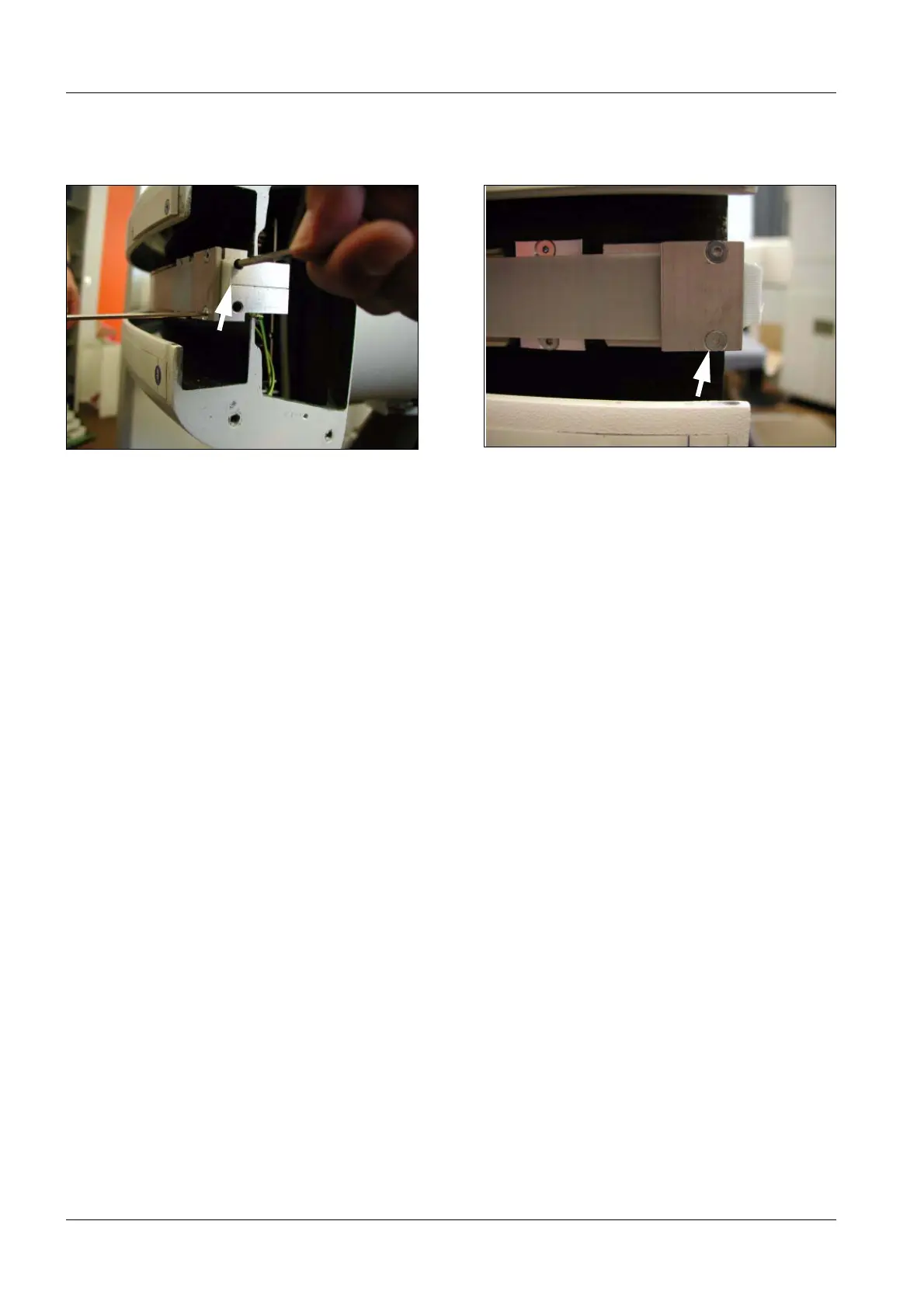

Fig. 12 Removing the belt tightener Fig. 13 Taking off the support
