SIREMOBIL Iso-C 3D SPR2-230.814.01 Page 6 of 8 Siemens AG
Rev. 05 08.04 CS PS 24 Medical Solutions
5 - 6 2. Part of activities independent of serial number
Wiring for the orbital drive 5
• Remove the cover from the encoder (Fig. 19).
• Fig. 18 shows the plugs from the limit switch cable of the orbital drive.
• Connect the "Encoder" plug of the encoder cable with the "Encoder" plug under the
cover.
• Connect the "angulation" plug of the cable for the angulation part with the "X4" plug of the
orbital drive cable set.
• Connect the "limit switch " plug of the limit switch cable with the "limit switch" plug of the
orbital drive.

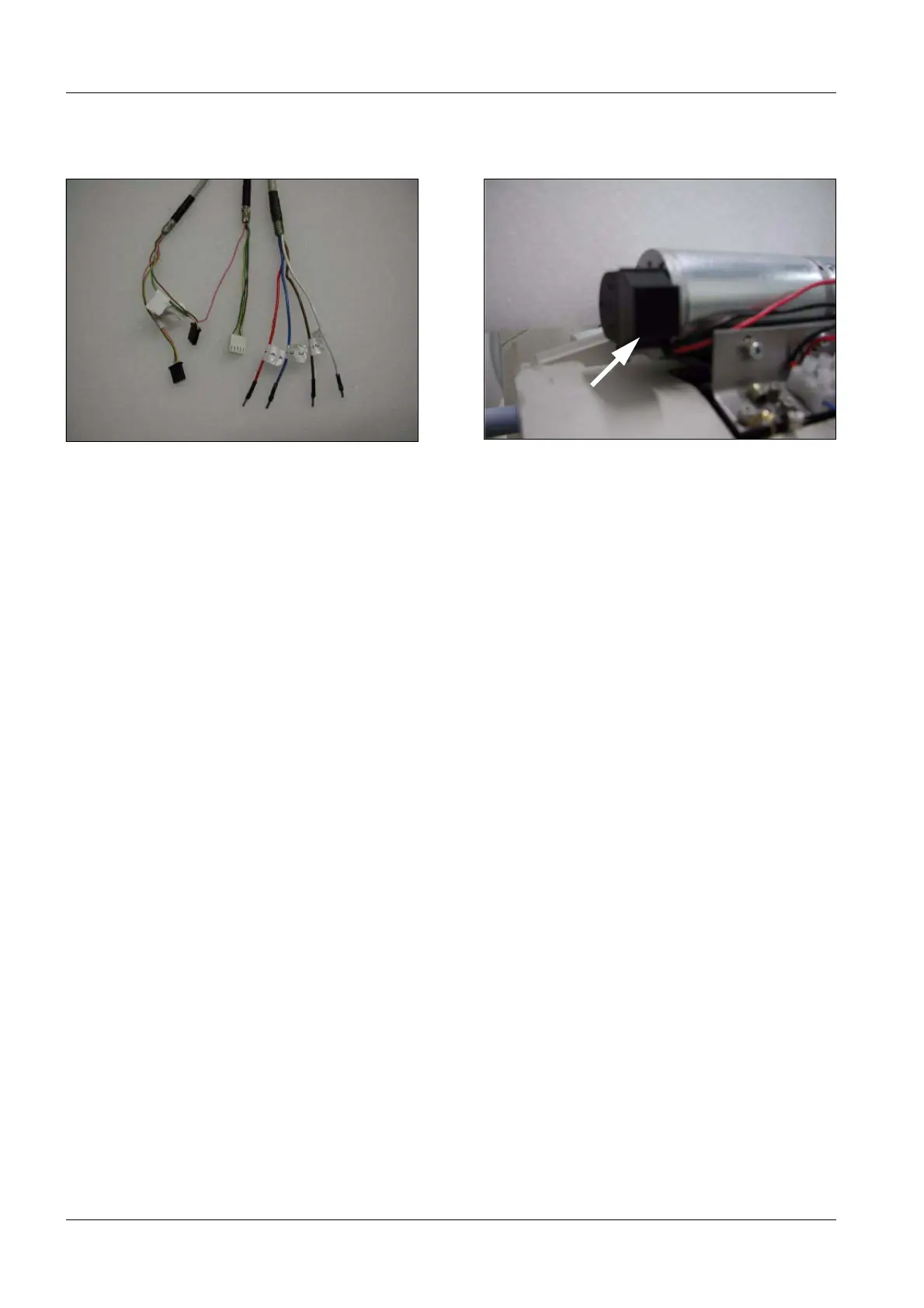

Fig. 18 Connectors, cable set for orbital drive Fig. 19 Plug-in encoder
cover
