2. Part of activities independent of serial number 5 - 7
Siemens AG SPR2-230.814.01 Page 7 of 8 SIREMOBIL Iso-C 3D
Medical Solutions Rev. 05 08.04 CS PS 24
• Secure the shielding and attach it with screws (Fig. 21).
• Connect the cables identified with 1 to 4 to the terminal blocks 1 through 4 (Fig. 20 and
Fig. 22).
• Clamp the red cable of the coupling unit to terminal block no. 3.
• Clamp the blue cable of the coupling unit to terminal block no. 4.

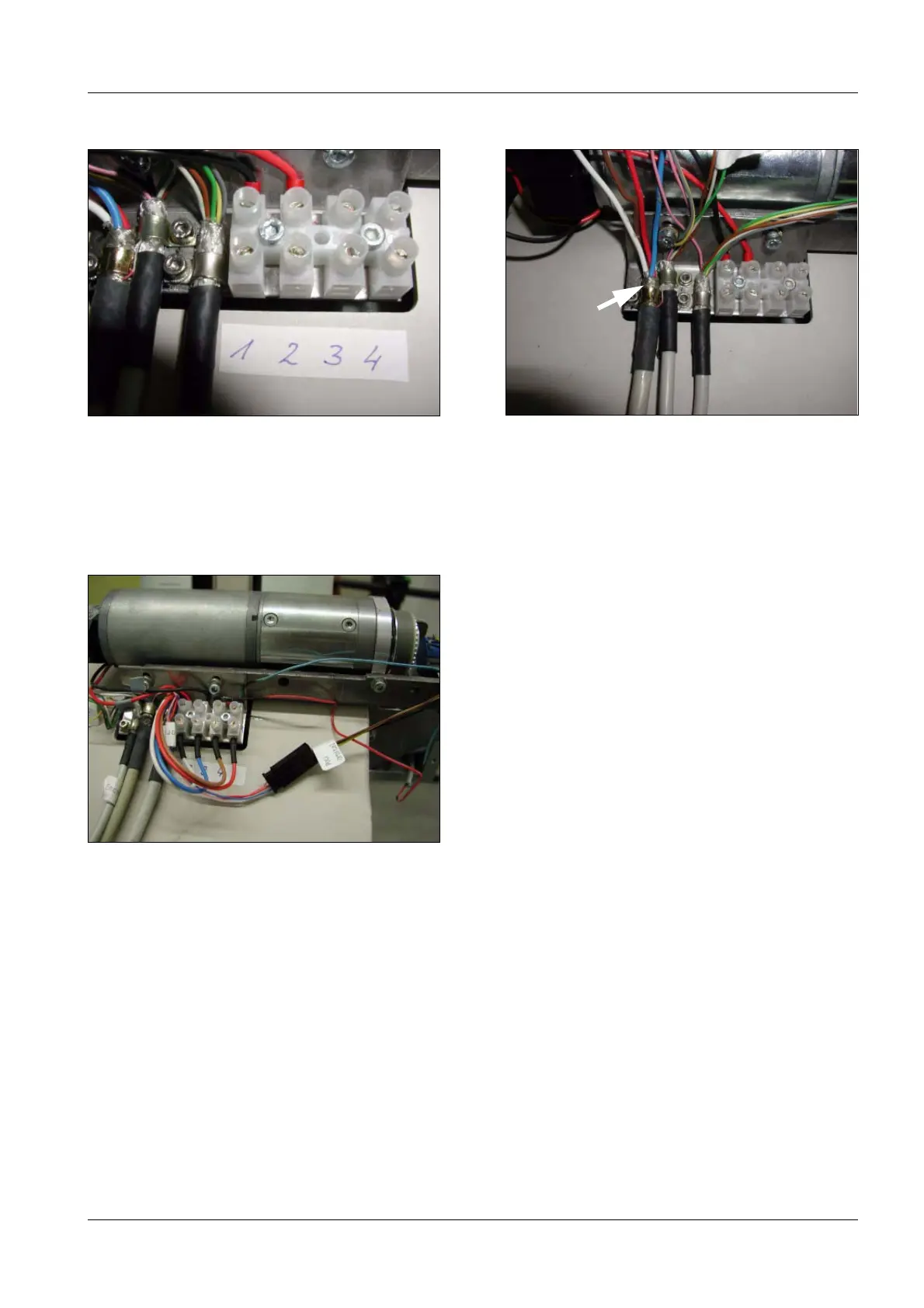

Fig. 20 Terminal blocks Fig. 21 Shielding
Fig. 22 Connecting the terminal block
