SIREMOBIL Iso-C 3D SPR2-230.814.01 Page 38 of 42 Siemens AG
Rev. 05 08.04 CS PS 24 Medical Solutions
6 - 38 3. Part of activities independent of serial number
Zipper hose 6
• Unplug the connection cable at the basic unit.
• Route the connection cable between the monitor trolley and the basic unit as straight as
possible.
• Route cable no. 8 parallel to the connection cable.
• Unroll the zipper hose (Fig. 89).
• Route the zipper hose underneath the connection cable and cable no. 8.
• Use the "zipper pliers" to close the hose.
• Secure the ends with tape.

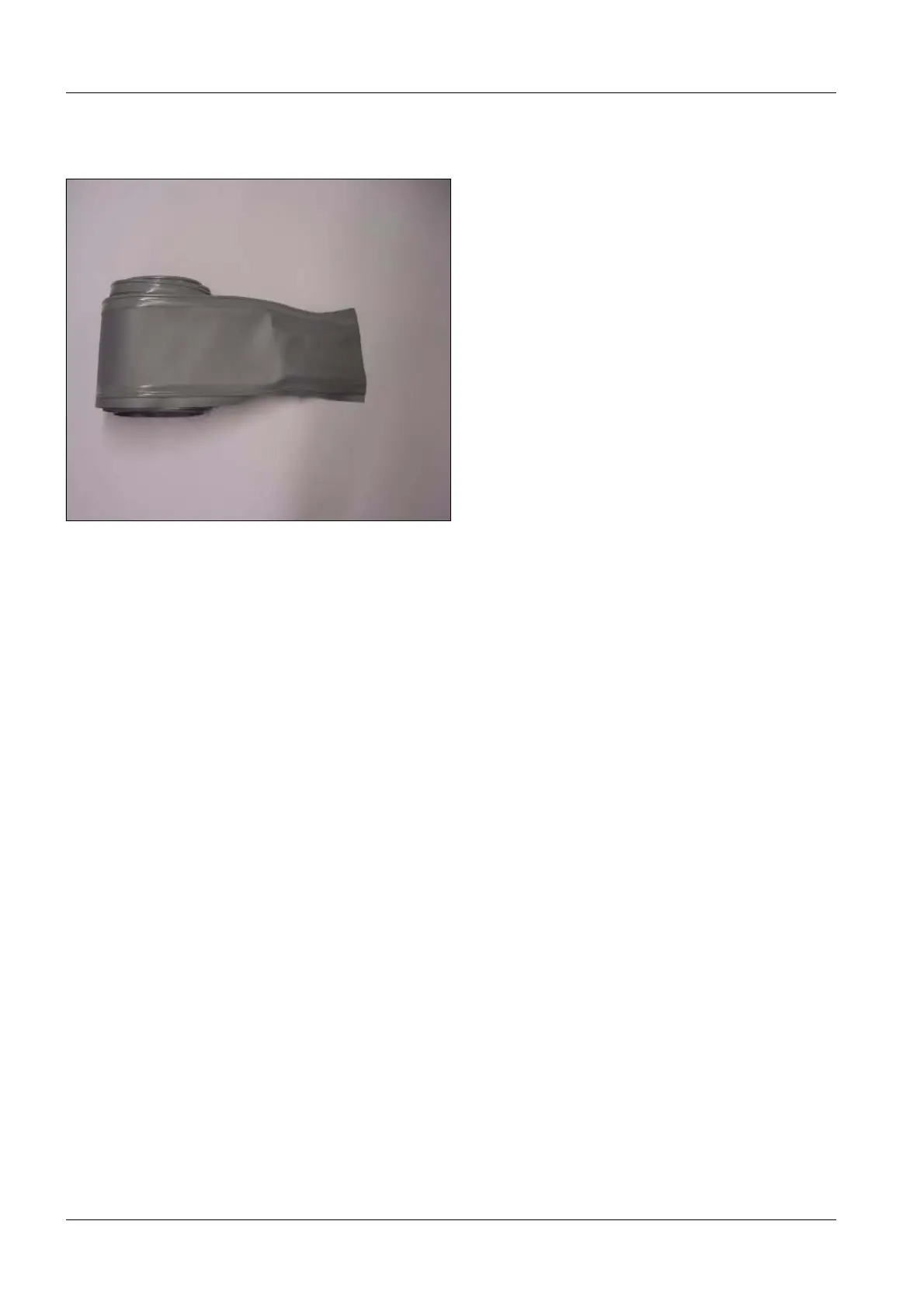

Fig. 90 Zipper hose
Markierung für Tastaturschublade
