Siemens SIREMOBIL Iso-C 3D User Manual

3. Part of activities independent of serial number 6 - 27
Siemens AG SPR2-230.814.01 Page 27 of 42 SIREMOBIL Iso-C 3D
Medical Solutions Rev. 05 08.04 CS PS 24
Cabling of the mouse and keyboard 6
• Route the cables for the mouse and keyboard through the opening downward at the left
side.
• Connect the keyboard cable at the PC keyboard port.
• Connect the mouse cable to the "Primary Pointing Device" (Fig. 68) plug-in location on
the mouse port adapter.
• Connect the cable of the computer mouse port to the mouse port at the PC.
Monitor cable, no. n.a., item number 30 65 844 6
• Connect the cables to video switcher 1 (see Fig. 69), output terminal "out",
green to G, blue to H/C, red to V.
Video cable, no. n.a., item number n.a. 6
• Connect the video cable (has already be routed downward) from the monitor to input G at
video switcher 1 (see Fig. 69).

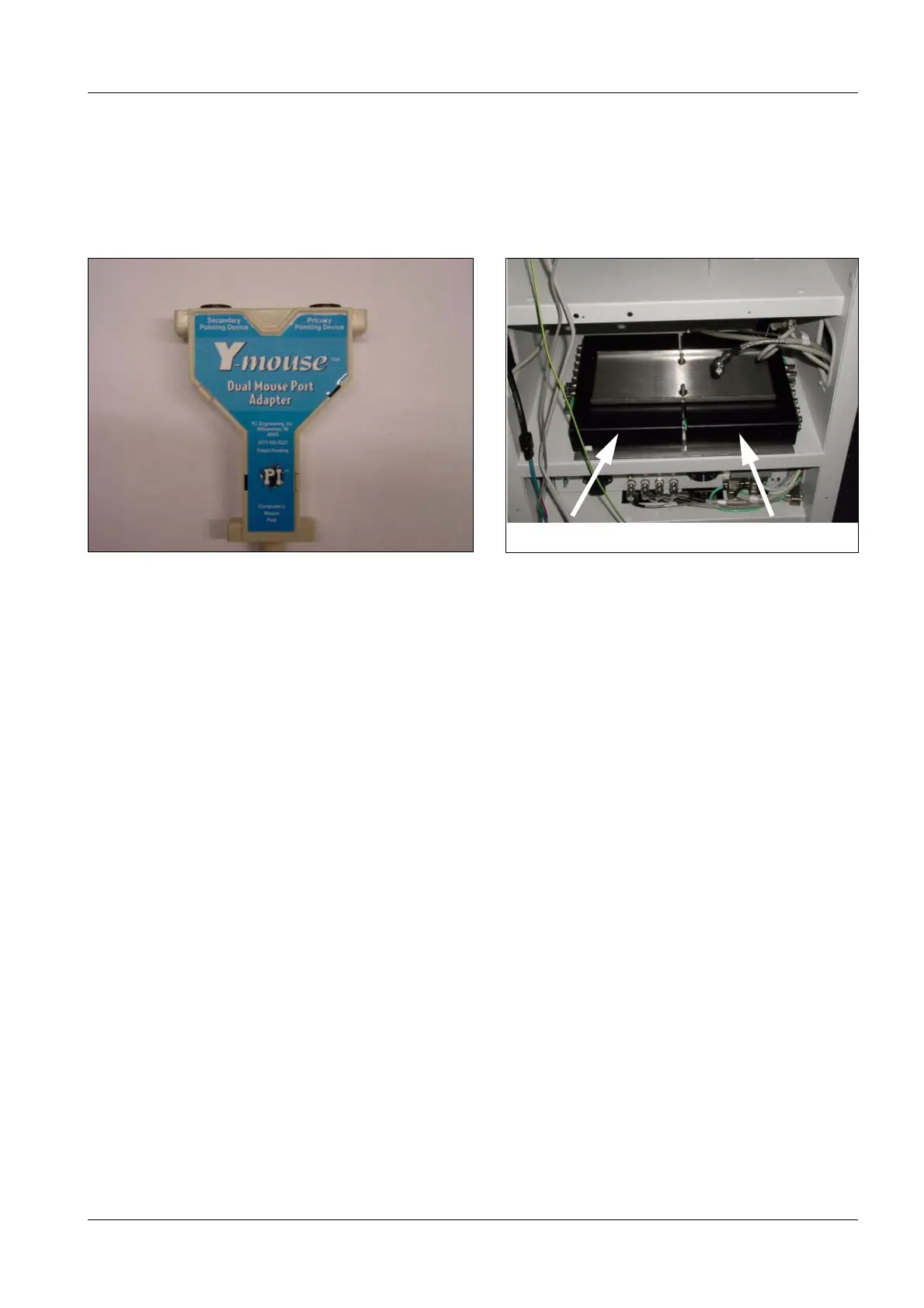

Fig. 69 Mouse port adapter Fig. 70 Video switcher 1 and 2
Video switcher 1
Video switcher 2
Markierung für Tastaturschublade
