Siemens SIREMOBIL Iso-C 3D User Manual

SIREMOBIL Iso-C 3D SPR2-230.814.01 Page 28 of 42 Siemens AG
Rev. 05 08.04 CS PS 24 Medical Solutions
6 - 28 3. Part of activities independent of serial number
Monitor cable, no. n.a., item number 30 65 844 6
• Insert the VGA plug into the upper left opening at the side.
• Pull it downward.
• Connect it at the PC, right graphics card.
• Connect the 5 monitor cables at input 2 of video switcher 1 (see Fig. 69)
- red to R; geen to G; blue to B; white to H; black to V.
• Slide the excess cable into the side panel.

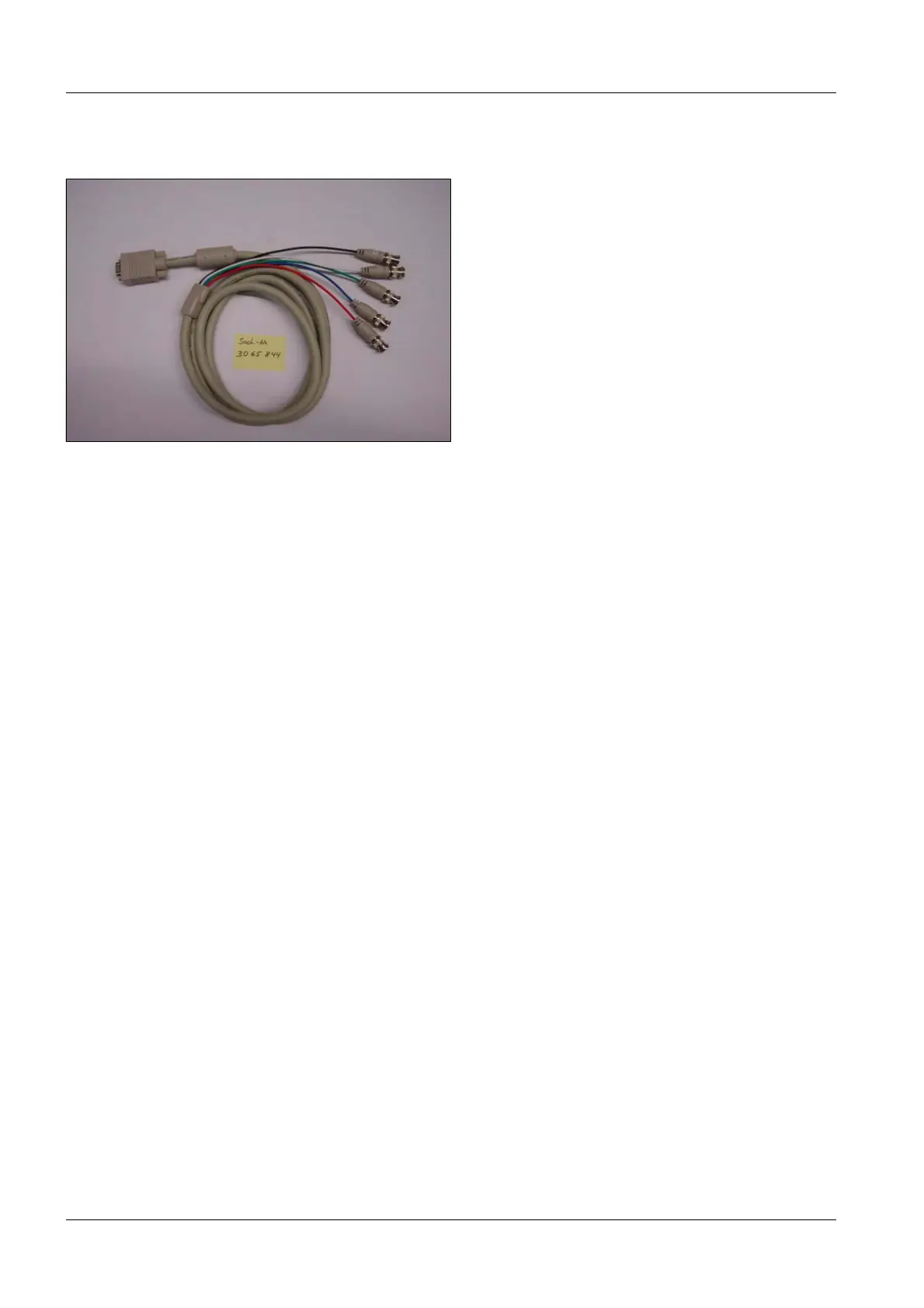

Fig. 71 Cable, item no. 30 65 844
Markierung für Tastaturschublade
VGA plug
