Kapitelüberschrift hier eintragen 4 - 7

Siemens AG SPR2-230.814.01 Page 7 of 14 SIREMOBIL Iso-C 3D

Medical Solutions Rev. 05 08.04 CS PS 24

Orbital drive cable set, item no. 71 39 970 4

• D10 is inserted in PC board D200 (Fig. 17).

• Proceed as follows with respect to the previously routed orbital drive cable set.

- Insert plug D10.X11into plug-in-location D10.X11 on PC board D10 .

- Insert plug D10.X10 into plug-in-location D10.X10 on PC board D10.

- Insert plug D200.X116 into plug-in-location D200.X116 on PC board D200 .

- Insert plug D200.X221 into plug-in-location D200.x221 on PC board D200.

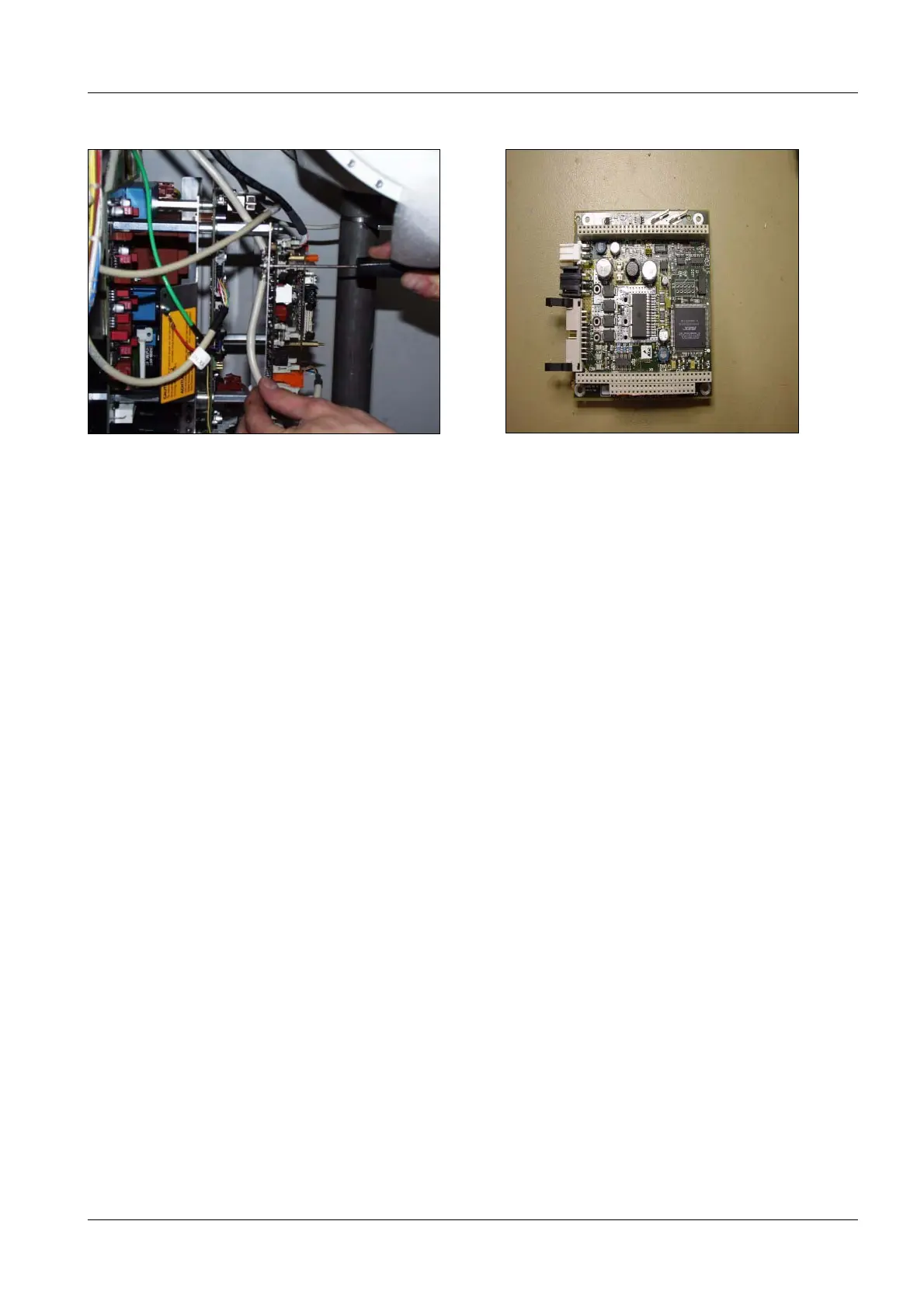

Fig. 16 Shielding connection D200 Fig. 17 Pc board D10

Table of Contents3
Notes and Symbols7
Safety Information8
- Measuring the Protective Conductor Resistance8
Tools, Measuring Equipment and Auxiliary Devices10
Check List Prior to Installing the 3D Option11
Actions Required Prior to Installing the 3D Option11
Cover of the X-Ray Unit13
Cover of the Horizontal Carriage13
Cover of the Cable Module14
- Drilling and Threading Holes at the Cable Module14
- Drilling and Threading Holes for Installing the Limit Switches at the Cable Module15
Cabling, Basic Unit16
Energy Chain17
Upgrade Cable Set, Item Number 71 39 99621
Emergency Stop Relay21
Emergency Stop Circuit 71 39 988" Package22
- Cable No. 122
- Cable No. 222
- Cable No. 3 (Fig. 25)23
- Cable No. 4 (Fig. 26)23
Orbital Drive24
- Centering Disk, Item No. 71 40 58026
- Washer, Item No. Nr. 71 40 61426
Covers27
- Cover of the X-Ray Unit27
- Cover of the Horizontal Carriage27
- Cover of the Cable Module27
Centering Disk, Item No. 71 40 58027
C-Arm29
- Limit Switches31
- Setting the Limit Switches31
- Cable No. 3, Item Number N.a34
- Cable No. 4, Item Number N.a34
- Cable No. 5A, Item Number N.a34
- Cable No. 5B, Item Number N.a34
- Cable No. 2, Item Number N.a34
- Cable No. 1, Item Number N.a34
- Cable No. 6, Item Number N.a34
- Orbital Drive Cable Set, Item No. 71 39 97035
- Cable No. 7, Item Number N.a. (Fig. 18)36
Additional Work with the LITHOSTAR MODULARIS Option39
- Checking the Existing Configuration39
Installing the New LITHOSTAR MODULARIS Interface40
Orbital Drive43
- Coupling Unit44
Drive Belt46
- Angulation Measurement47
- Wiring for the Orbital Drive48
Preparations on the Monitor Trolley51
Replacing the Monitor52
- Simomed Hm52
- Cable No. 13, Item Number N.a54
- TFT Displays56
PC Support64
- Holes for PC Support64
Keyboard Tray66
Rear Panel of the Monitor Trolley72
Installing the PC72
- Video Switcher73
- Cut-Off Delay D210, Item No. 71 40 07175
- Cabling of the Mouse and Keyboard77
- Monitor Cable, No. N.a., Item Number 30 65 84477
- Video Cable, No. N.a., Item Number N.a77
- Cable, No. 10, Item Number N.a79
- Video out Cable, No. N.a., Item Number N.a79
- Cable No. 14, Item Number N. a80
- SCSI Cable, No. .N.a., Item Number 30 66 18081
- Cable No. 11, Item Number N.a82
- Printer Is Available82
- No Printer Available82
- Cable No. 15, Item Number N.a83
- Cable No. 16, Item Number N.a84
- Cables No. 8 and 9, Item Number N.a86
- Attaching the Video Switcher87
- System Manual Drawer87
- Zipper Hose88
- Cable No. 12, Item Number N.a89
- External Mouse90
- Dongle90
- Cabling90
Covers91
- Attaching the PC Covers91
Checking the C-Arm Movements for SIREMOBIL Iso-C 3D93
- Where to Go from here93
