Siemens SIREMOBIL Iso-C 3D - SCSI Cable, No..N.a., Item Number 30 66 180

3. Part of activities independent of serial number 6 - 31
Siemens AG SPR2-230.814.01 Page 31 of 42 SIREMOBIL Iso-C 3D
Medical Solutions Rev. 05 08.04 CS PS 24
SCSI cable, no. .n.a., item number 30 66 180 6
• Remove the SCSI dongle at the Memoskop. This dongle is no longer needed.
• Connect plug A (see Fig. 75) with plug location "SCSI" at the Memoskop and lock it into
position.
• Connect plug B (see Fig. 75) with PC plug location "SCSI Adapter" and secure it with
screws.

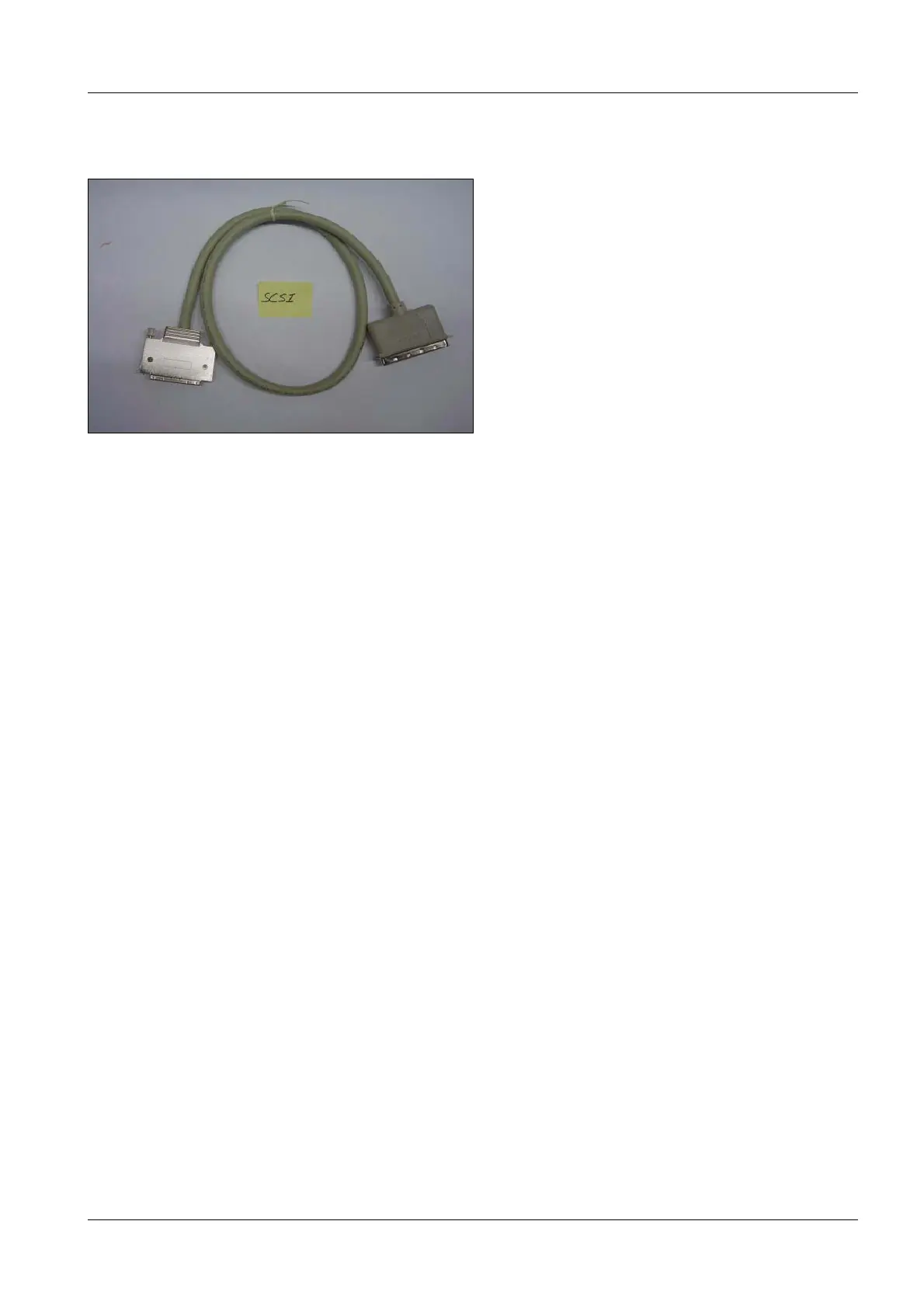

Fig. 76 Picture of SCSI cable
Markierung für Tastaturschublade
A
B
