Siemens SIREMOBIL Iso-C 3D User Manual

3. Part of activities independent of serial number 6 - 29
Siemens AG SPR2-230.814.01 Page 29 of 42 SIREMOBIL Iso-C 3D
Medical Solutions Rev. 05 08.04 CS PS 24
Cable, no. 10, item number n.a. 6
• Remove the keyboard connector at the Memoskop (Fig. 72).
• Connect the "Memoskop RS 2322 " plug of cable no. 10 (Fig. 71) to the keyboard
connection at the Memoskop and secure it.
• Connect the keyboard connection plug to the disconnected keyboard connection and
secure it.
• Pull plug "3D PC RS 232" through the opening down to the left and connect to it to the PC
serial port RS232.
Video Out cable, no. n.a., item number n.a. 6
• Insert the VGA plug (Fig. 58) into the left graphics card.
• Connect the Video Out plug with BNC coupling/ Cinch (see Fig. 73).

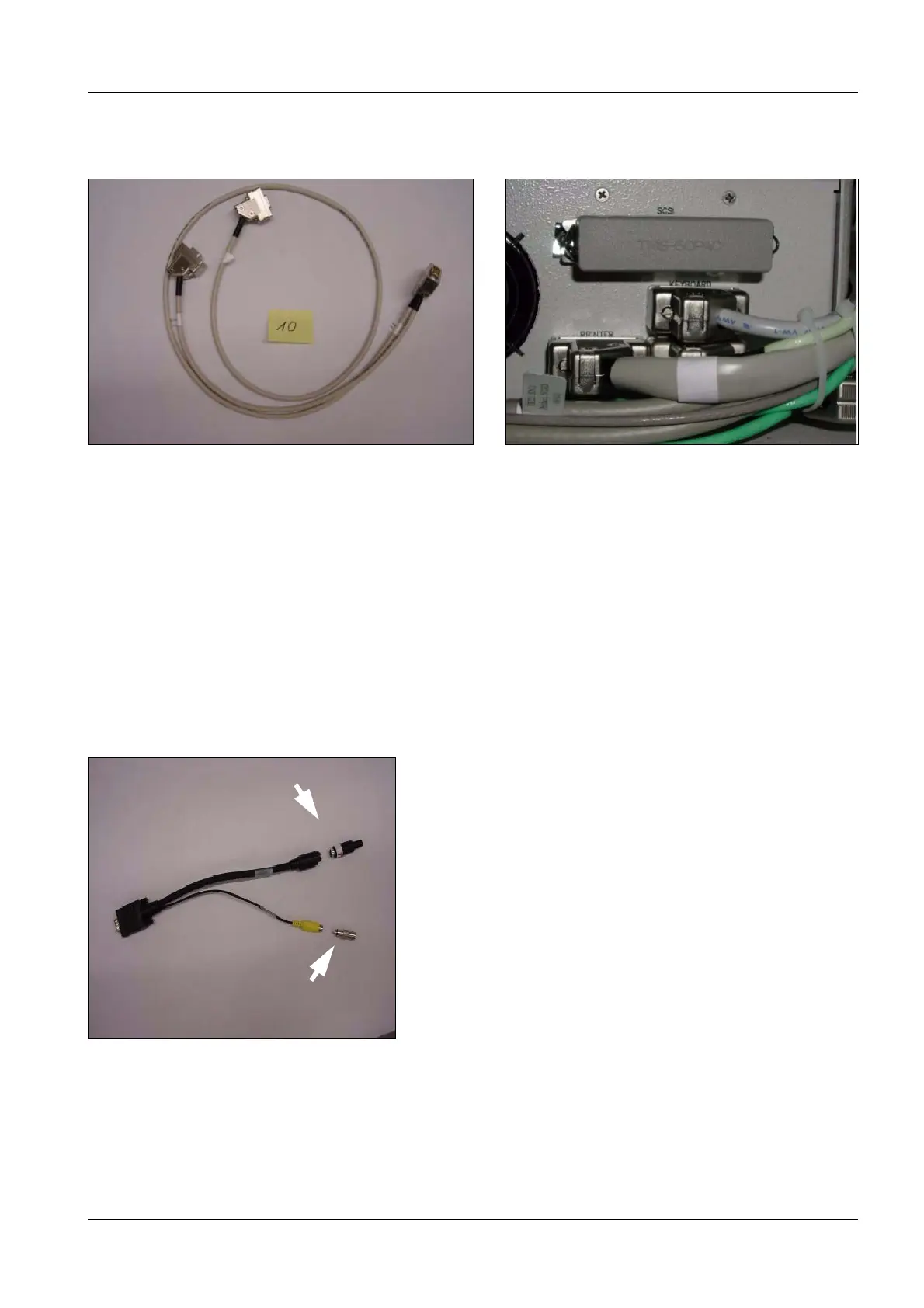

Fig. 72 Cable no. 10 Fig. 73 Memoskop connector
Fig. 74 Video Out cable including terminator and BNC coupling
Markierung für Tastaturschublade
terminator
BNC coupling
VGA plug
