Siemens SIREMOBIL Iso-C 3D User Manual

5 - 1
Siemens AG SPR2-230.814.01 Page 1 of 8 SIREMOBIL Iso-C 3D
Medical Solutions Rev. 05 08.04 CS PS 24
2. Part of activities independent of serial number5
Orbital drive 5
• Remove the two existing screws (Fig. 2).
• Attach the motor using 2 countersunk Allen screws M 8 x 40 (Fig. 3 and Fig. 4).

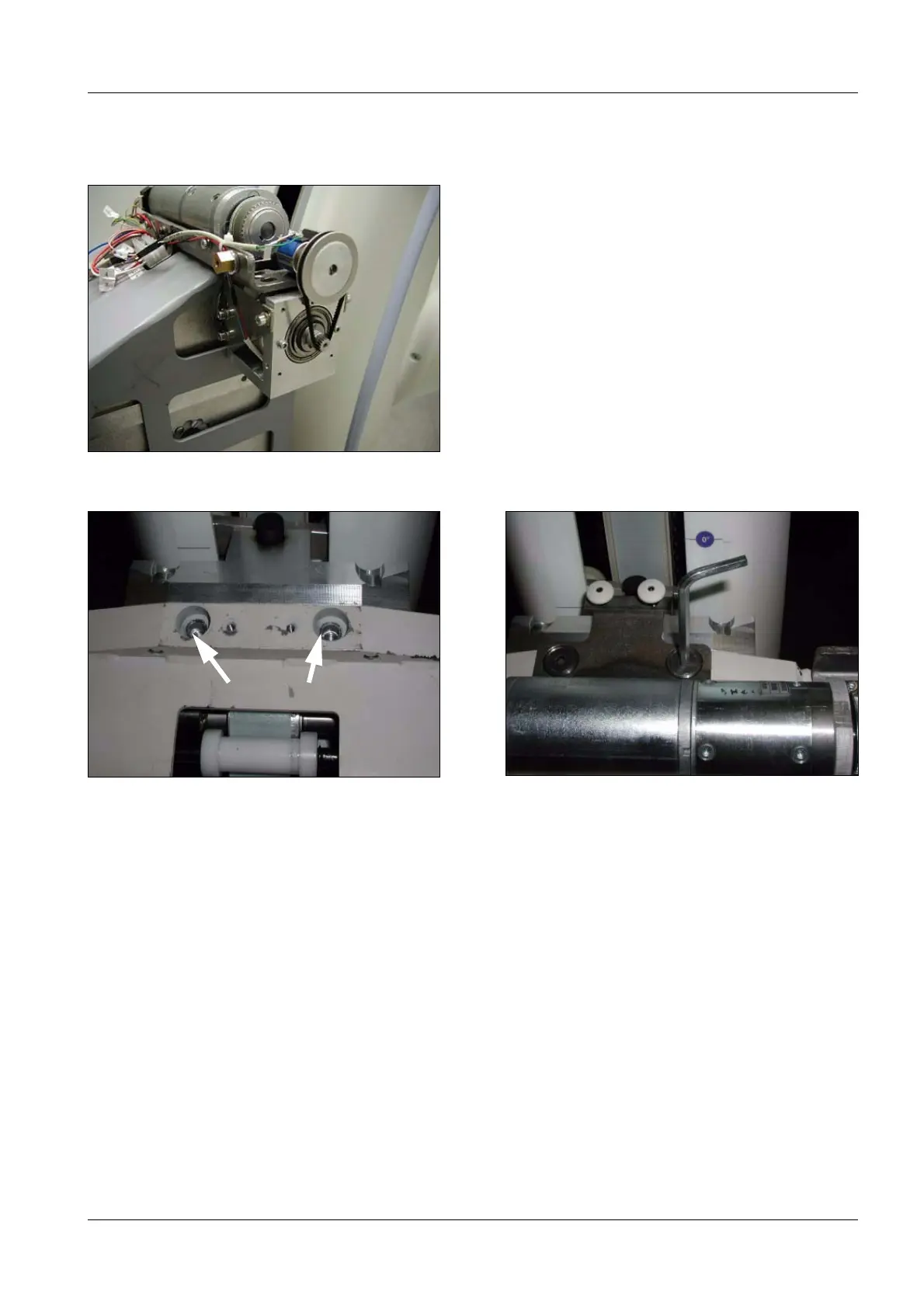

Fig. 1 Orbital drive fully installed
Fig. 2 Screws removed Fig. 3 Motor unit attached
