Rear panel of the monitor trolley 6
• Draw the two cut-outs on the rear panel of the monitor trolley and cut them out (Fig. 54
and Fig. 55).
• Deburr the edges.
Installing the PC 6
• Remove the PC from the packaging.
• Position the PC in the support (Fig. 56) and secure it with tape (Fig. 57).

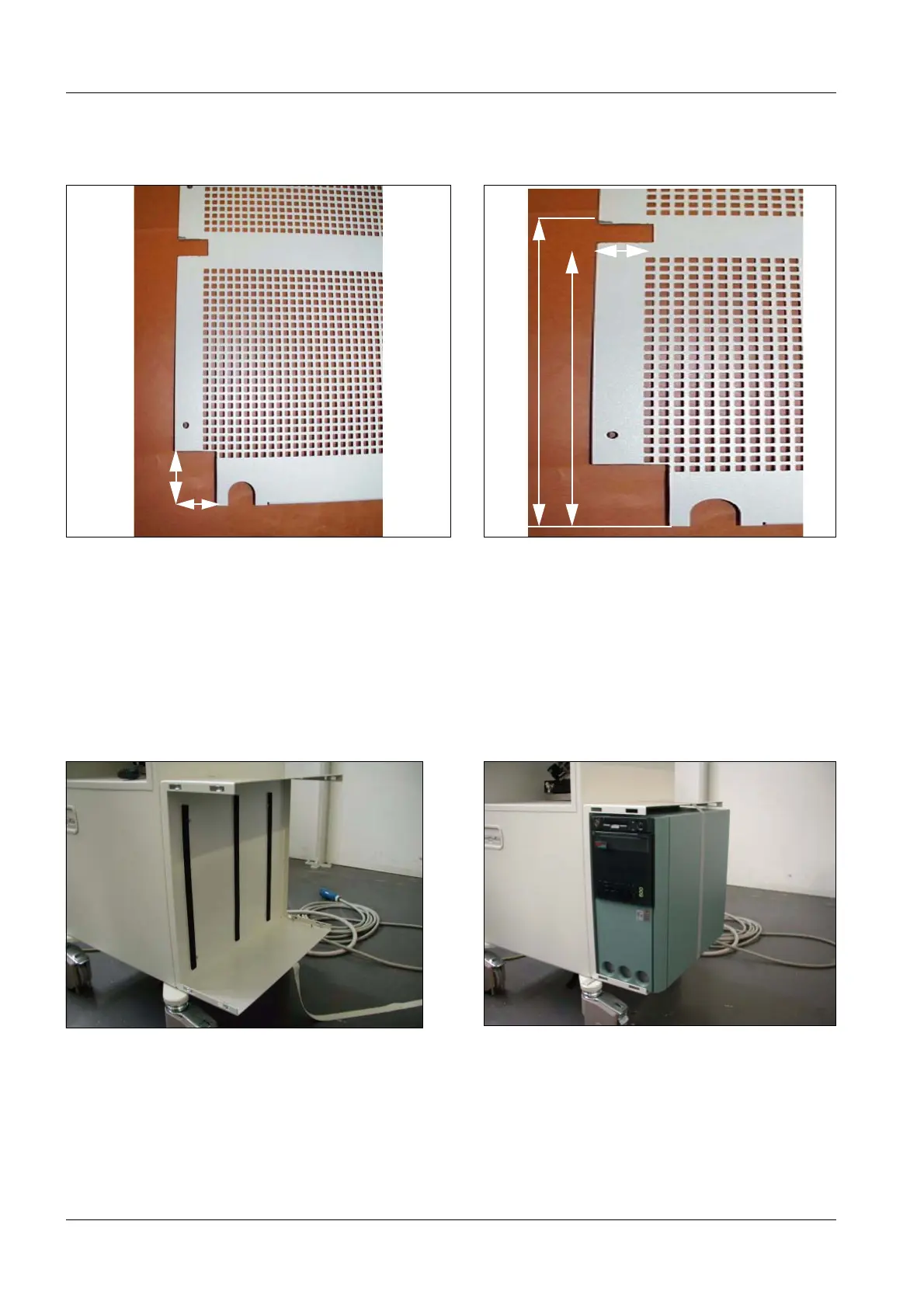

Fig. 55 Cut-out 1 Fig. 56 Cut-out 2
Fig. 57 PC support Fig. 58 PC installed
282 mm 302 mm
35 mm
45 mm
60 mm
