Actions up to serial number 1408 2 - 13
Siemens AG SPR2-230.814.01 Page 13 of 14 SIREMOBIL Iso-C 3D
Medical Solutions Rev. 05 08.04 CS PS 24
The following actions need to be performed in short order:
• Place one drop of the supplied Loctite into the opening of the thread (Fig. 30). The thread
for the connecting piece points upward.
• Place two drops of Loctite on the thread of the connecting piece (Fig. 29).
• You have to screw the connecting piece into the thread within 15 seconds, first with the
screwdriver (Fig. 31) and then with the torque wrench (8 Nm) (Fig. 32). Please note that
the connecting piece is screwed in clockwise.
• Immediately remove any remaining Loctite to ensure that it does not touch the ball
bearing!

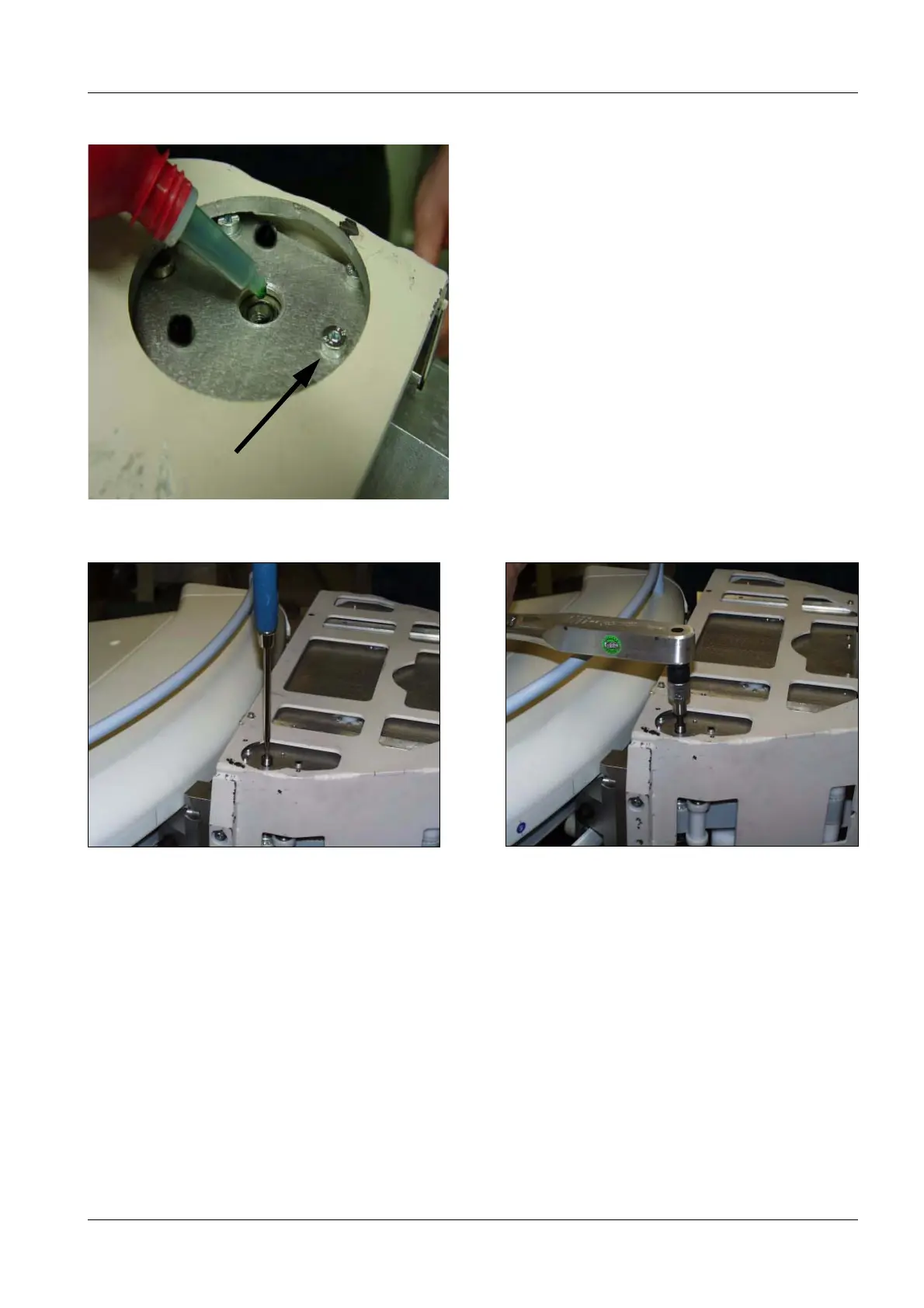

Fig. 30 A drop of Loctite
Fig. 31 Secure with screwdriver Fig. 32 Tighten with torque wrench
Do not remove this screw!
