3. Part of activities independent of serial number 6 - 5
Siemens AG SPR2-230.814.01 Page 5 of 42 SIREMOBIL Iso-C 3D
Medical Solutions Rev. 05 08.04 CS PS 24
• Remove the packaging from the monitor and place the monitor on the carton (Fig. 12).
• Remove the rear cover (Fig. 13).
• Remove the monitor dome of Simomed HM (2 screws at the back).
• Attach the monitor carrier to the monitor using 6 screws (Fig. 14).
• Place the monitor on the adapter and tighten the two neck screws (Fig. 15).
• Attach the two cables at the cable supports at the monitor (Fig. 15).
• Slide the monitor housing over it.
• Connect the cables at the monitor,
green to video, blue to H/H+V, red to V.
• Connect the power plug of the old monitor to the new monitor.

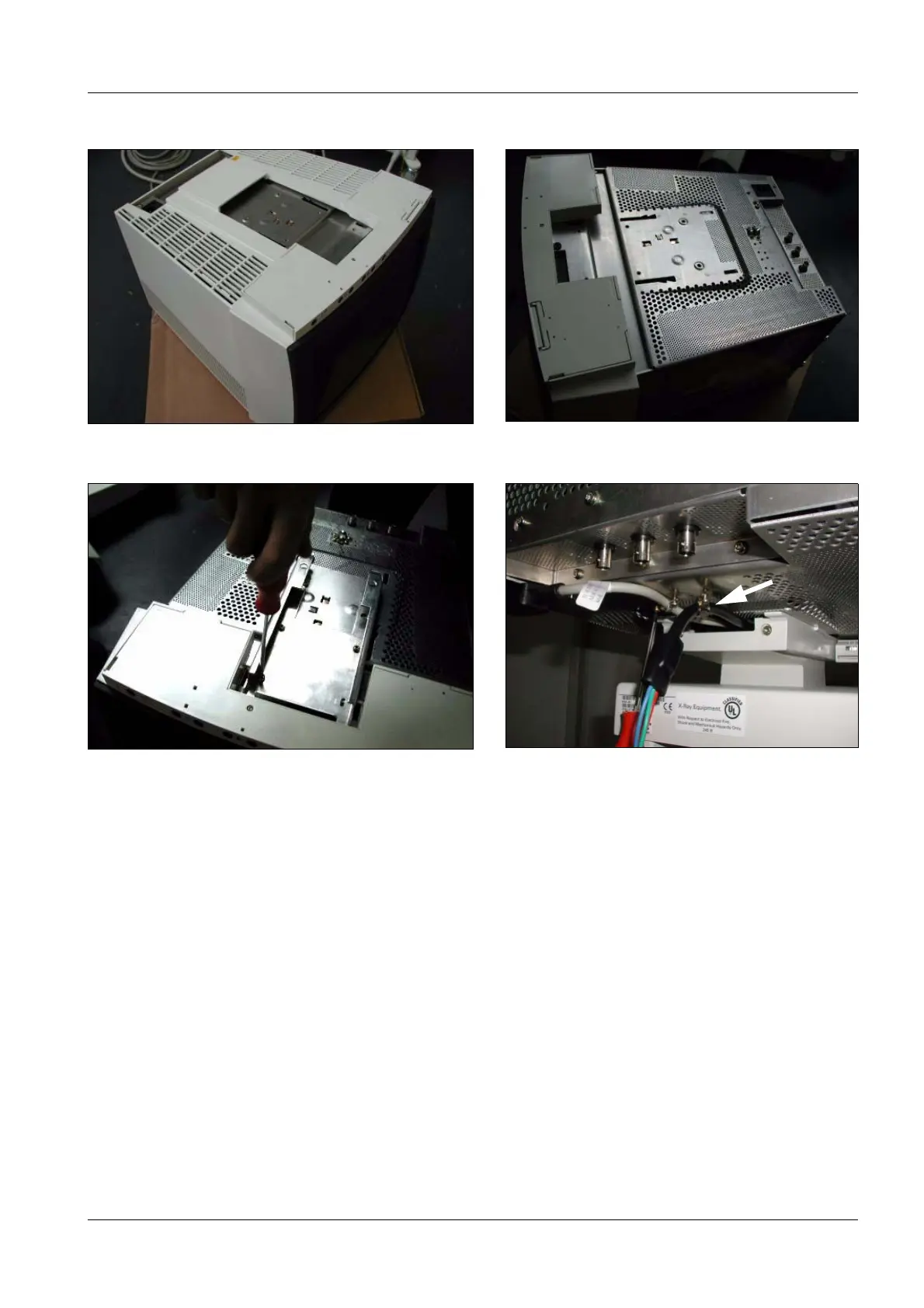

Fig. 12 Monitor, unpacked Fig. 13 Monitor cover removed
Fig. 14 Monitor support Fig. 15 Attaching the cables
