3. Part of activities independent of serial number 6 - 35
Siemens AG SPR2-230.814.01 Page 35 of 42 SIREMOBIL Iso-C 3D
Medical Solutions Rev. 05 08.04 CS PS 24
Power cable, no. n.a., item number 31 00 281
• Connect the power cable to the PC (see Fig. 81).
• Connect the brown cable end to terminal 1 of terminal block X2 (siehe Fig. 82).
• Connect the blue cable end to terminal 2 of terminal block X2 (siehe Fig. 82).
• Connect the green/yellow cable end to the protective conductor bar (siehe Fig. 82).

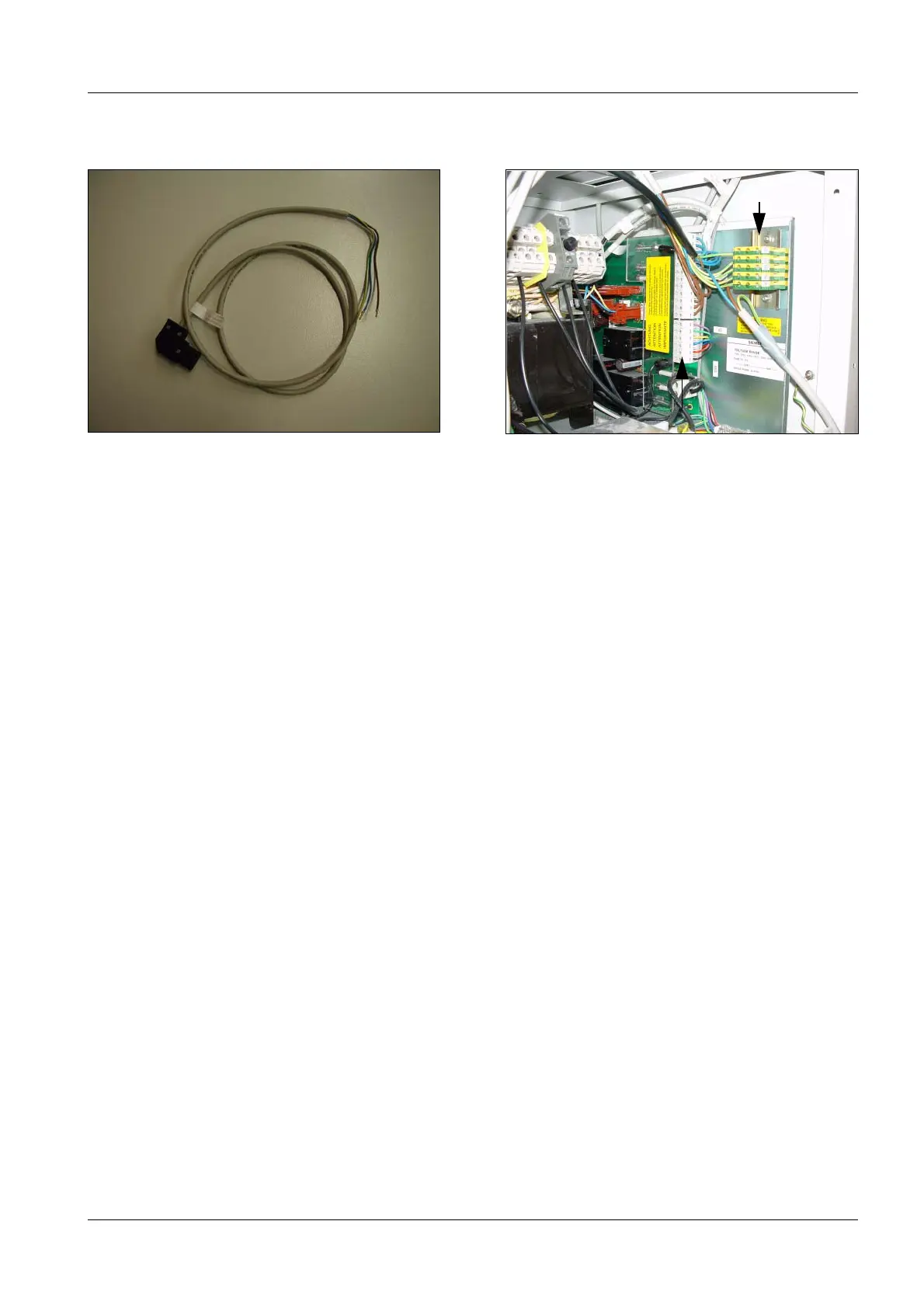

Fig. 82 Power cable Fig. 83 Terminal block X2
terminal block X2
protective conductor
connection
Markierung für Tastaturschublade
