Product description
4.2 Device versions
SIRIUS - SIRIUS 3RT Contactors/Contactor assemblies
54 Manual, 09/2017, A5E03656507120A/RS-AE/006
3RT26 capacitor contactors (size S2)
Coil terminal on the front
Location hole for surge suppression
Contactor's main circuit terminal to the load (T1, T2, T3)
Lateral auxiliary switch, left, with 2 auxiliary contacts
Contactor's main circuit terminal to the power network (L1, L2, L3)

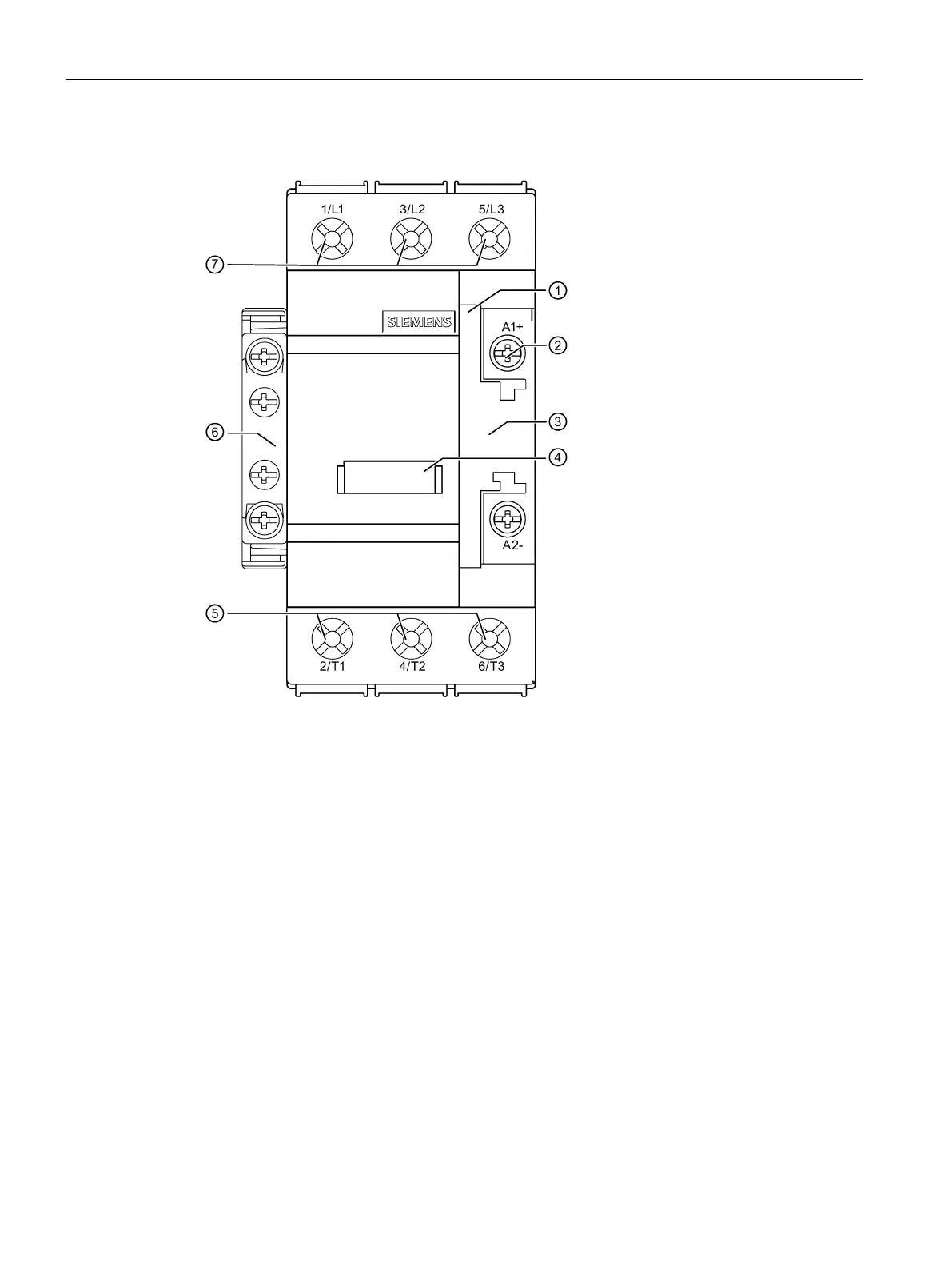

Figure 4-15 3RT263.-.....-.... capacitor contactor, size S2, overview
