Product description
4.2 Device versions
SIRIUS - SIRIUS 3RT Contactors/Contactor assemblies
Manual, 09/2017, A5E03656507120A/RS-AE/006
55
3RT26 capacitor contactors (size S3)
Contactor's main circuit terminal to the power network (L1, L2, L3)
Coil terminal on the front
Location hole for surge suppression
Contactor's main circuit terminal to the load (T1, T2, T3)
Lateral auxiliary switch, left, with 2 auxiliary contacts

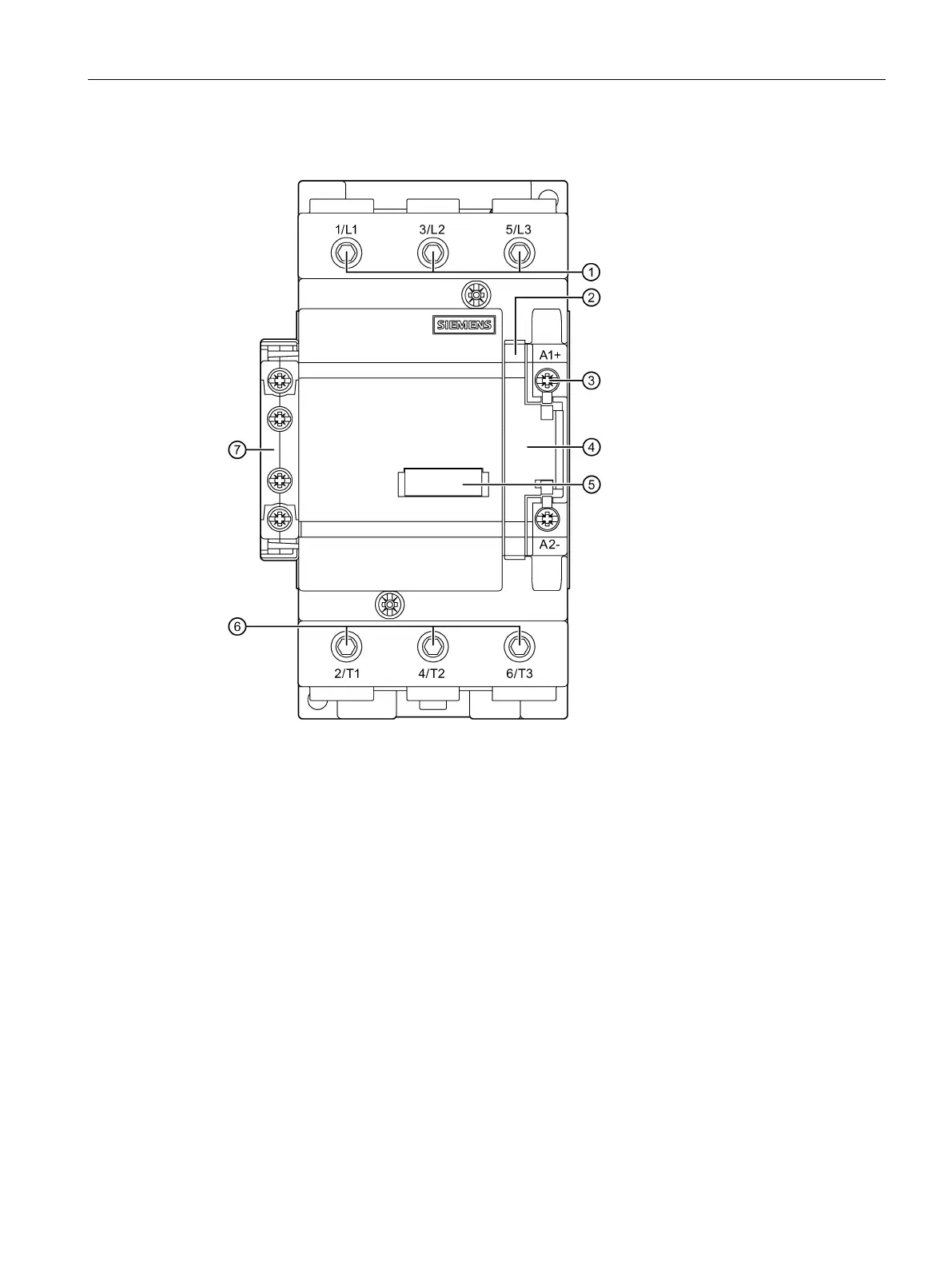

Figure 4-16 3RT264.-.....-.... capacitor contactor, size S3, overview
