4100ES-S1 Programming Guide Document: LT0400
Adding Addressable Devices
5-2
5.1 Adding devices to an SPS Addressable Loop
The 4100ES-S1 panel is supplied with one addressable loop. This loop is located on the SPS Power
Supply.
To add addressable devices to this loop using the programmer follow these steps.

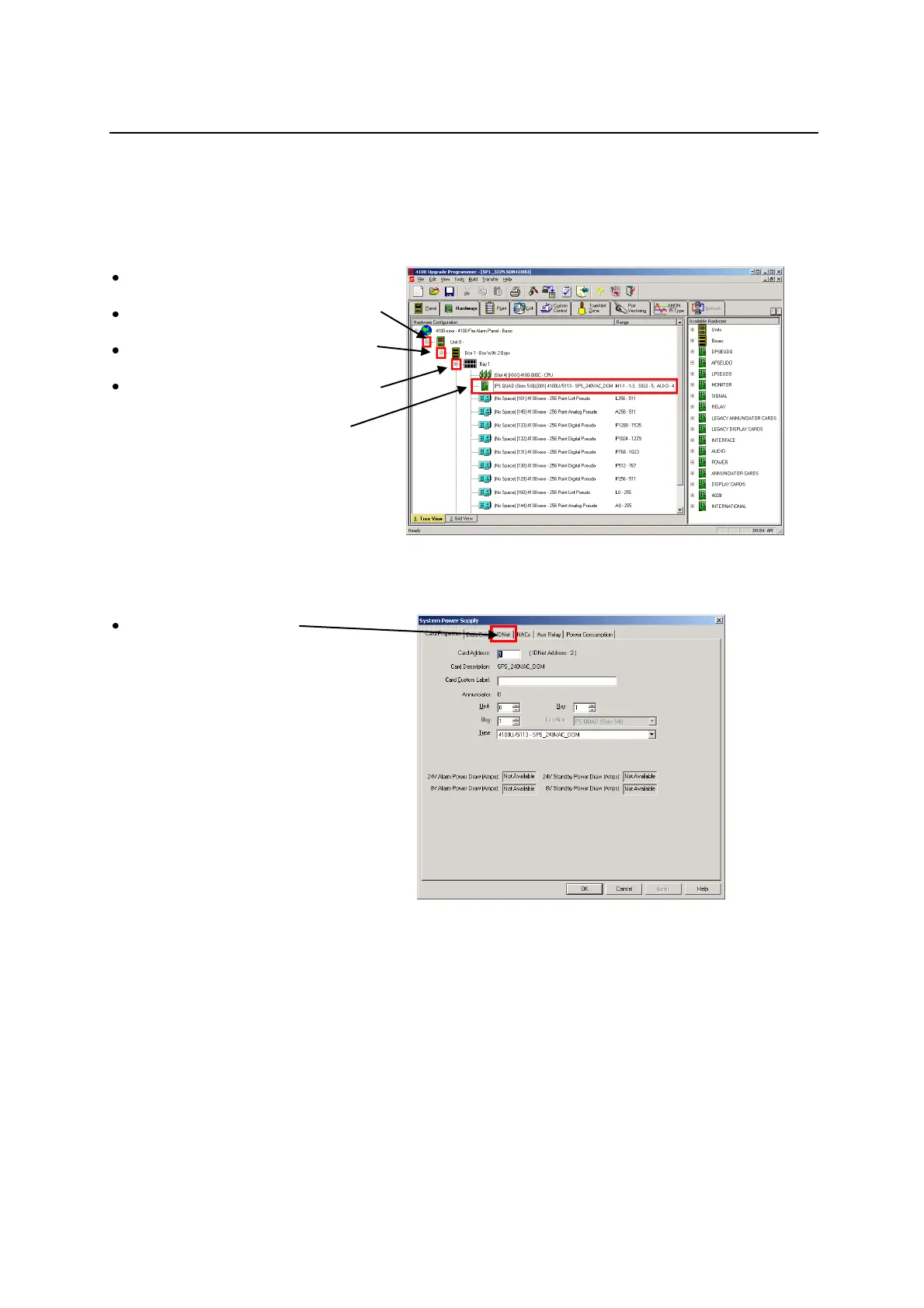

Select the HARDWARE Tab
Click on the “+” sign beside Unit 0
Click on the “+” sign beside Box 1
Click on the “+” sign beside Bay 1
Double click on the green card
beside the text:
“(PS QUAD (Slots 5-8))[001]
4100ES-S1/5113 –
SPS_240V_DOM M1-1 – 1-3, SIG3 –
5, AUX 3-4”
Note: Holding the PC Shift key down while clicking on a “+” sign will expand all items in that
section
Select the IDNET Tab
