Document: LT0400
4100ES-S1 Pro
gramming Guide
Adding Expansi
on Modules
8-
13
Click the
Port Data
…
button and s
elect the
desired
Device T
ype
as in the follo
wing
example for an 80 co
lumn CRT
output.
Click OK and again f
or the previous scr
een.
Repeat for
Port B
(
if used) and se
lect the
appropriate device t
ype and baud rate, etc.
Note: Onl
y Port A can be used for m
odems
or 2120 interface. Eith
er Port can be
used
for printers or term
inals
8.8.1
Typical Printer Configuration:
Depending on the
printer, the usual
settings a
re:
Devi
ce type
PRT80U
Baud rate
9600
Parity
None
Data bits
8
Stop bi
ts
1
4100E
S
-
S1
Printer

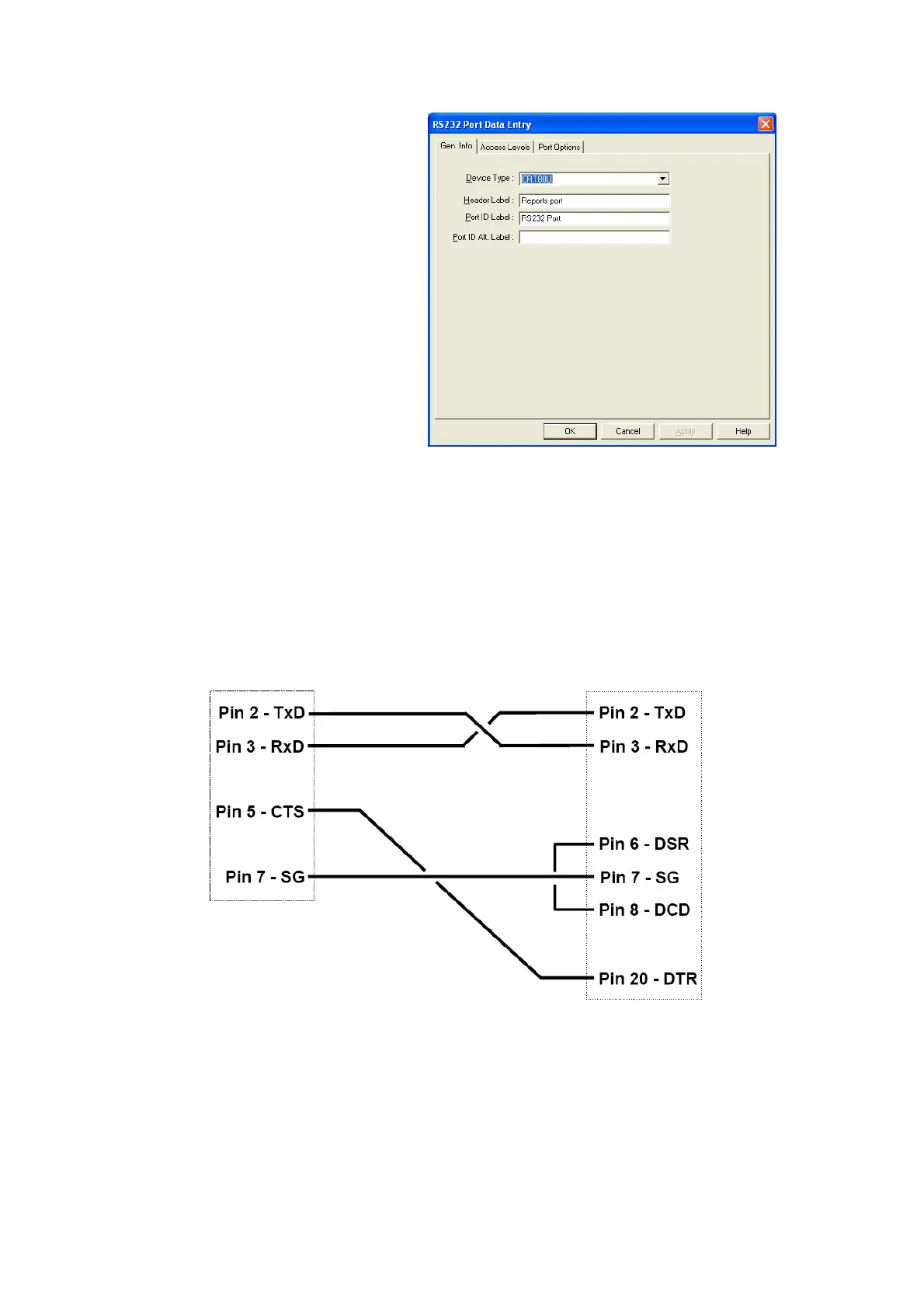

Printer Cable Con
nection
s
4100ES-
S1
58
60
