Document: LT0400 4100ES-S1 Programming Guide
Custom Control
9.3.2 Add Input Statements
The second step in creating a new Custom Control equation is to add input statements to
the equation. Repeat the steps in this section until all input statements in the equation have
been defined.

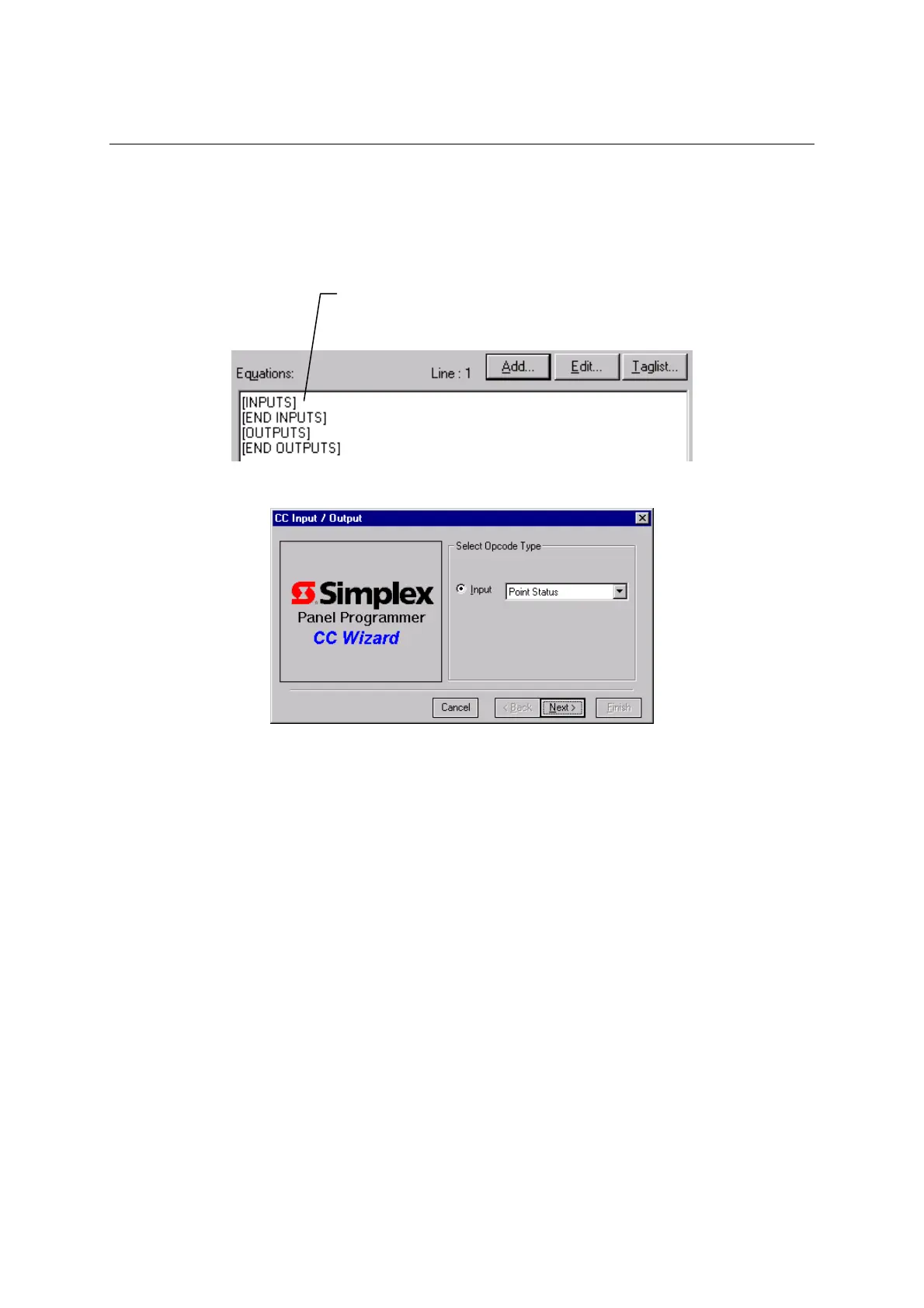

1. In the Equations box, position the cursor just to the right of [INPUTS].
2. Click on the Add button. The dialog shown below appears.
3. Click on the drop down list box, select one of the Opcodes, and click the Next button.
4. The next dialogs displayed by the wizard depend on the Opcode you selected in Step 3.
5. The Finish button becomes available when all dialogs related to the input opcode have
appeared. Click it to finish defining the input statement.
