4100ES-S1 Programming Guide Document: LT0400
Adding Expansion Modules
8-8

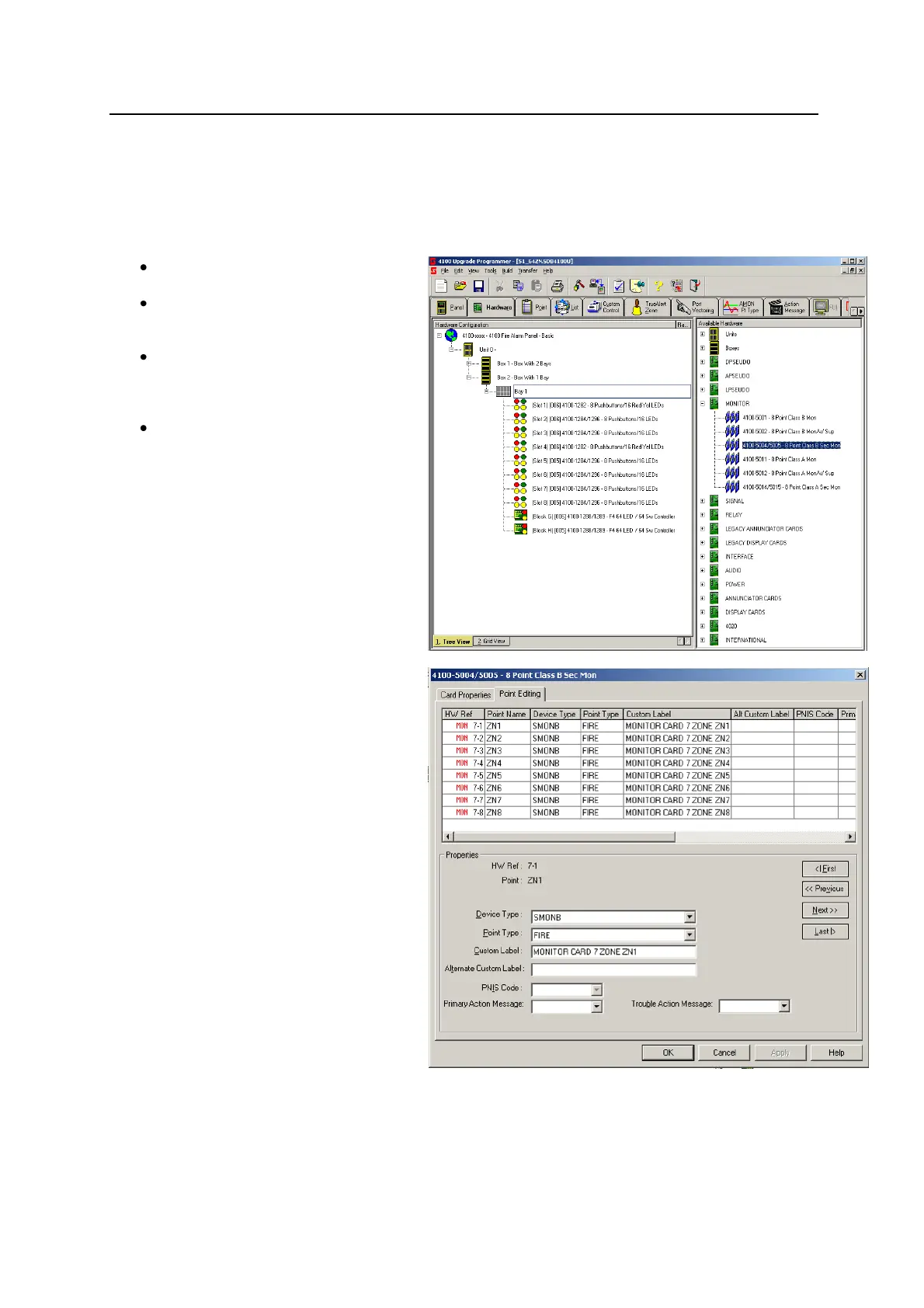

8.4 Adding 4100-5004 8 Point Monitor Card
The 4100-5004 8 Point Monitor Card provides eight conventional detector or contact closure
inputs. There are no restrictions on point types.
To add the 4100-5004 8 Point Monitor Card to the panel:
Select the HARDWARE Tab
Expand the Unit 0, ‘Box 1’ and
‘Bay 2’.
Click on the “+” sign beside the
MONITOR option on the Available
Hardware window.
Drag and drop the 4100-5004/5005
8 Point Class B Sec Monitor Icon
over to the Bay 2 icon.
The card will be added to the panel
configuration.
Double click on the card and in the
Properties Tab, select the card’s address
and enter in the Card Custom Label: text
box, a descriptive label.
Click the Point Editing tab and add/edit
the points’ point types and names. Record
the points’ names as they may be used
within user defined Custom Control
equations as in the following example for
ZN1 and SIG9.
When ZN1 (this point) is in ALARM,
operate SIG9.
[INPUTS]
STATUS FIRE
ZN1 | SMONB | FIRE | MONITOR CARD 7
ZONE ZN1
[END INPUTS]
[OUTPUTS]
TRACK ON PRI=9,9
SIG9 | SIGB | SSIGNAL | SIGNAL CARD 5
CIRCUIT SIG9
[END OUTPUTS]
