4100ES-S1 Programming Guide Document: LT0400
Adding Expansion Modules
8-12
8.8 Adding 4100-0113 RS-232/2120 Interface Module
The 4100-0113 RS-232/2120 Interface Module provides two RS-232-C outputs (Port A and
Port B) that can be configured for remote printers, CRT, or as a Computer Port for
communications to a remote system (e.g., BMS Systems).

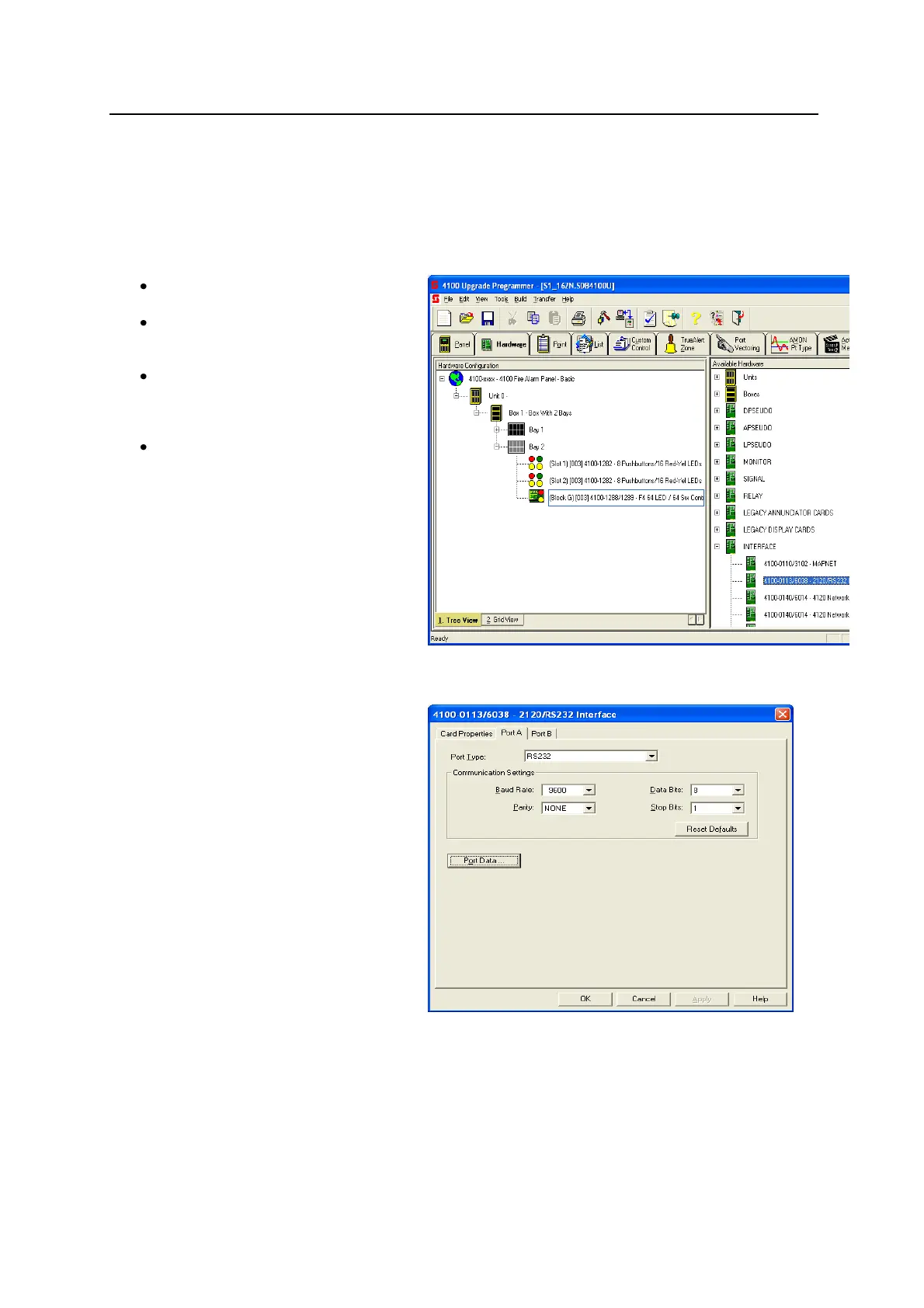

To add the 4100-0113 RS-232/2120 Interface Module to the panel:
Select the HARDWARE Tab.
Expand the Unit 0, ‘Box 1’ and ‘Bay
2’.
Click on the “+” sign beside the
INTERFACE option on the
Available Hardware window.
Drag and drop the 4100-0113 RS-
232/2120 Interface Icon over to the
Bay 2 icon.
The card will be added to the panel
configuration.
Double click on the card and in the
Properties Tab adjust its address to be
greater than 4, then enter in the Card
Custom Label: text box, a descriptive
label.
Set the Ports as in the following example
for RS232 connection to PC (used for
generating printed reports). Adjust the
baud rate, etc, if needed.
