Document: LT0400 4100ES-S1 Programming Guide
Adding Expansion Modules
8.5 Adding 4100-3003 8 Aux Relay Card
The 4100-3003 8 Aux Relay Card provides eight Single Pole Changeover relays and 8
contact closure inputs (Feedback points).
To add the 4100-3003 8 Aux Relay Card to the panel:

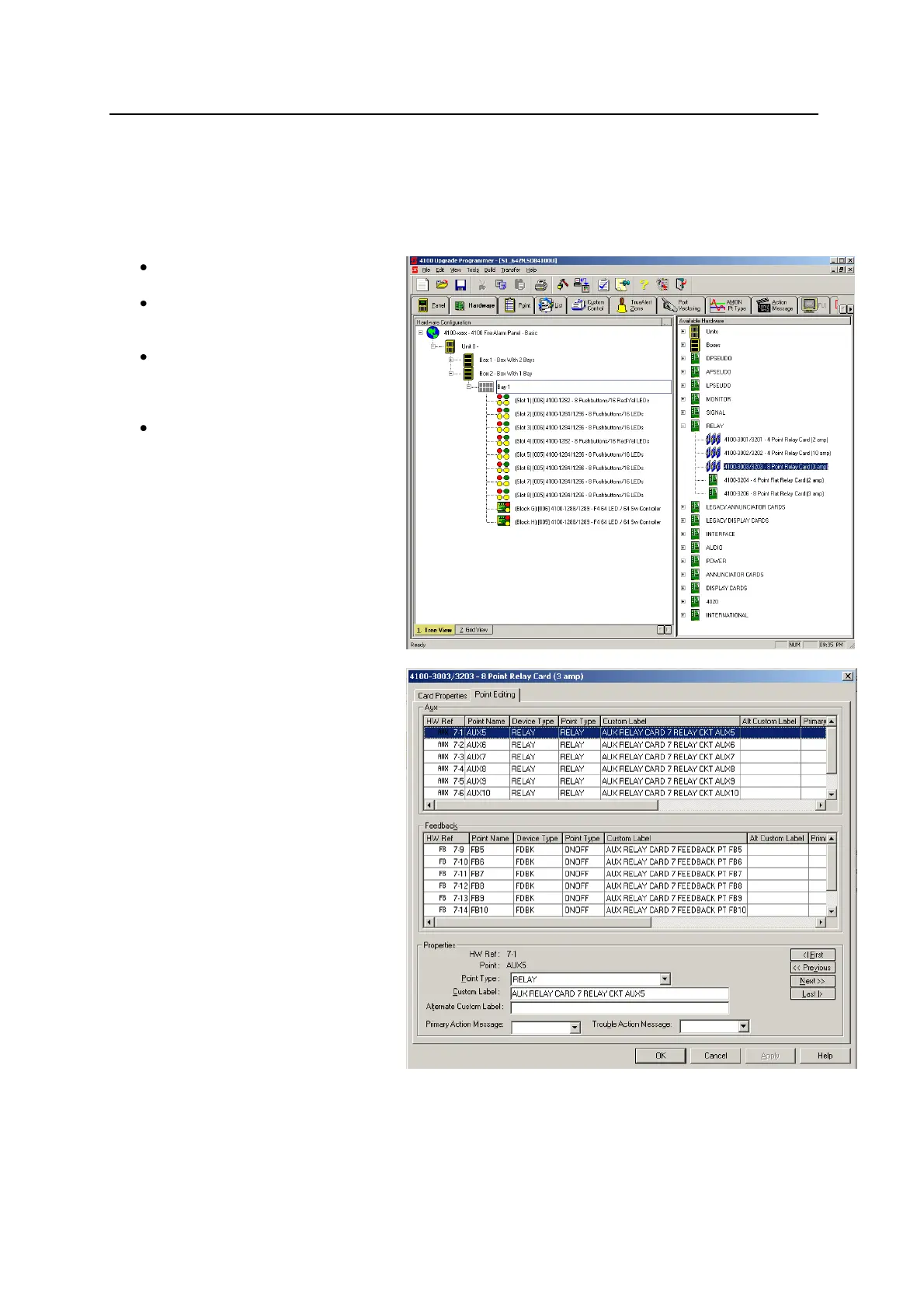

Select the HARDWARE Tab.
Expand the Unit 0, ‘Box 1’ and
‘Bay 2’.
Click on the “+” sign beside the
RELAY option on the Available
Hardware window.
Drag and drop the 4100-
3003/3203 8 Point Relay Card
Icon over to the Bay 2 icon.
The card will be added to the panel
configuration.
Double click on the card and in the
Properties Tab, select the card’s
address and enter in the Card Custom
Label: text box, a descriptive label.
Click the Point Editing tab and add/edit
the points’ device types, point types and
names. Record the point addresses, as
they are used within user defined
Custom Control equations.
