4100ES-S1 Programming Guide Document: LT0400
Adding Expansion Modules
8-6
8.3 Adding 4100-4321 6 Supervised Signal Card
The 4100-4321K 6 Supervised Relay module provides 6 supervised output control (signal)
circuits. The 6 circuits have two power inputs: one power input for every three signal circuits.
Each of the signal circuits is supervised for ground faults, opens and line-to-line shorts.
The card is added as follows:

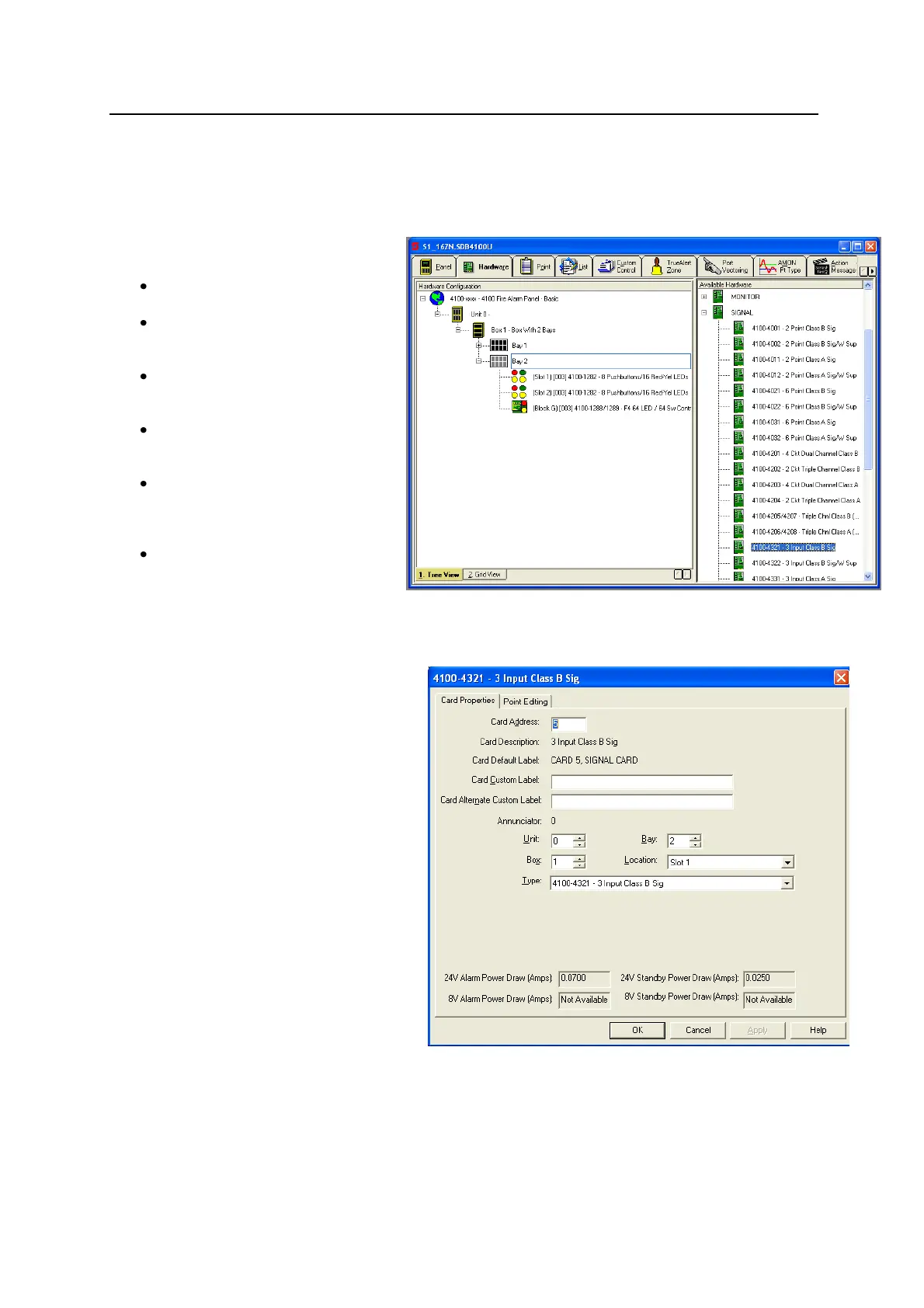

Select the HARDWARE Tab.
Click on the “+” sign beside
Unit 0.
Click on the “+” sign beside Box
1.
Click on the “+” sign beside Bay
2.
Click on the “+” sign beside the
SIGNAL option on the
Available Hardware window.
Drag and drop the 4100-4321- 3
Input Class B Sig Icon over to
the Bay 2 icon.
The card will be added to the panel configuration.
Double click on the card and in the Card
Properties tab adjust its address to be
greater than 4, then in the ‘Card Custom
Label:’ text box, enter a descriptive label.
