4100ES-S1 Programming Guide Document: LT0400
AS1668 Fan Controls
10-6
10.4 AS1668 Fan Control Card Programming
The 4100ES-S1 can be installed with an ME0456 AS1668 fan control module which is
programmed as a 4100-1282 8 Button and 16 LED module.
Follow the 4100-1282 programming as described in Section 7.3, except for the Point
Editing tab which differs from the standard zone programming and is described here.

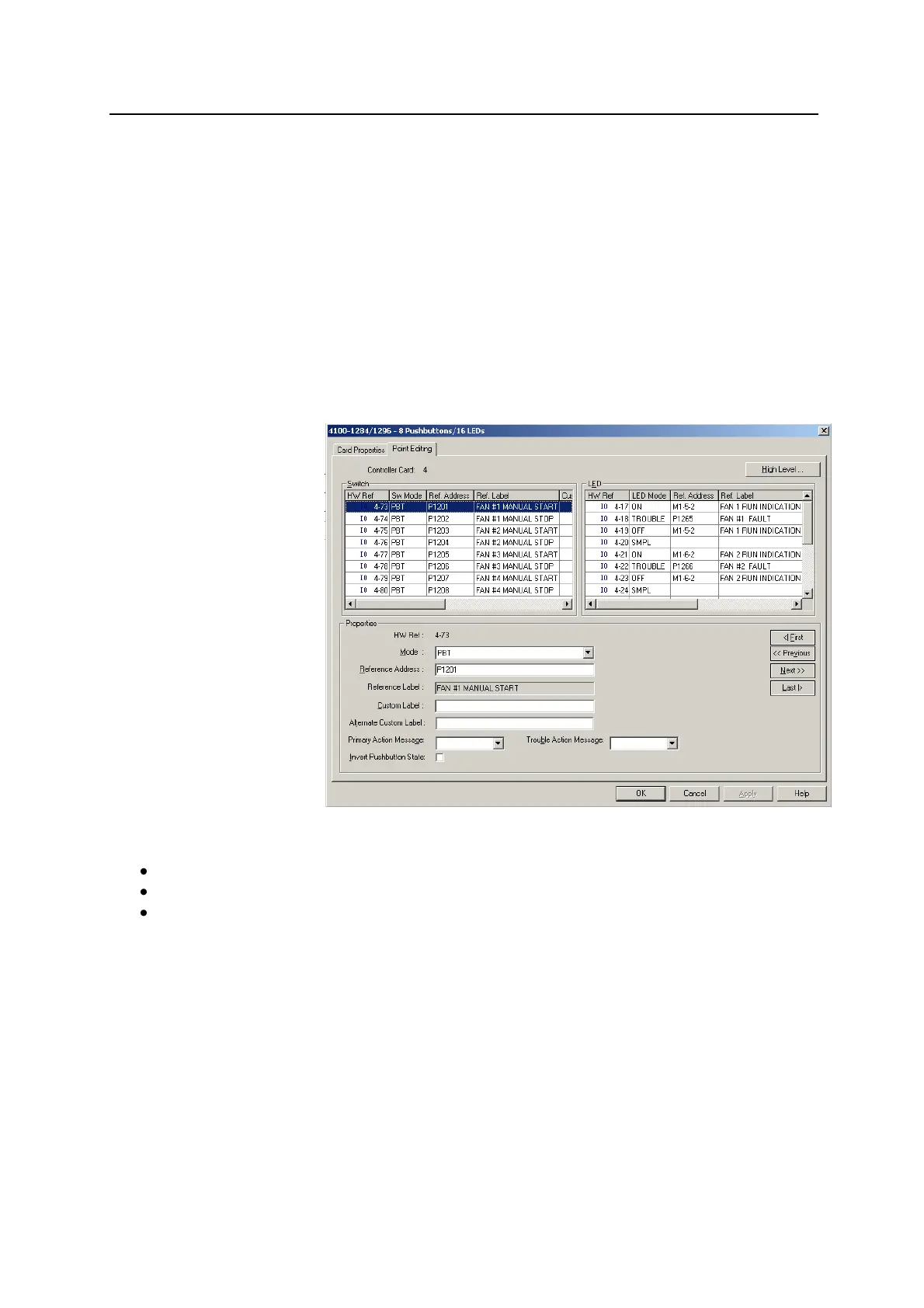

10.4.1 Switch Configuration
The Switch configuration couples each of the fan’s rotary switch states to a pseudo point
that reflects the current fan state. The fan’s pseudo points definition is built-in as part of the
configuration template. These pseudo points can be monitored via the panel’s display
screen and referred to from the online executable via Custom Controls.
Each fan uses two
Switch entries with a
pseudo point for each
entry that is set whenever
the entry state is reached:
1. In ‘Manual Start’
state –The
‘Manual Start’
pseudo point is set
and the ‘Manual
Stop’ pseudo point
is cleared.
2. In ‘Manual Stop’
state –The
‘Manual Stop’
pseudo point is set
and the ‘Manual
Start’ pseudo point
is cleared.
When in ‘Auto’
position both the
‘Manual Start’ and the ‘Manual Stop’ pseudo points are cleared.
In the Mode box select ‘PBT’.
In the Reference Address text box enter the matching pseudo point (P1201 - P1264).
Highlight the next line to configure the next entry with the adjacent pseudo point.
