Adding Expansion Modules
Before any devices can be added to the panel’s configuration the new 4100-3101 card must
be added as follows:

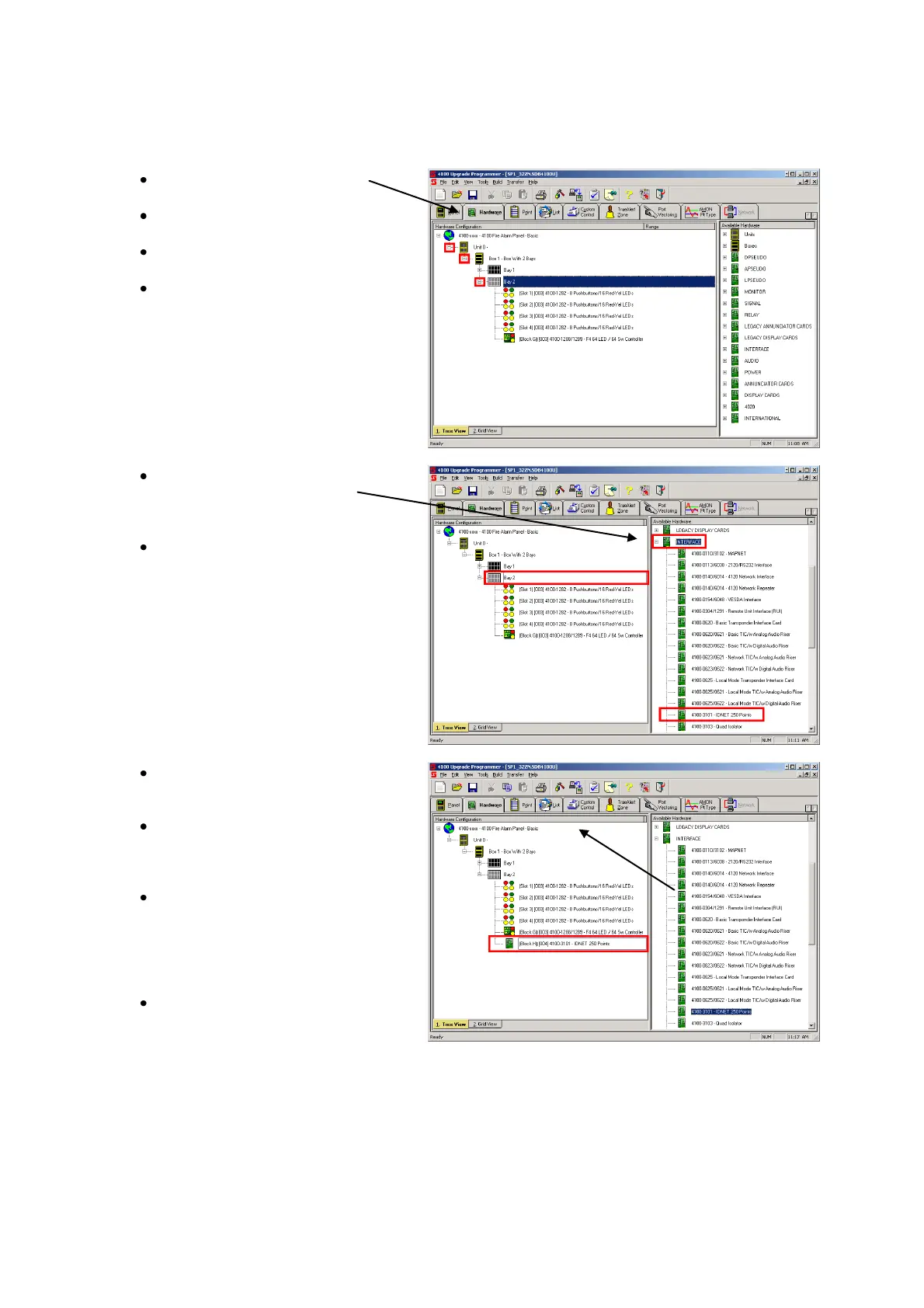

Select the HARDWARE Tab
Click on the “+” sign beside Unit 0.
Click on the “+” sign beside Box 1.
Click on the “+” sign beside Bay 2.
Click on the “+” sign beside the
INTERFACE option on the
Available Hardware window.
Drag and drop the 4100-3101 –
IDNET 250 Points (or the 4100-
3107 IDNet+ 250 Points)
icon on to the Bay 2 icon.
An IDNET card will be added to the
panel configuration.
Block H represents the location in
the bay, but this is not relevant for
the 4100ES-S1.
[004] is the address of the card
and MUST match the physical
address on the IDNET module.
WARNING: Use Address 5 or
higher.
4100-3101-IDNET 250 Points is
the type of the card.
Now that the new IDNet card has been added, the addressable devices connected to this card can be
added to the panel configuration as follows:
