3. At the Unit Restart Window, press Restart and the NPU is restarted.
The Network Diagnostics function provides useful diagnostic information such
as the Network Topology Report and the Network Attendance Report. This
information can show a network problem in one glance. To run the Network
Diagnostics do the following:
1. At the Service Menu (Figure 3-21), press Net Diagnostics.
2. After you press Net Diagnostics, the Network Topology Window
(Figure 3-25) is displayed.

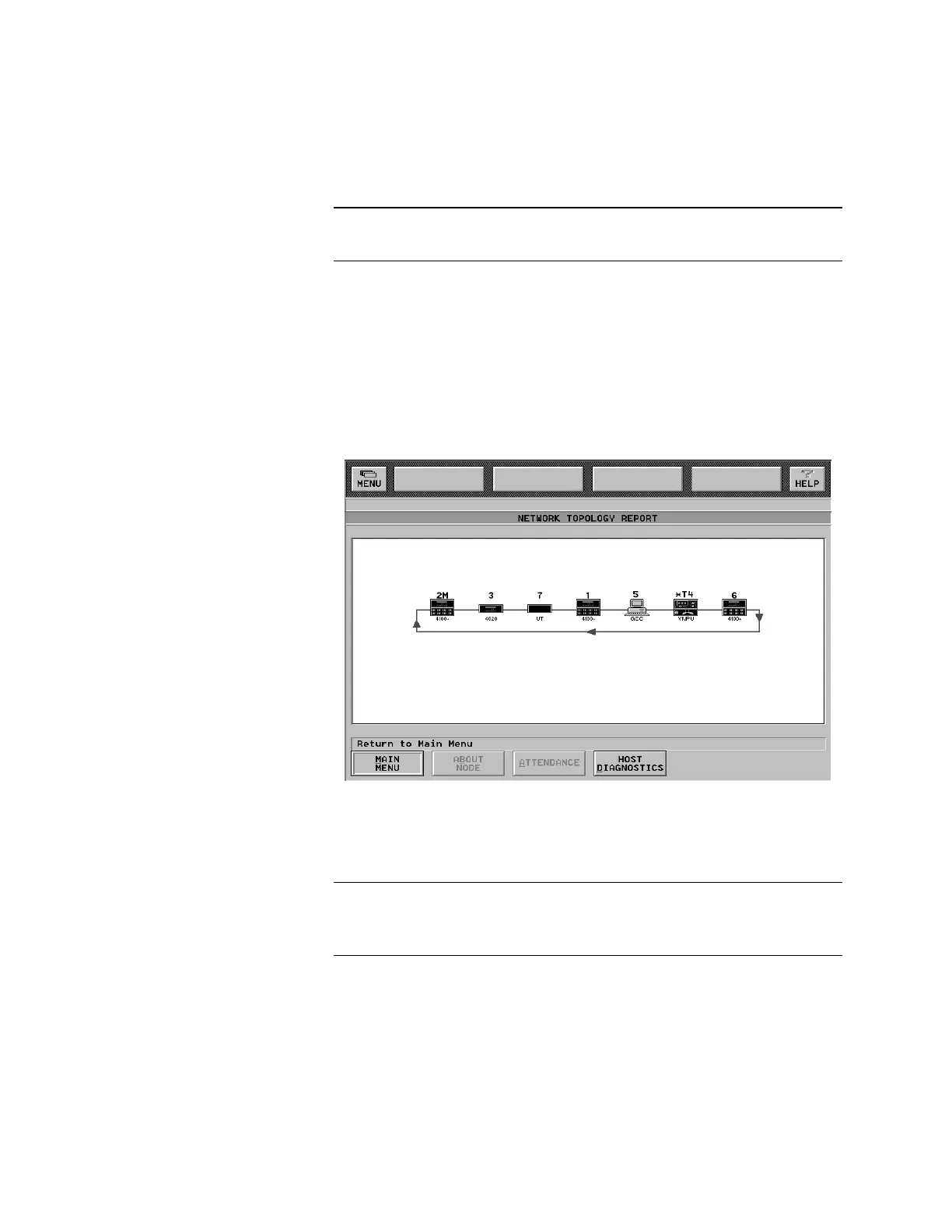

Figure 3-25. Network Topology Report Window
3. This window shows the nodes that make up the network and shows the
physical connections between them.
To see which nodes are in attendance, press Attendance and the network
Attendance Report Window (Figure 3-26) is displayed.
Continued on next page
Servicing the System, Continued
Restarting the Unit (Continued)
Running Network Diagnostics
Viewing Network Attendance
To Next Page
