3-56
The Select Network Loop Window is displayed.

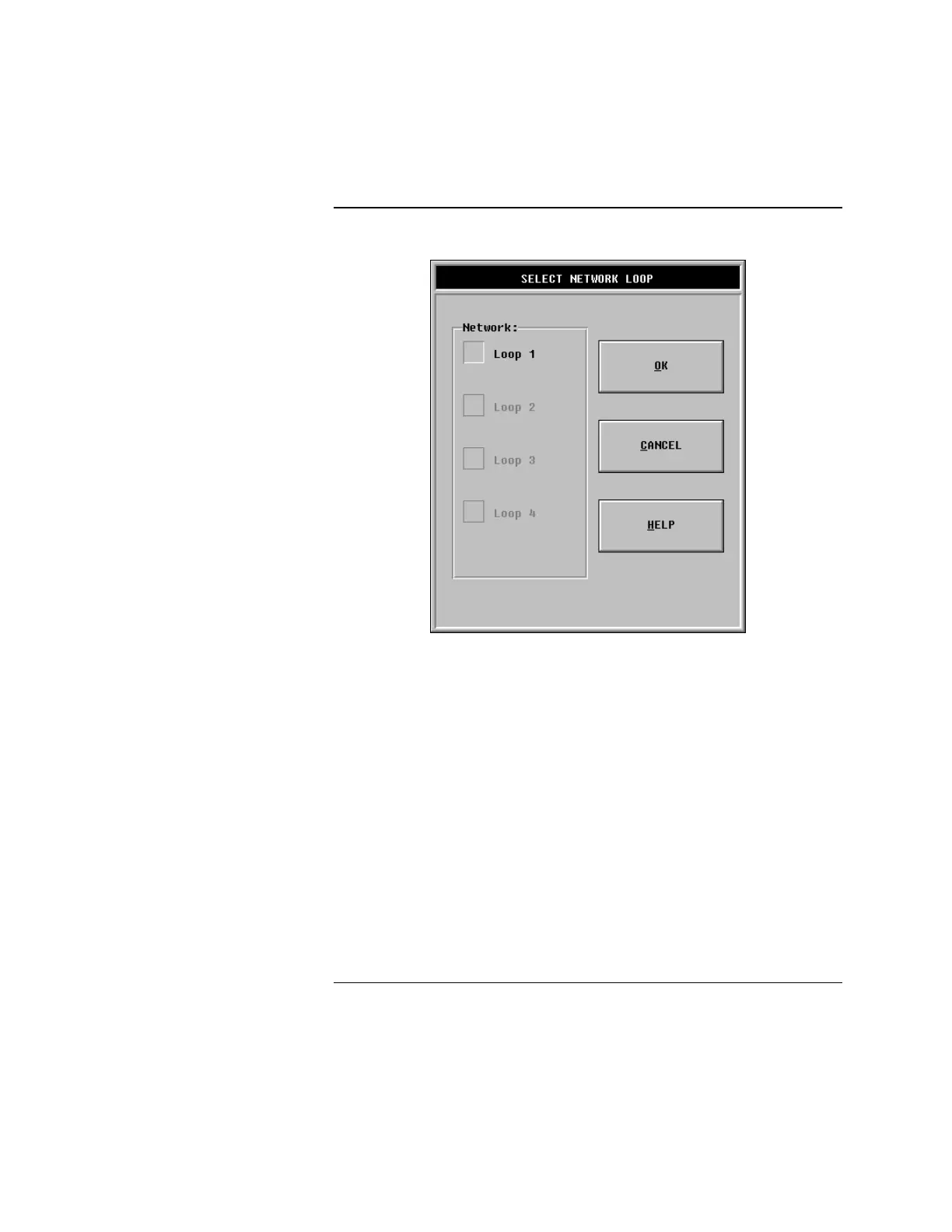

Figure 3-60. Select Network Loop Window
5. Press the loop you want to select.
An X appears in the box to the left of the selected loop.
6. Press OK.
7. Press on the point you want to select.
8. Press Change Status on the left side of the screen.
The Point Status Display Window is shown.
9. Press Control.
The Point Status Display Window changes to show State Selection Categories
and a Priority Selection Window.
Continued on next page
Operating the Simulator, Continued
Activating the Simulator
(Continued)
