EA180 Servo Drive Manual
2
Chapter 1 Product information
1.1 EA180 servo drive

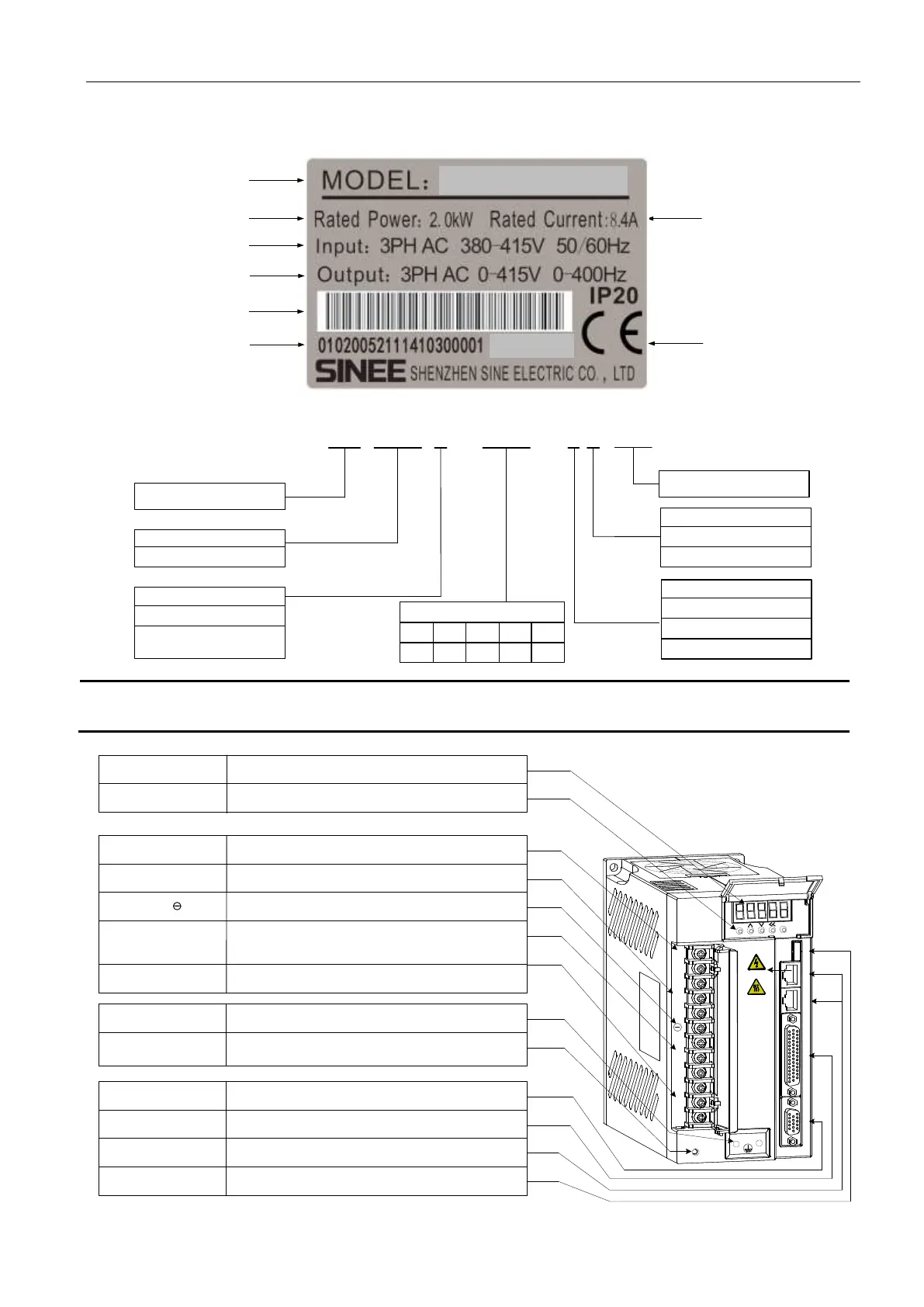

1.1.1 Description of the nameplate
Model
Applicable motor size
Mains supply
Output
Barcode
S/N
Rated output current
EA180-8R4-3A
XXXXXX
Software version
1.1.2 Model Description
EA 180 E–8R4–3B-XX
EA：Servo drive
Product series
180：180 series
Interface
None：Analog pulse
C: Canopen
E：EtherCAT
Rated Output Current
1R6
1.6A
2R8
2.8A
5R5
5.5A


026
26A
Special Version
Encoder Type
A：Pulse incremental
B：Serial communi.
Mains Supply
1：1 phase 220V
2：1 or 3 phase 220V
3：3 phase 380V
Note: 1):AC220V voltage class, 7.6A and below products, suitable for single-phase and three-phase AC220V power supply, so there
is no special single-phase 220V products.
2): AC220V voltage class, 10A and above products, only to adapt to three-phase AC220V power supply varieties.
1.1.3 Servo drive part name
L1C
L2C
L1
L2
L3
P+
D
C
U
V
W
CN1CN2CN3CN4CN5
SET
MOD
Display
Buttons
CHARGE
Bus volt.state
L1C、L2C
Control Circuit Supply
L1、L2、L3
Mains Supply
P+、
P+、D、C
External
Braking Resistor
CN5
Encoder Port
PE
5-bit 7-segment LED displays running state
Parameters setting
Show if the DC bus is in charging state, when the light is ON,even if
the mains supply is cut, the capacitor inside the drive is electrified.
Refer to the nameplate
Refer to the nameplate
DC bus voltage terminal,for DC bus sharing
Defaulted short-cut between P+ and D, when using external braking
resistor, remove the short-cut plate, open circuit in between P+ And D,
connect external braking resistor in between P+ And C.
To servo motor U、V、W
Connected to the encoder of the servo motor
Power and servo motor ground
Connected to upper computer
CN4
Control Terminal
CN2、CN3
Communi.Port
Two in parallel connection,
include RS232、RS485、CAN interface
CN1 Analog
Monitoring Port
Two analog output
U、V、W
Servo motor
CHARGE
